Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

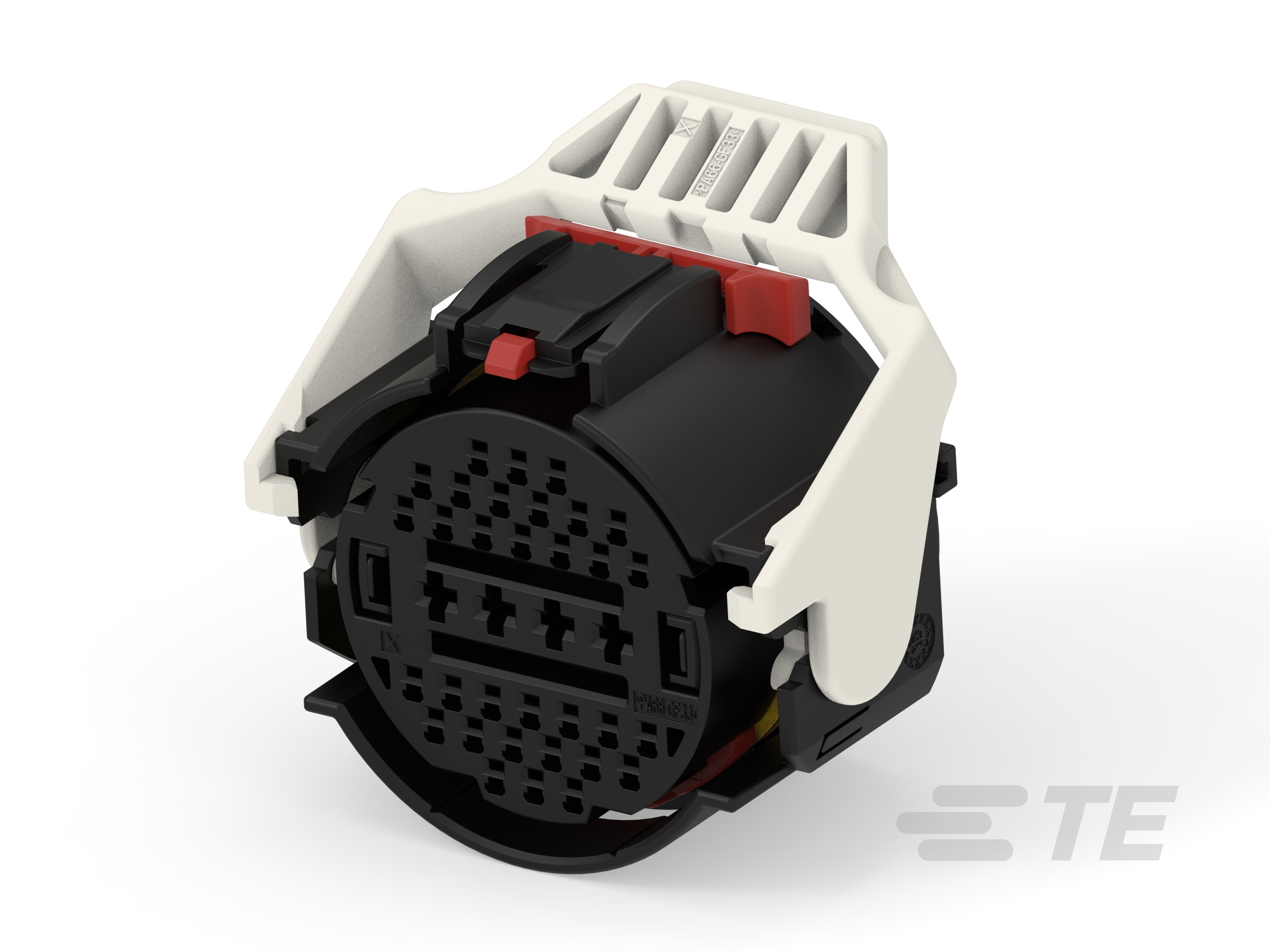

• Connector Shape : Circular

• Mixed & Hybrid Connector : Yes

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Blank Cavity Position : 15, 16, 17, 2, 20, 33, 36, 8, 9

• Number of Positions : 36

• Number of Rows : 7

• Cable Exit Angle : 90°

• Primary Product Color : Black

• Connector & Keying Code : A

• Contact Type : Receptacle

• Contact Size : 1.2mm, 2.8mm

• Mating Tab Width (mm): 1.2, 2.8

• Mating Tab Width (in): .05, .11

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : No

• Strain Relief : With

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Housing Material : PA 46 GF30

• Centerline (Pitch) (mm): 4, 6

• Centerline (Pitch) (in): .16, .23

• Connector Height : 63.8 mm [ 2.512 in ]

• Product Length : 54.4 mm [ 2.14 in ]

• Product Width : 63.8 mm [ 2.512 in ]

• Row-to-Row Spacing : 3.5 mm [ .13 in ]

• Circuit Application : Power

• Packaging Method : Bulk

• Packaging Quantity : 1
