2133857-1

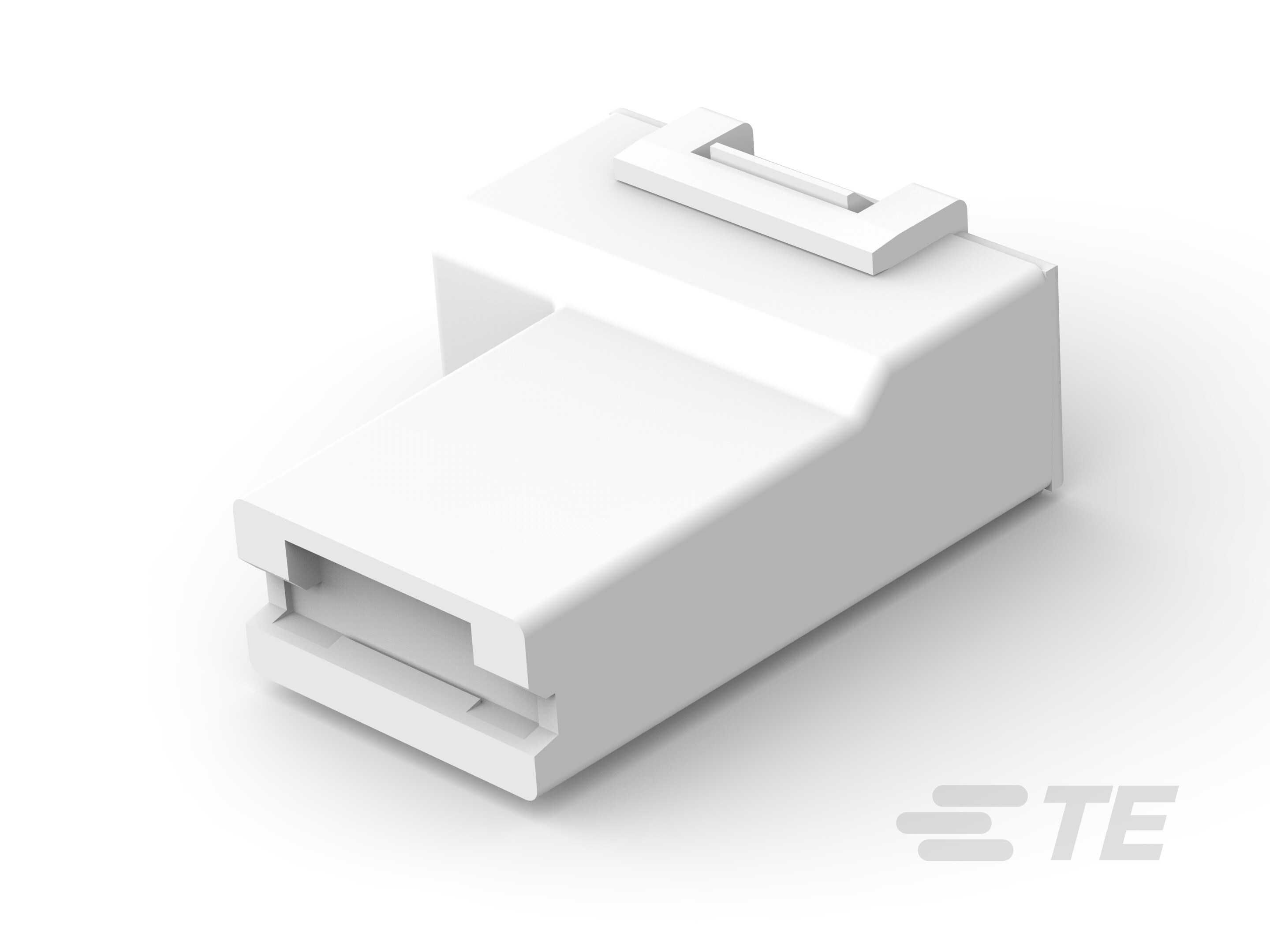

Receptacle, Receptacle, 1 Position, Flag, UL 94V-2, Natural, Polyamide, Cable Mount (Free-Hanging), Carton, FASTON 250, Crimp Terminal Housings
2133857-1
Receptacle, Receptacle, 1 Position, Flag, UL 94V-2, Natural, Polyamide, Cable Mount (Free-Hanging), Carton, FASTON 250, Crimp Terminal Housings
-
- FASTON
- FASTON 250
- TE Internal #: 2133857-1
- TE Internal Description: 250 FASTON HSG.,FLAG,REC.,1 POS,NATRUAL
-
Terminal Type : Receptacle
-
Connector & Housing Type : Receptacle
-
Number of Positions : 1
-
Terminal Orientation : Flag
-
UL Flammability Rating : UL 94V-2
Documents
Product Drawings
- HSG. FLAG .250 SRS. FASTON REC. ENG_CD_2133857_F1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2133857-1_F.pdf 3D
- Customer View Model ENG_CVM_CVM_2133857-1_F.2d_dxf.zip English
- ENG_CVM_CVM_2133857-1_F.3d_igs.zip English
- ENG_CVM_CVM_2133857-1_F.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-37101_B.pdf English
- Qualification Test Report ENG_SS_501-37020_B.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E28476_19950501_C1_U11.pdf English
