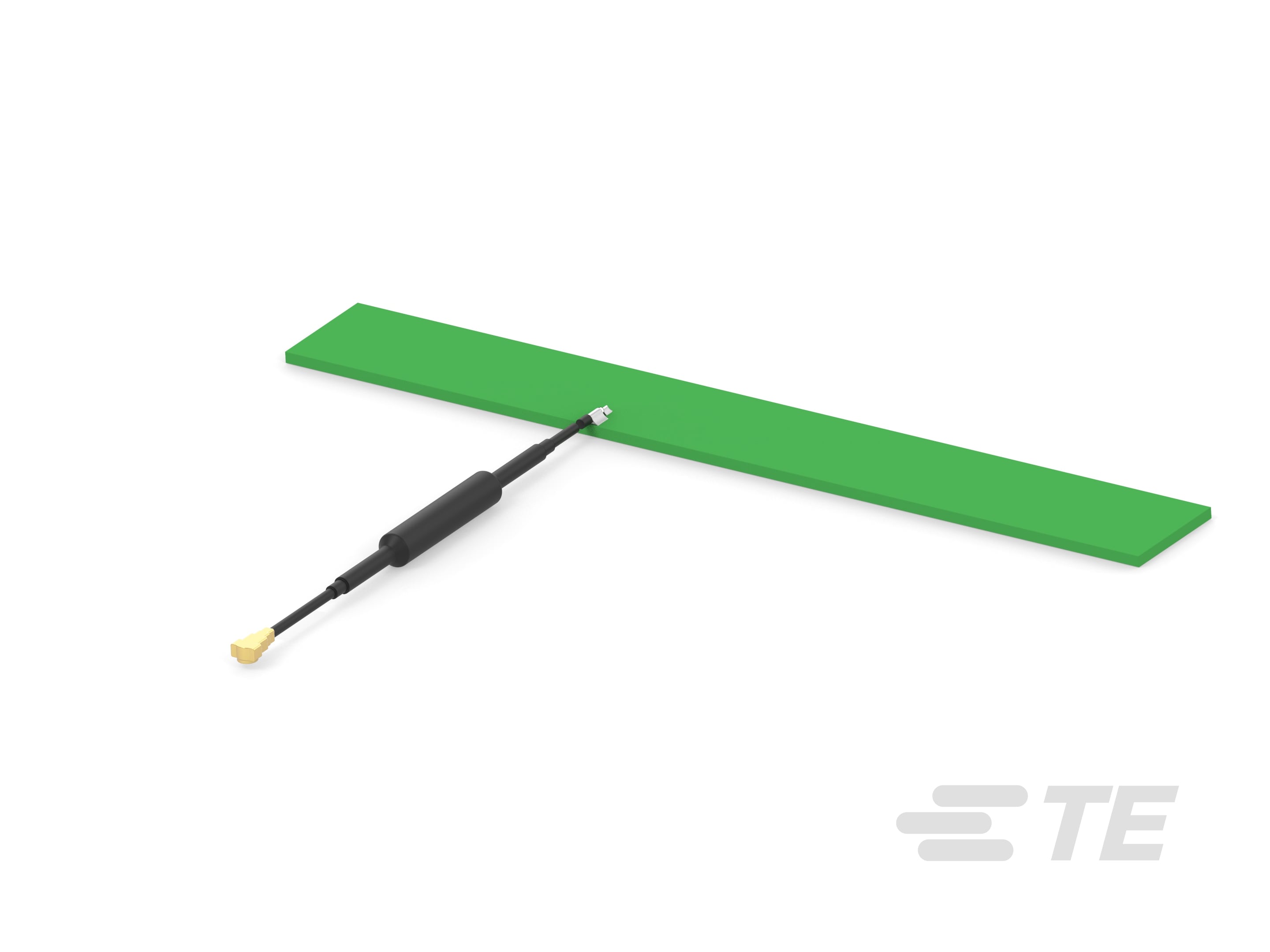

PCB Antenna, Multi Band, Cat-M/NB-IoT / Cellular / Wi-Fi, Internal/Embedded Mount, Adhesive Mount, MHF / MHF1 / U.FL, Omnidirectional
2118308-8
PCB Antenna, Multi Band, Cat-M/NB-IoT / Cellular / Wi-Fi, Internal/Embedded Mount, Adhesive Mount, MHF / MHF1 / U.FL, Omnidirectional
- TE Internal #: 2118308-8
- TE Internal Description: 4G WORLD BAND, METASPAN, PCB ANT, 290MM
-
Antenna Type : PCB
-
Band Type : Multi Band
-
Primary Application : Cat-M/NB-IoT, Cellular, Wi-Fi
-
Wireless Application : Bluetooth, Cat-M/NB-IoT, Cellular, Wi-Fi
-
Mounting Location : Internal/Embedded
Documents
Product Drawings
- 4 G WORLD BAND MetaSpan CABLED PCB GP INDEPENDENT ENG_CD_2118308_G.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2118308-8_E.pdf 3D
- Customer View Model ENG_CVM_CVM_2118308-8_E.2d_dxf.zip English
- ENG_CVM_CVM_2118308-8_E.3d_igs.zip English
- ENG_CVM_CVM_2118308-8_E.3d_stp.zip English
Datasheets & Catalog Pages
- 2118308-X Antennas Application Notes ENG_DS_2118308-X_A.pdf English
- Antenna Data Sheet 698-960, 1710-2170 & 2300-2700 MHz LTE/Cell Band Antenna ENG_DS_2118308-1_A1_2118308-1.pdf English
Product Specifications
- Product Specification ENG_SS_108-61449_A.pdf English
