2035334-4

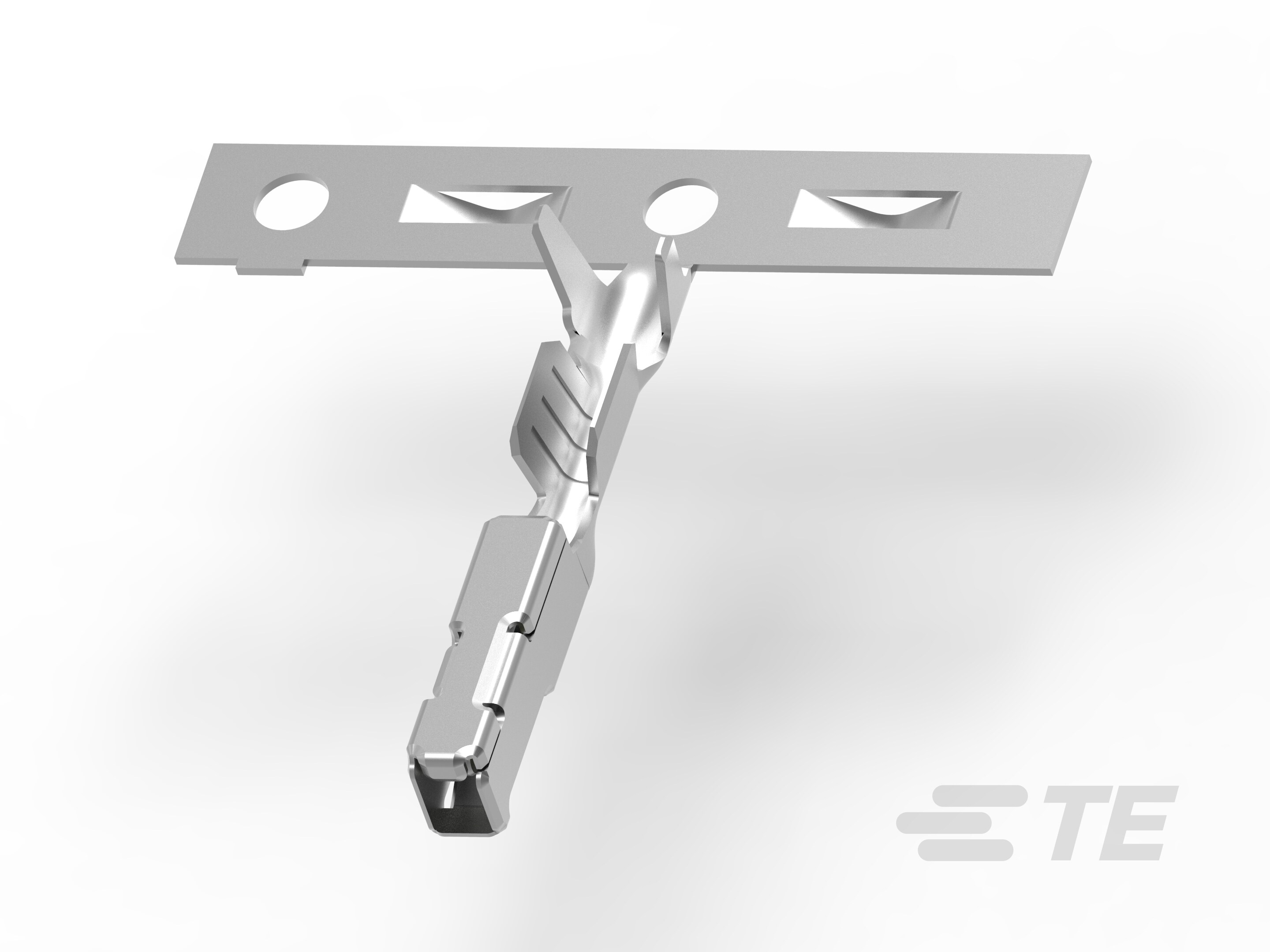

Receptacle Terminal, 18 AWG, .75 mm² Wire, .8 mm [.031 in] Tab Width, Tin (Sn), Sealable, Generation Y Connector System
2035334-4
Receptacle Terminal, 18 AWG, .75 mm² Wire, .8 mm [.031 in] Tab Width, Tin (Sn), Sealable, Generation Y Connector System
-
- Generation Y Connector System
- TE Internal #: 2035334-4
- TE Internal Description: Contact,female0.64, 18 AWG
-
Terminal Type : Receptacle
-
Wire Size (AWG): 18
-
Wire Size (mm²): .75
-
Mating Tab Width : .8 mm [ .031 in ]
-
Interface Plating : Tin (Sn)
Documents
Product Drawings
- CONTACT, FEMALE, 0.64, GENERATION Y SEALED APPLICATIONS ENG_CD_2035334_C.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2035334-4_D.pdf 3D
- Customer View Model ENG_CVM_CVM_2035334-4_D.2d_dxf.zip English
- ENG_CVM_CVM_2035334-4_D.3d_igs.zip English
- ENG_CVM_CVM_2035334-4_D.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-13183_U.pdf English
- Product Specification ENG_SS_108-2296_C.pdf English
- Qualification Test Report ENG_SS_501-657_B.pdf English
