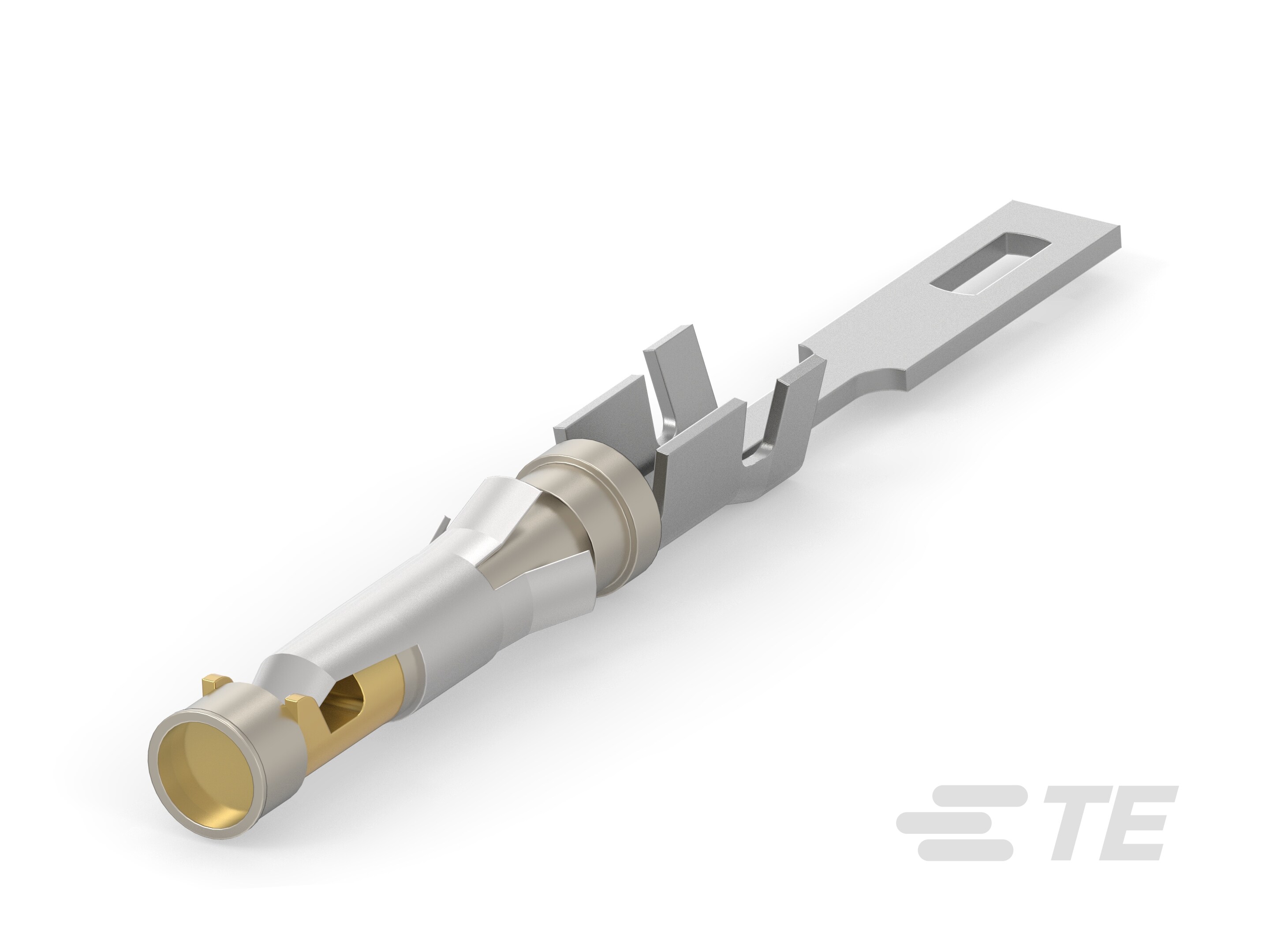

Socket Contact, Gold (Au), Size 16 Contact Size, Solder Tab, Brass, Power & Signal, -55 – 150 °C [-67 – 302 °F], AMP Type III+
202237-1
Socket Contact, Gold (Au), Size 16 Contact Size, Solder Tab, Brass, Power & Signal, -55 – 150 °C [-67 – 302 °F], AMP Type III+
-
- AMP
- Circular Plastic Connectors Series 1 ,
- AMP Type III+
- TE Internal #: 202237-1
- TE Internal Description: III+ SOC,SOLTAB,30AU,10AU FLASH,LP
- Alias #: 2011761
-
Contact Type : Socket
-
Contact Mating Area Plating Material : Gold (Au)
-
Wire Contact Termination Area Plating Material : Tin-Lead
-
Contact Retention Within Housing : With
-
Contact Size : Size 16
