2007668-1

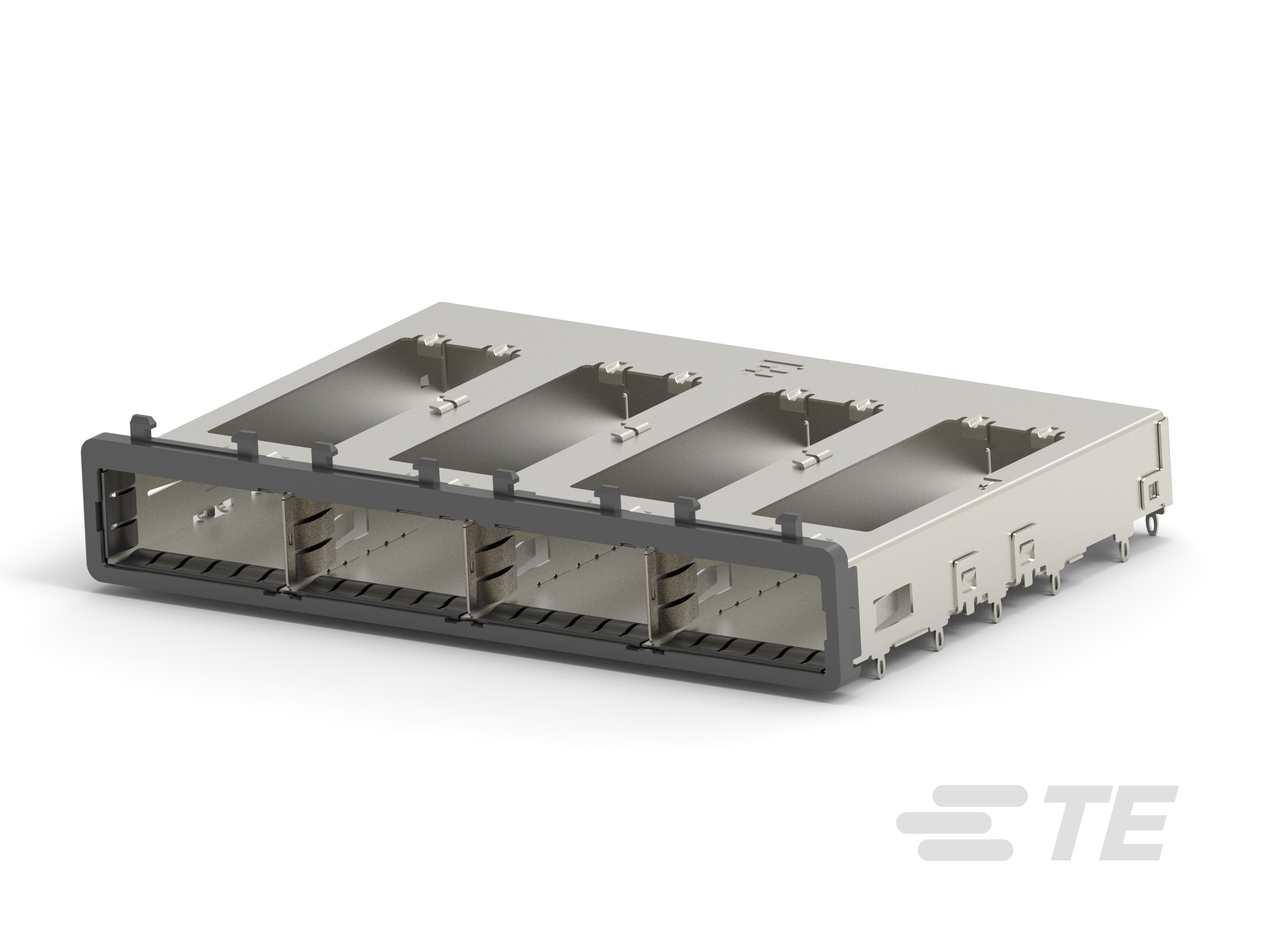

QSFP+, Cage, Sealable, Signal, 4 Ports, Port Matrix Configuration 1 x 4, Customer Applied Gasket
2007668-1
QSFP+, Cage, Sealable, Signal, 4 Ports, Port Matrix Configuration 1 x 4, Customer Applied Gasket
-
- QSFP/QSFP+
- TE Internal #: 2007668-1
- TE Internal Description: 1x4 QSFP Cage Assy Behind Bzl, LP Holder
-
Form Factor : QSFP+
-
Pluggable I/O Product Type : Cage
-
Sealable : Yes
-
Circuit Application : Signal
-
Number of Ports : 4
Documents
Product Drawings
- 1X4 CAGE ASSEMBLY, BEHIND BEZEL, W/ LIGHT PIPE BRACKET, QSFP ENG_CD_2007668_F.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2007668-1_D.pdf 3D
- Customer View Model ENG_CVM_CVM_2007668-1_D.2d_dxf.zip English
- ENG_CVM_CVM_2007668-1_D.3d_igs.zip English
- ENG_CVM_CVM_2007668-1_D.3d_stp.zip English
Datasheets & Catalog Pages
- 1773408-1 Pluggable Input/Output Solutions catalog - QSFP section ENG_CS_1773408-1_Pluggable_IXO_Solutions_-_QSFP_0612.pdf English
- 4-1773455-5 - Quick Reference Guide QSFP/QSFP+ Solutions ENG_DS_4-1773455-5_Quik_Ref_Guide_QSFPXQSFP+_So_0714_QRG_4-1773455-5_QSFP_Connectors_and_Cages.pdf English
Product Specifications
- Application Specification ENG_SS_114-13218_C_114-13218.pdf English
- Product Specification ENG_SS_108-2286_B.pdf English
