2-520181-4

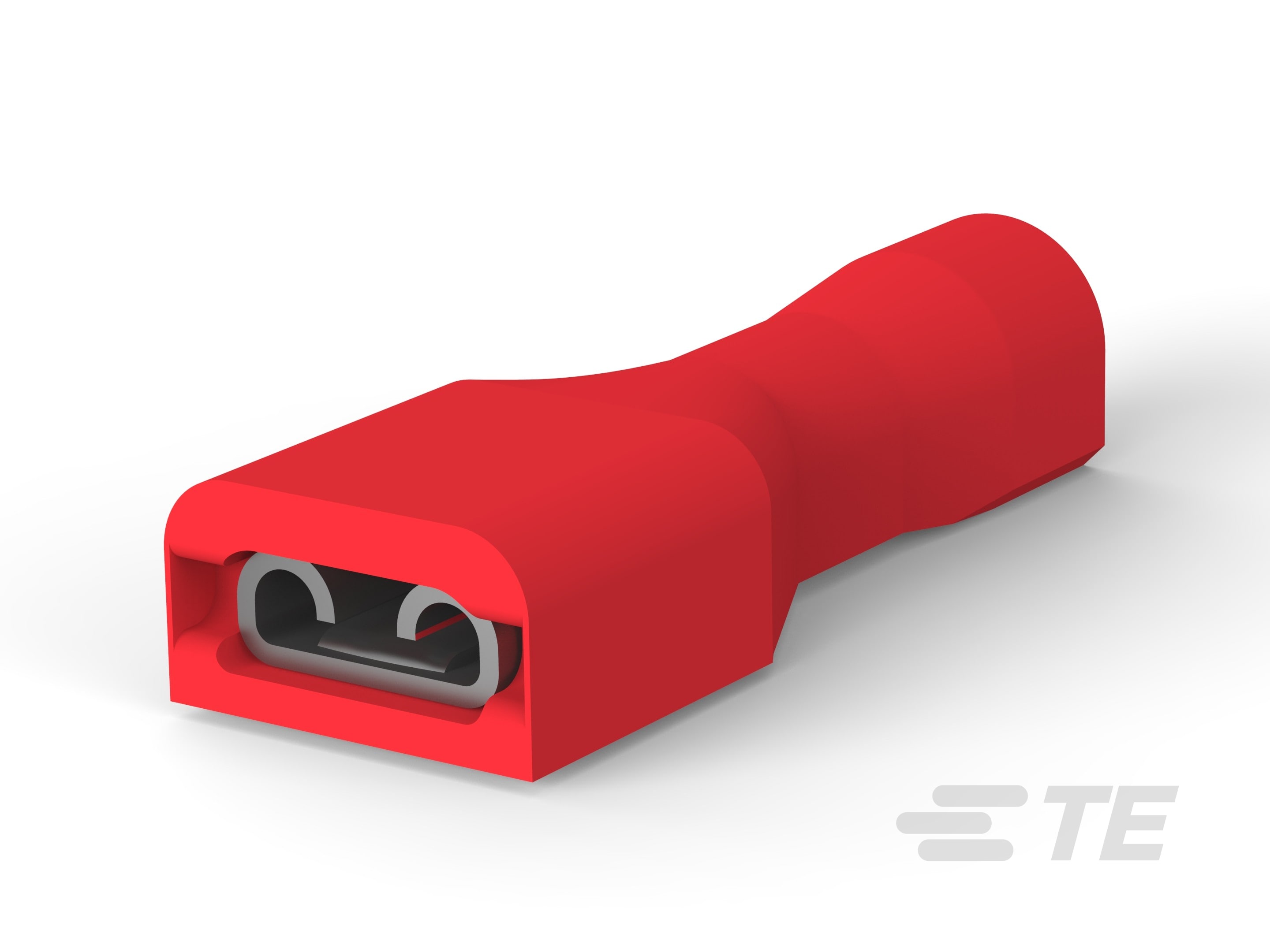

Quick Disconnect Receptacle, 22 – 18 AWG, .32 – .82 mm² Wire, 4.75 mm [.187 in] Tab Width, Straight, Phosphor Bronze, Tin Plating, Ultra-Fast 187
2-520181-4
Quick Disconnect Receptacle, 22 – 18 AWG, .32 – .82 mm² Wire, 4.75 mm [.187 in] Tab Width, Straight, Phosphor Bronze, Tin Plating, Ultra-Fast 187
-
- Ultra-Fast
- Ultra-Fast 187
- TE Internal #: 2-520181-4
- TE Internal Description: ULTRA-FAST 187 ASY REC 22-18 TPPB
-
Quick Disconnect Terminal Type : Receptacle
-
Wire Size (AWG): 22 – 18
-
Wire Size (mm²): .32 – .82
-
Mating Tab Width : 4.75 mm [ .187 in ]
-
Mating Tab Thickness : .51 mm [ .02 in ]
Documents
Product Drawings
- RECEPTACLE ASSY,ULTRA-FAST, .187 SERIES,22-18 AWG ENG_CD_520181_W_baseFilename.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-520181-4_AD_c-2-520181-4-ad-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_2-520181-4_AD_c-2-520181-4-ad.2d_dxf.zip English
- ENG_CVM_CVM_2-520181-4_AD_c-2-520181-4-ad.3d_igs.zip English
- ENG_CVM_CVM_2-520181-4_AD_c-2-520181-4-ad.3d_stp.zip English
Datasheets & Catalog Pages
- Ultra-Fast and Ultra Fast Plus ENG_CS_82004_Ultra-Fast_and_Ultra_Fast_Plus_0311.pdf English
Product Specifications
- FASTON, Ultra-Fast ''187'' Series 22-18 Fully Insulted, Qual Test S_110-212_O.tif English
- S_110-212_O.pdf English
- S_110-224_O.tif English
- S_110-224_O.pdf English
- S_110-241_O.tif English
- S_110-241_O.pdf English
- Application Specification ENG_SS_114-2123_K4.pdf English
Agency Approvals
- Agency Approval Document ENG_AAD_UL_E66717_19800501_A.pdf English
