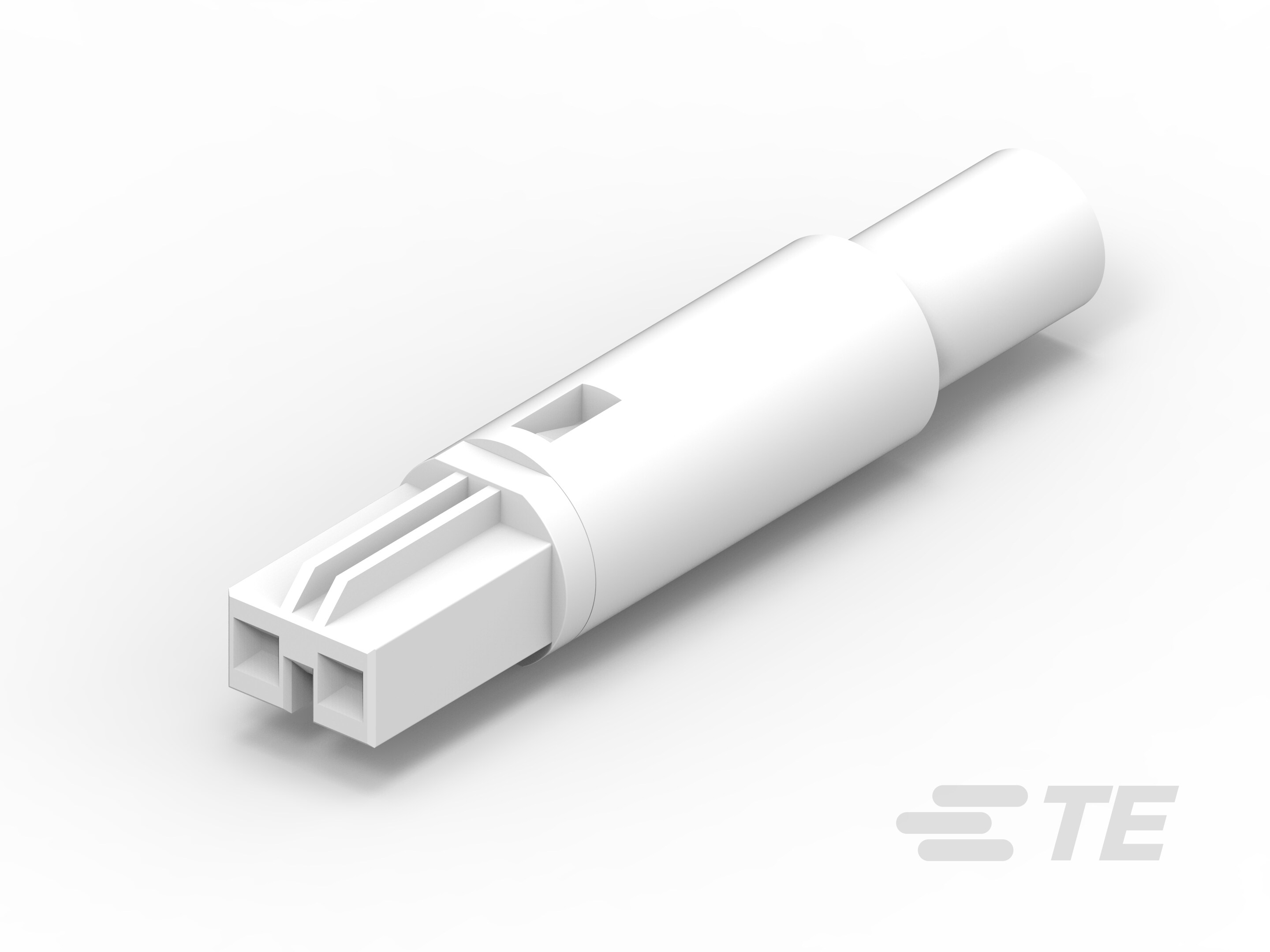

Mini HVL Pigtail Cable Assembly, 2 Position, 2.438 m [8 ft], LV-2, 42 VDC, Mini HVL Plug End A, White End A
2-2083075-5
Mini HVL Pigtail Cable Assembly, 2 Position, 2.438 m [8 ft], LV-2, 42 VDC, Mini HVL Plug End A, White End A
- TE Internal #: 2-2083075-5
- TE Internal Description: Cable assy Nector S Plug 10FT
-
Cable Assembly Type : Mini HVL Pigtail
-
Number of Positions : 2
-
Cable Assembly Length : 2.438 m [ 8 ft ]
-
Keying Arrangement : LV-2
-
Operating Voltage (VDC): 42
