1SNK805015R0000

Active

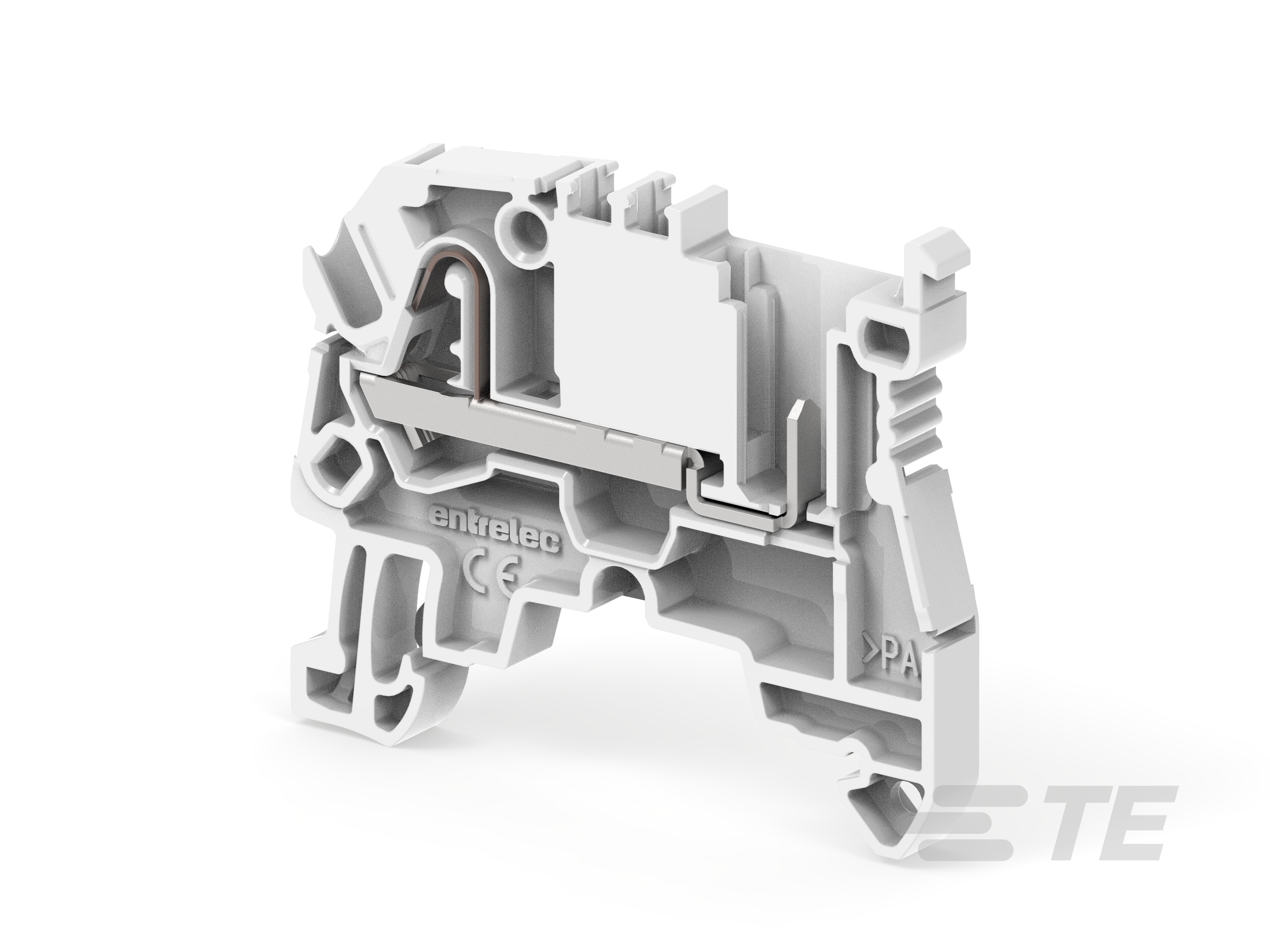

Screw Clamp Terminal Block, Feed-Through, Gray, 5.2 mm [.204 in] Spacing, 2 Position, Push-in, Signal, DIN Rail, 1000 VAC, 12 AWG, ENTRELEC SNK

1SNK805015R0000

Active

Screw Clamp Terminal Block, Feed-Through, Gray, 5.2 mm [.204 in] Spacing, 2 Position, Push-in, Signal, DIN Rail, 1000 VAC, 12 AWG, ENTRELEC SNK

- ENTRELEC
- ENTRELEC SNK

TE Internal #: 1SNK805015R0000
TE Internal Description: ZDK2.5-11

Modular Terminal Block Product Type : Screw Clamp Terminal Block
Block Function : Feed-Through
Primary Product Color : Gray
Product Spacing : 5.2 mm [ .204 in ]
Number of Positions : 2

See All Features

More Less

Get Free Samples
Compatible Parts & Tooling

Documents

Product Drawings

ZDK2.5-11 ENG_CD_1SNP109490-0100_A2.pdf English

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_1SNK805015R0000_A.pdf 3D
Customer View Model ENG_CVM_CVM_1SNK805015R0000_A.2d_dxf.zip English
ENG_CVM_CVM_1SNK805015R0000_A.3d_igs.zip English
ENG_CVM_CVM_1SNK805015R0000_A.3d_stp.zip English

Datasheets & Catalog Pages

ENTRELEC Terminal Block - Master Catalog CHI_DS_1-1773980-7_2001.pdf
ENTRELEC Terminal Block - Master Catalog ENG_DS_1-1773980-7_2001.pdf English
SNK SERIES TERMINAL BLOCKS ENG_DS_1-1773957-4_2001.pdf English
Essential Entrelec Terminal Blocks FRE_DS_essential-entrelec-terminal-blocks_2209.pdf French
Essential Entrelec Terminal Blocks ENG_DS_essential-entrelec-terminal-blocks_2209.pdf English
Essential Entrelec Terminal Blocks JPN_DS_essential-entrelec-terminal-blocks_2209.pdf Japanese

Agency Approvals

Bureau Veritas Marine and Offshore Certificate ENG_AAD_BV_MARINE_34077_C.pdf English

UL ENG_AAD_E60645-Vol8_A2.pdf English

CSA Certificate ENG_AAD_CSA_COFC_80130788_EN_A.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Modular Terminal Block Product Type : Screw Clamp Terminal Block

Configuration Features

Number of Circuits : 1
Number of Poles : 2
Gauge Type : A2 / 2.3 mm Dia.
Number of Levels : 1
Block Function : Feed-Through
Number of Positions : 2

Electrical Characteristics

Short-Time Withstanding Current Rating @ 1s (A): 300
Voltage Rating (CSA) (V): 600
Voltage Rating (IEC) (V): 1000
Dielectric Withstanding Voltage (Max) (V): 2200
Current Rating (CSA) (A): 20
Current Rating (UL) (A): 20
Current Rating (IEC) (A): 24
Impulse Withstanding Voltage Rating (IEC) (V): 8000
Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V): 600
Operating Voltage (VAC): 1000

Body Features

Product Weight : 7 g [ .246 oz ]
Primary Product Color : Gray

Termination Features

Termination Method to Wire & Cable : Push-in

Mechanical Attachment

DIN Rail Mounting Type : TH35-15, TH35-7.5
Connector Mounting Type : DIN Rail

Housing Features

Housing Material : Polyamide 6.6

Dimensions

Product Height (mm): 49.6
Product Length : 35.5 mm [ 1.38 in ]
Product Width : 5.2 mm [ .204 in ]
Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (AWG): 26 – 14
Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²): .22 – 2.5
Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (AWG): 26 – 14
Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (mm²): .22 – 2.5
Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (mm²): .22 – 2.5
Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (AWG): 26 – 12
Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (mm²): .2 – 4
Wire Stripping Length : 11 mm [ .433 in ]
Tool Size : 3.5 mm [ .138 in ]
Product Depth : 35.5 mm [ 1.38 in ]
Product Spacing : 5.2 mm [ .204 in ]
Wire Size (AWG): 12
Wire Size (mm²): 2.5

Usage Conditions

Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]
Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]

Operation/Application

Circuit Application : Signal

Industry Standards

UL Flammability Rating : UL 94V-0
IP Rating : IP20
