1SNK526010R0000

Active

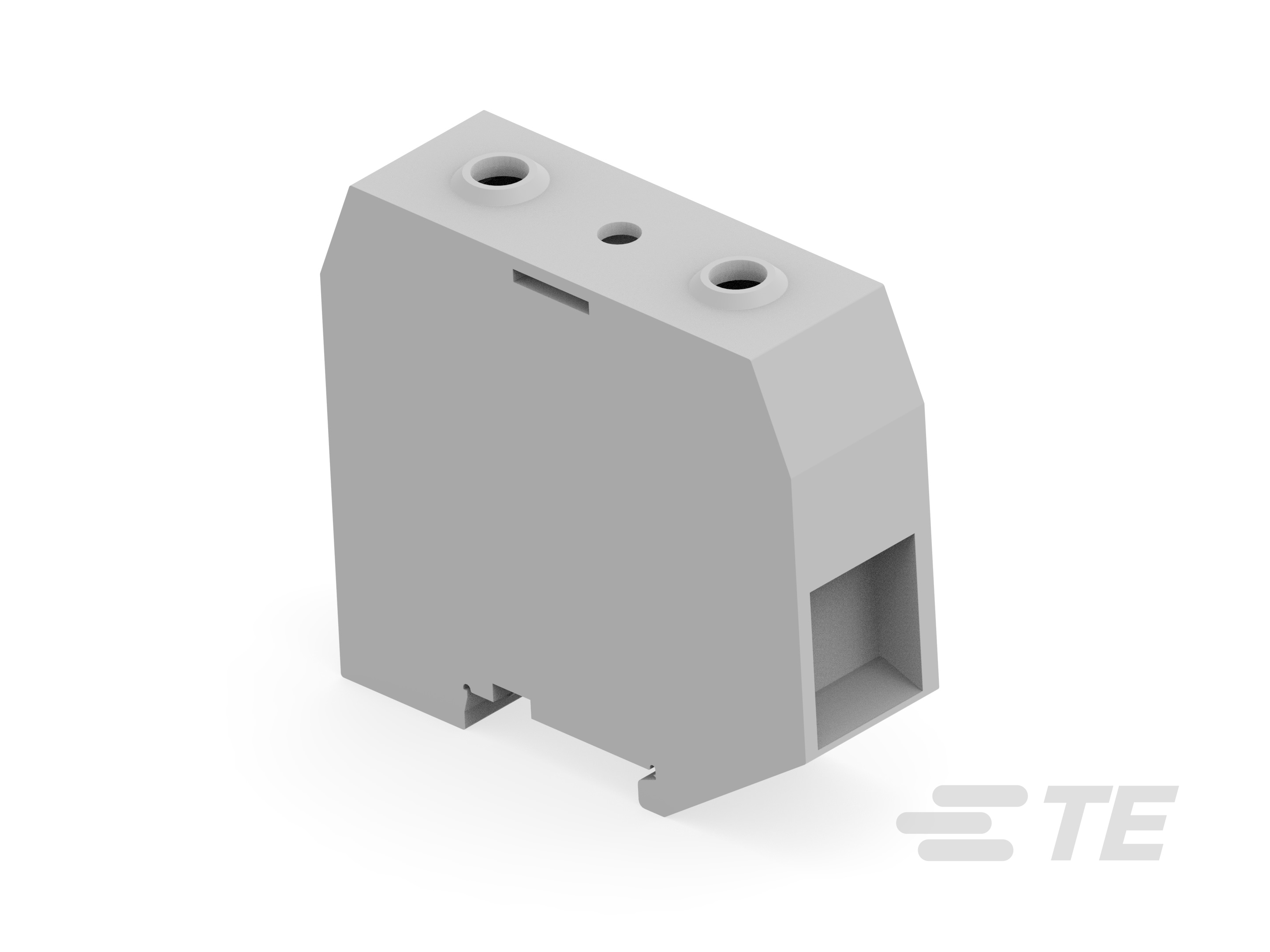

Screw Clamp Terminal Block, Feed-Through, Gray, 26 mm [1.024 in] Spacing, 2 Position, Screw Terminal, Power & Signal, DIN Rail, 1000 VAC, ENTRELEC SNK

1SNK526010R0000

Active

Screw Clamp Terminal Block, Feed-Through, Gray, 26 mm [1.024 in] Spacing, 2 Position, Screw Terminal, Power & Signal, DIN Rail, 1000 VAC, ENTRELEC SNK

- ENTRELEC
- ENTRELEC SNK

TE Internal #: 1SNK526010R0000
TE Internal Description: ZS95

Modular Terminal Block Product Type : Screw Clamp Terminal Block
Block Function : Feed-Through
Primary Product Color : Gray
Product Spacing : 26 mm [ 1.024 in ]
Number of Positions : 2

See All Features

More Less

Compatible Parts & Tooling

Documents

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_1SNK526010R0000_C.pdf 3D
Customer View Model ENG_CVM_CVM_1SNK526010R0000_C.3d_igs.zip English
ENG_CVM_CVM_1SNK526010R0000_C.3d_stp.zip English
ENG_CVM_CVM_1SNK526010R0000_C.2d_dxf.zip English

Datasheets & Catalog Pages

ZS95 ENG_DS_1SNK526010R0000_A.pdf English
ENTRELEC Terminal Block - Master Catalog CHI_DS_1-1773980-7_2001.pdf
ENTRELEC Terminal Block - Master Catalog ENG_DS_1-1773980-7_2001.pdf English
SNK SERIES TERMINAL BLOCKS ENG_DS_1-1773957-4_2001.pdf English
ENTRELEC Terminal Blocks Catalogue (RUS) RUS_DS_1-1773967-1_RUS_1218.pdf
Essential Entrelec Terminal Blocks FRE_DS_essential-entrelec-terminal-blocks_2209.pdf French
Essential Entrelec Terminal Blocks ENG_DS_essential-entrelec-terminal-blocks_2209.pdf English
Essential Entrelec Terminal Blocks JPN_DS_essential-entrelec-terminal-blocks_2209.pdf Japanese

Agency Approvals

ZK-ZS_ATEX_1SND225112U1006-C-TE ENG_AAD_ZK-ZS_ATEX_1SND225112U1006-C-TE_D.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Modular Terminal Block Product Type : Screw Clamp Terminal Block

Configuration Features

Number of Circuits : 1
Gauge Type : B12
Number of Levels : 1
Block Function : Feed-Through
Number of Positions : 2

Electrical Characteristics

Short-Time Withstanding Current Rating @ 1s (A): 11400
Voltage Rating (CSA) (V): 600
Voltage Rating (IEC) (V): 1000
Dielectric Withstanding Voltage (Max) (V): 3500
Current Rating (UL) (A): 230
Current Rating (IEC) (A): 232
Impulse Withstanding Voltage Rating (IEC) (V): 8000
Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V): 1000
Power Loss (W): 7.4
Operating Voltage (VAC): 1000

Body Features

Product Weight : 215.1 g [ 8.468 oz ]
Primary Product Color : Gray

Termination Features

Termination Method to Wire & Cable : Screw Terminal

Mechanical Attachment

DIN Rail Mounting Type : TH35-15, TH35-7.5
Connector Mounting Type : DIN Rail

Housing Features

Housing Material : Polyamide

Dimensions

Product Height : 87 mm [ 3.425 in ]
Product Length : 80.1 mm [ 3.15 in ]
Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²): 35 – 50
Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²): 35 – 95
Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (mm²): 35 – 50
Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG): 2 – 0000
Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²): 35 – 120
Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (AWG): 4 – 2
Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (mm²): 25 – 35
Main Circuit Capacity - Twin Ferrule per Screw Clamp (AWG): 6
Main Circuit Capacity - Twin Ferrule per Screw Clamp (mm²): 16
Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (AWG): 4 – 2
Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (mm²): 25 – 35
Wire Stripping Length : 26 mm [ 1.024 in ]
Product Depth : 80.1 mm [ 3.153 in ]
Product Spacing : 26 mm [ 1.024 in ]
Wire Size (AWG): 3/0
Wire Size (mm²): 95

Usage Conditions

Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]
Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]

Operation/Application

Circuit Application : Power & Signal

Industry Standards

UL Flammability Rating : UL 94V-0
