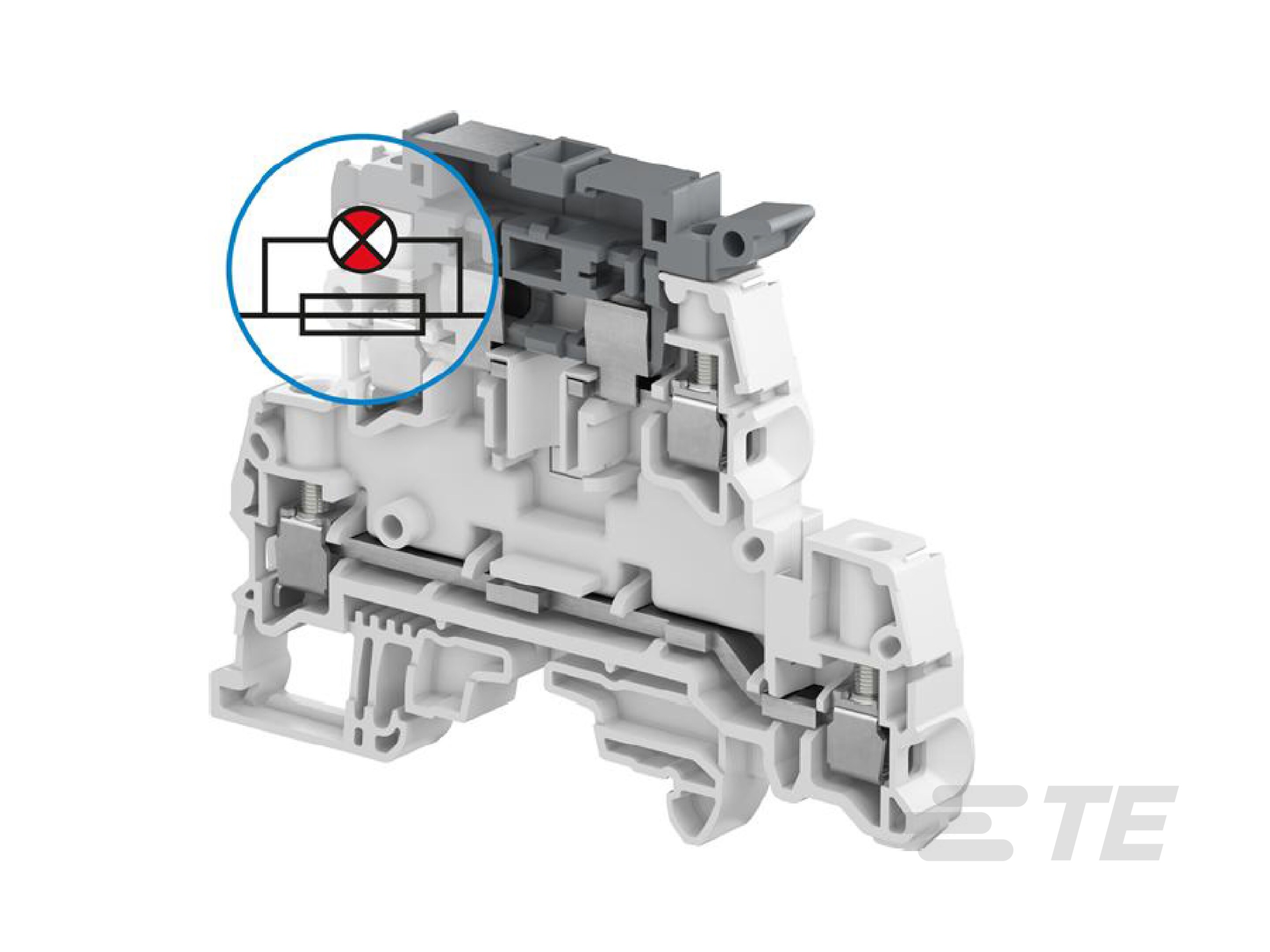

• Modular Terminal Block Product Type : Screw Clamp Terminal Block

• Number of Circuits : 2

• Gauge Type : A3-B3

• Number of Levels : 2

• Block Function : Feed-Through & Fuse

• Number of Positions : 4

• Short-Time Withstanding Current Rating @ 1s (A): 480

• Voltage Rating (CSA) (V): 300

• Voltage Rating (IEC) (V): 800

• Dielectric Withstanding Voltage (Max) (V): 2000

• Current Rating (CSA) (A): 12

• Current Rating (UL) (A): 12

• Current Rating (IEC) (A): 6.3

• Impulse Withstanding Voltage Rating (IEC) (V): 8000

• Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V): 300

• Product Weight : 29.4 g [ 1.157 oz ]

• Primary Product Color : Gray & Dark Gray

• DIN Rail Mounting Type : TH35-15, TH35-7.5

• Connector Mounting Type : DIN Rail

• Housing Material : Polyamide

• Product Height (mm): 89.2

• Product Length (mm): 66.5

• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²): .22 – 4

• Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²): .22 – 4

• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG): 24 – 12

• Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (mm²): .22 – 4

• Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (AWG): 24 – 12

• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG): 24 – 10

• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²): .2 – 6

• Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (mm²): .2 – 2.5

• Main Circuit Capacity - Twin Ferrule per Screw Clamp (AWG): 24 – 14

• Main Circuit Capacity - Twin Ferrule per Screw Clamp (mm²): .22 – 2.5

• Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (AWG): 24 – 14

• Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (mm²): .2 – 2.5

• Wire Stripping Length : 11 mm [ .433 in ]

• Tool Size : 3.5 mm [ .138 in ]

• Product Depth (mm): 66.5

• Product Spacing : 8 mm [ .315 in ]

• Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]

• Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]
