1SNA195219R2700

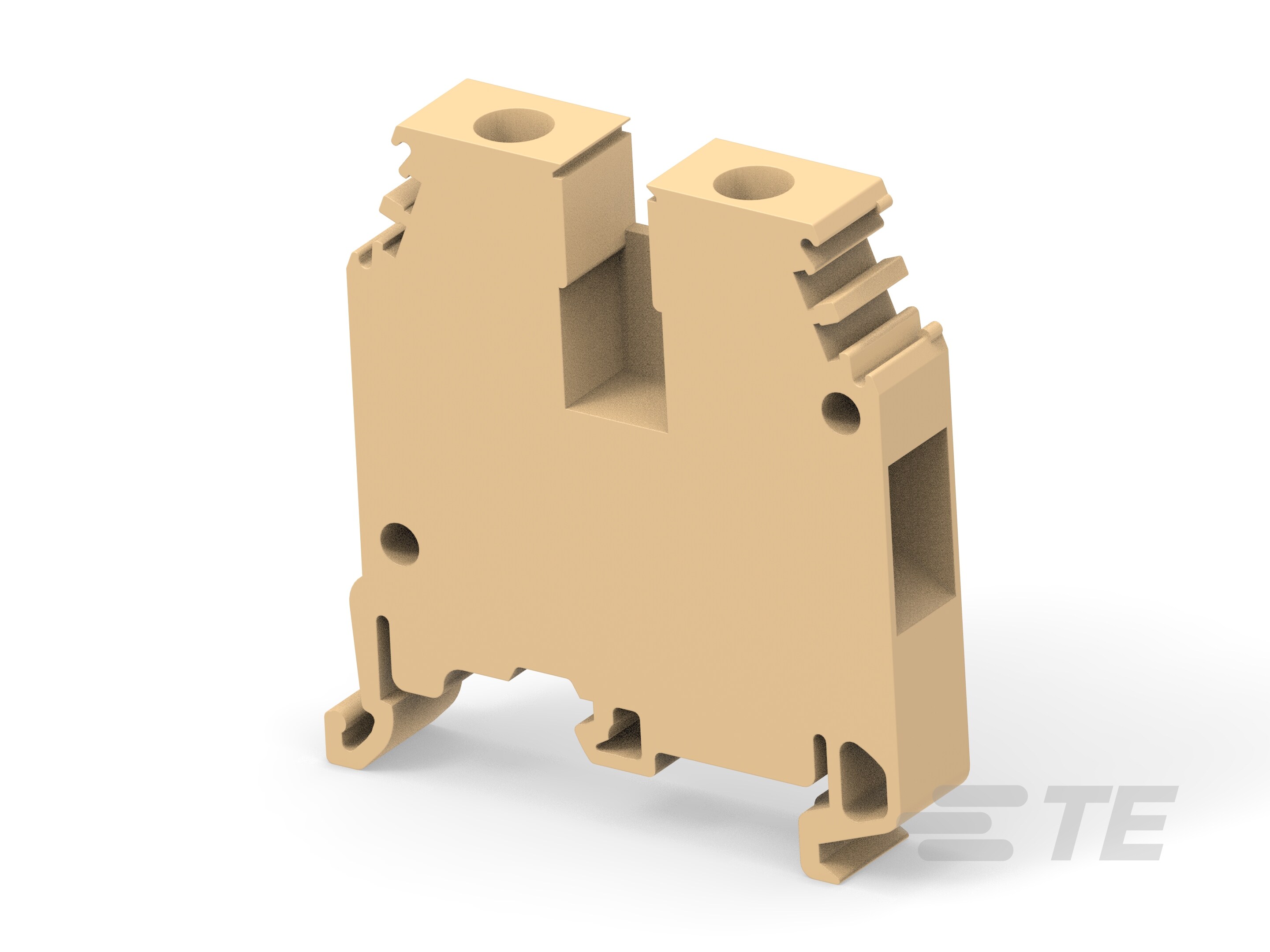

Screw Clamp Terminal Block, Feed-Through, Beige, 8 mm [.314 in] Spacing, 2 Position, Screw Terminal, Signal, DIN Rail, 720 VAC, 8 AWG, ENTRELEC SNA
1SNA195219R2700
Screw Clamp Terminal Block, Feed-Through, Beige, 8 mm [.314 in] Spacing, 2 Position, Screw Terminal, Signal, DIN Rail, 720 VAC, 8 AWG, ENTRELEC SNA
-
- ENTRELEC
- ENTRELEC SNA
- TE Internal #: 1SNA195219R2700
- TE Internal Description: M6/8.3
-
Block Function : Feed-Through
-
Modular Terminal Block Product Type : Screw Clamp Terminal Block
-
Primary Product Color : Beige
-
Product Spacing : 8 mm [ .314 in ]
-
Number of Positions : 2
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1SNA195219R2700_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1SNA195219R2700_A.2d_dxf.zip English
- ENG_CVM_CVM_1SNA195219R2700_A.3d_igs.zip English
- ENG_CVM_CVM_1SNA195219R2700_A.3d_stp.zip English
Datasheets & Catalog Pages
- M6/8.4.V0 ENG_DS_1SNA195219R2700_A.pdf English
