This product is not currently available. For more information, including distributor inventory, please contact us.

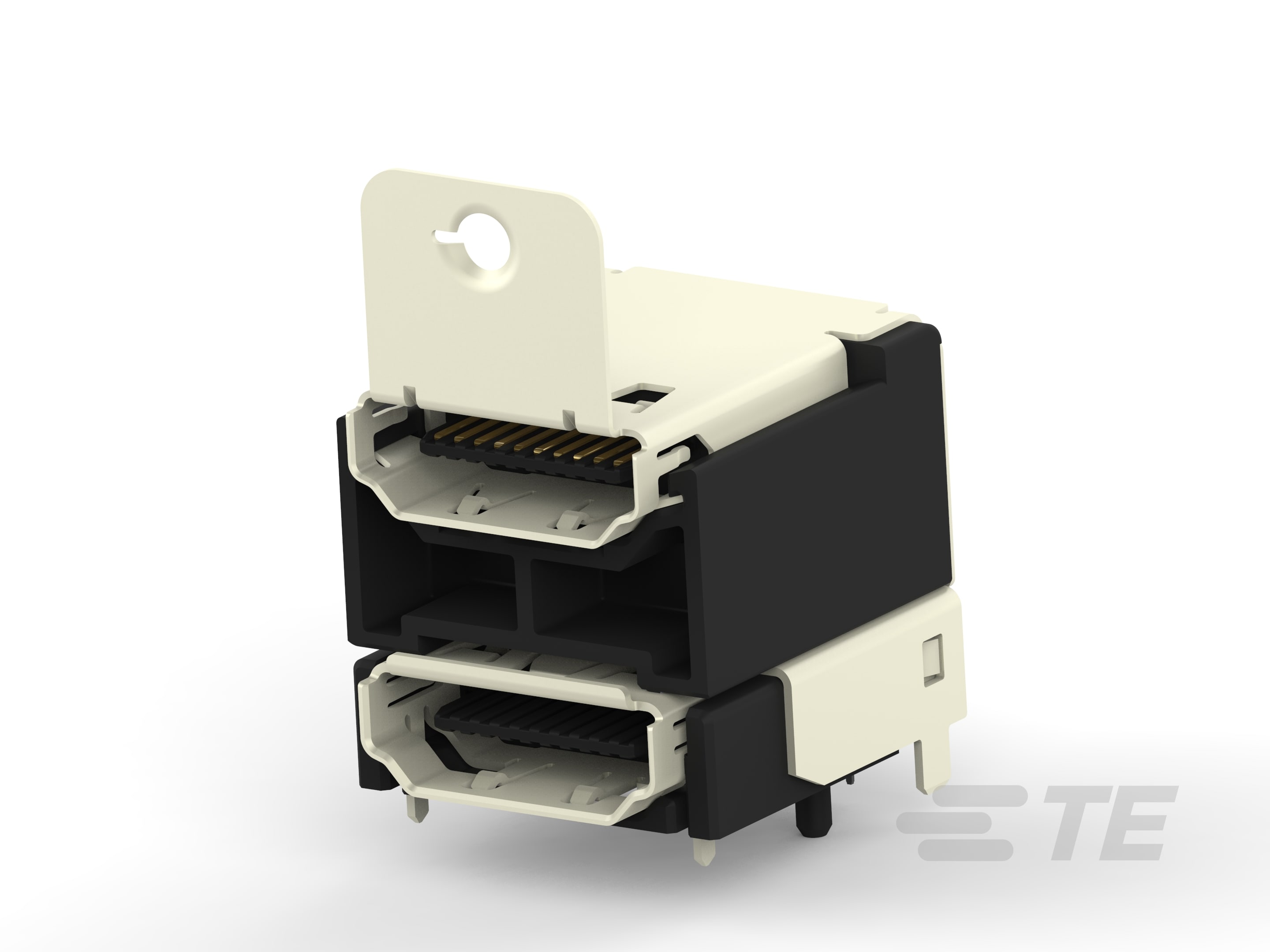

1888811-1
2 Port, Standard HDMI Connector, Right Angle, Top Mount, Through Hole - Solder, 38 Position, 1 mm [.039 in] Centerline, -55 – 105 °C [-67 – 221 °F]
1888811-1
2 Port, Standard HDMI Connector, Right Angle, Top Mount, Through Hole - Solder, 38 Position, 1 mm [.039 in] Centerline, -55 – 105 °C [-67 – 221 °F]
- TE Internal #: 1888811-1
- TE Internal Description: Std HDMI, RA, T/H, Stacked 2x, Panel grd
-
Connector Profile : Standard
-
Number of Ports : 2
-
PCB Mount Location : Top Mount
-
PCB Mount Orientation : Right Angle
-
Termination Method to PCB : Through Hole - Solder
Documents
Product Drawings
- CONNECTOR ASSEMBLY, HDMI STACKED tif English
- CONNECTOR ASSEMBLY, HDMI STACKED ENG_CD_1888811_A1.pdf English
CAD Files
- 3D PDF 3D_CVM_CVM_1888811-1_A.pdf 3D
- PCB Design Download symbol & footprint (SnapEDA)
- Customer View Model ENG_CVM_CVM_1888811-1_A.2d_dxf.zip English
- ENG_CVM_CVM_1888811-1_A.3d_igs.zip English
- ENG_CVM_CVM_1888811-1_A.3d_stp.zip English
Datasheets & Catalog Pages
- Connectors & Cable Assemblies Incorporating HDMI Technology ENG_DS_1773083-1_Connectors_and_Cable_Assembl_0808.pdf English
- 6-1773453-4_HDMI_QRG ENG_DS_6-1773453-4_HDMI_QRG_0419.pdf English
Product Specifications
- Qualification Test Report ENG_SS_501-662_B.pdf English
Product Change Notification
- View Product Change Notification Login required to access product change notifications
Features
Select Features & Characteristics to Find Similar Products
You can find similar products by using the checkboxes to select the attributes you would like to keep the same. When you click on 'View Similar Products' you can further narrow your search using filters to find products with differing attributes.
Please review product documents or contact us for the latest agency approval information.
Please Note: Use the Product Drawing for all design activity.
The only matching product is this current one. Please revise your search to continue.
0 similar products are available. Please choose different features or characteristics.
Something went wrong. Please try again
Product Features & Characteristics
Select All
Product Type Features
-
Connector System : Cable-to-Board
-
Ground Feature Type : M3 Threaded Hole
-
Connector & Housing Type : Receptacle
-
Connector & Contact Terminates To : Printed Circuit Board
-
Grounding Options : Panel Ground
Configuration Features
-
Multiple Port Configuration : Stacked
-
Panel Ground Location : Top
-
Number of Ports : 2
-
PCB Mount Orientation : Right Angle
-
Number of Positions : 38
Body Features
-
Shell Plating Finish : Matte
-
Shell Plating Material : Tin
-
Connector Profile : Standard
Contact Features
-
Contact Mating Area Plating Material Thickness : .3 µm [ 11.81 µin ]
-
Contact Mating Area Plating Material : Gold Flash
-
Contact Current Rating (Max) (A): .5
Termination Features
-
Termination Post & Tail Length : 2.6 mm [ .102 in ]
-
Termination Method to PCB : Through Hole - Solder
Mechanical Attachment
-
PCB Mount Alignment Type : Locating Posts
-
PCB Mount Retention Type : Straight Leg
-
Connector Mounting Type : Board Mount
-
PCB Mount Location : Top Mount
Housing Features
-
Housing Color : Black
-
Centerline (Pitch) : 1 mm [ .039 in ]
Dimensions
-
PCB Thickness (Min) : 1.6 mm [ .063 in ]
Usage Conditions
-
Mating Cycles (Max) : 10000
-
Soldering Temperature (Max) : 260 °C [ 500 °F ]
-
Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]
Operation/Application
-
Circuit Application : Signal
-
Assembly Process Feature : Pick and Place Cover
Packaging Features
-
Packaging Method : Box & Tray | Package
