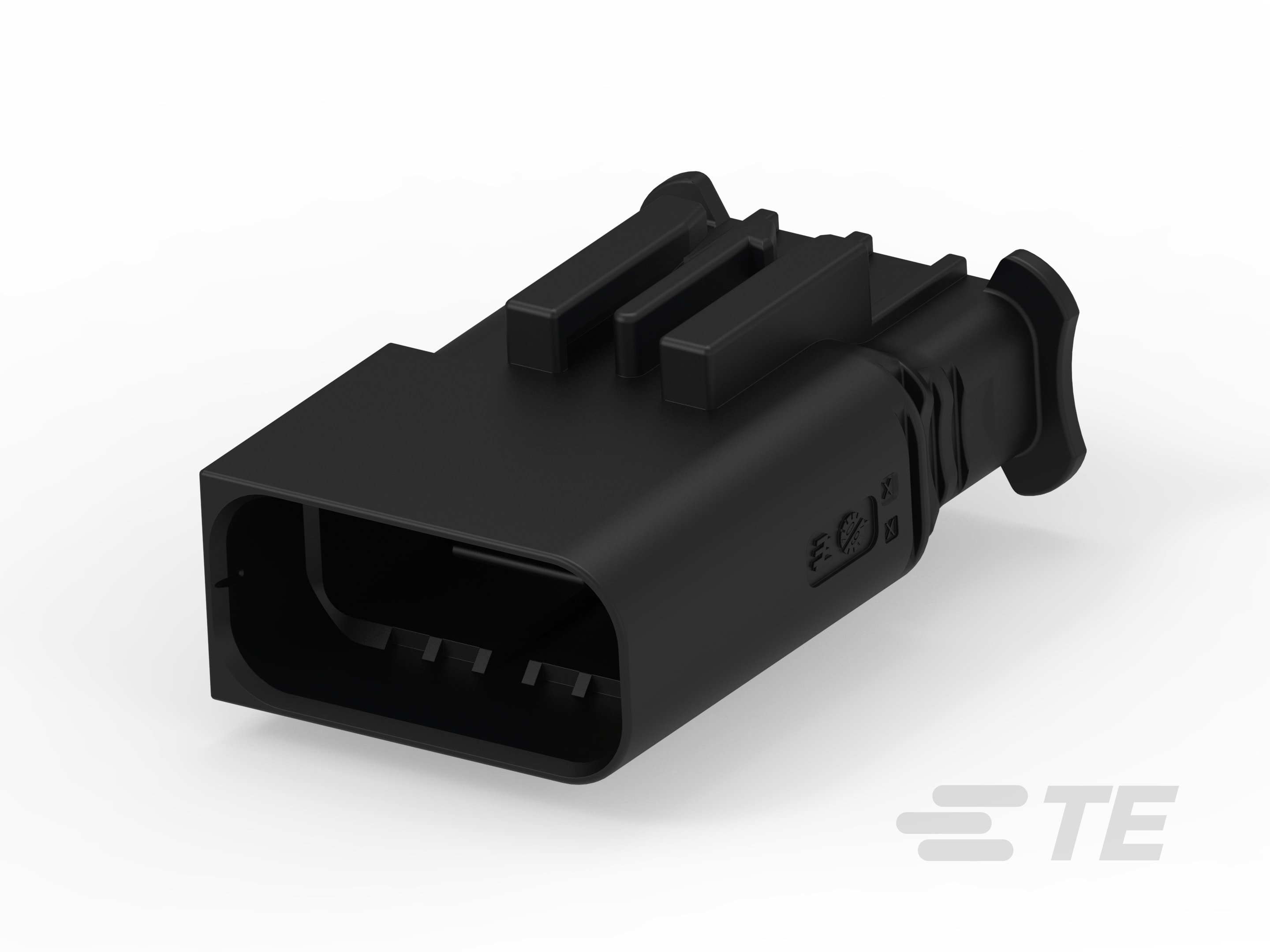

Name: TAB HOUSING, MCON, 10 W, SEALED
Brand: MCON

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Connector Shape : Rectangular
Mixed & Hybrid Connector : No
Connector & Housing Type : Housing for Male Terminals
Connector System : Wire-to-Wire
Sealable : Yes
Primary Locking Feature : Integrated in Housing
Connector & Contact Terminates To : Wire & Cable

Configuration Features

Number of Positions : 10
Number of Rows : 2

Electrical Characteristics

Operating Voltage (VDC): 16
Nominal Voltage Architecture (V): 16

Body Features

Cable Exit Angle : 180°
Primary Product Color : Black
Connector & Keying Code : A

Contact Features

Contact Type : Tab
Contact Size : 1.2mm
Mating Tab Width : 1.2 mm [ .04 in ]

Mechanical Attachment

Mating Alignment : With
Mating Alignment Type : Keyed
Terminal Position Assurance : Yes
Strain Relief : Without
Connector Mounting Type : Cable Mount (Free-Hanging)

Housing Features

Housing Material : PBT GF
Centerline (Pitch) : 4.5 mm [ .17 in ]

Dimensions

Connector Height : 21.45 mm [ .844 in ]
Product Length : 30.2 mm [ 1.189 in ]
Product Width : 47.6 mm [ 1.874 in ]
Row-to-Row Spacing : 4.5 mm [ .177 in ]

Usage Conditions

Operating Temperature (Max) : 150 °C [ 302 °F ]
Operating Temperature Range : -40 – 150 °C [ -40 – 302 °F ]

Operation/Application

Circuit Application : Power

Industry Standards

UL Flammability Rating : UL 94HB
IP Rating : IPX9K

Packaging Features

Packaging Method : Box
Packaging Quantity : 900

Other

Serviceable : Yes
Connector Position Assurance Capable : No

1801606-1

10 Position Housing, Housing for Male Terminals, Wire-to-Wire, 4.5 mm [.17 in] Centerline, Sealable, Black, Wire & Cable, MCON Interconnection System

1801606-1

10 Position Housing, Housing for Male Terminals, Wire-to-Wire, 4.5 mm [.17 in] Centerline, Sealable, Black, Wire & Cable, MCON Interconnection System

Number of Positions : 10

Connector & Housing Type : Housing for Male Terminals

Mating Tab Width : 1.2 mm [ .04 in ]

Connector System : Wire-to-Wire

Centerline (Pitch) : 4.5 mm [ .17 in ]
