Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

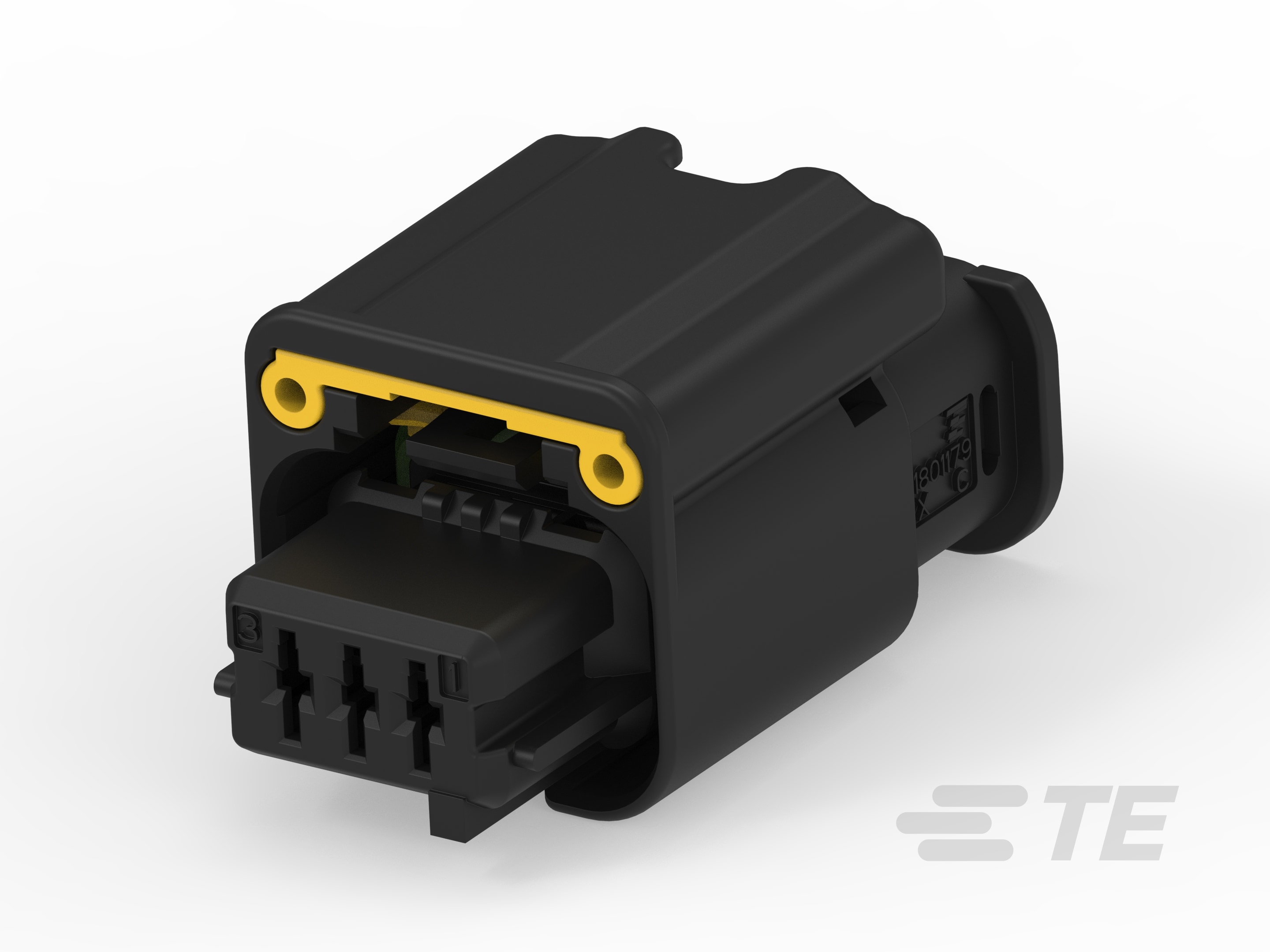

• Connector Shape : Rectangular

• Connector System : Wire-to-Wire

• Connector & Housing Type : Housing for Female Terminals

• Sealable : Yes

• Connector & Contact Terminates To : Wire & Cable

• Primary Locking Feature : On the Terminal

• Mixed & Hybrid Connector : No

• Number of Positions : 3

• Number of Rows : 1

• Operating Voltage (VDC): 16

• Nominal Voltage Architecture (V): 16

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Connector & Keying Code : 1

• Contact Type : Receptacle

• Contact Size : 1.5mm

• Mating Tab Width : 1.5 mm [ .06 in ]

• Contact Current Rating (Max) (A): 8

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Strain Relief : Add By Accessory

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Terminal Position Assurance : Yes

• Housing Material : PBT GF

• Centerline (Pitch) : 3.33 mm [ .131 in ]

• Product Length : 21.33 mm [ .84 in ]

• Product Width : 35.05 mm [ 1.38 in ]

• Connector Height : 21 mm [ .827 in ]

• Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 130, 140, 145, 150

• Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302

• Operating Temperature Range : -40 – 150 °C [ -40 – 302 °F ]

• Circuit Application : Signal

• UL Flammability Rating : UL 94HB

• Degree of Protection : IP69K
