Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

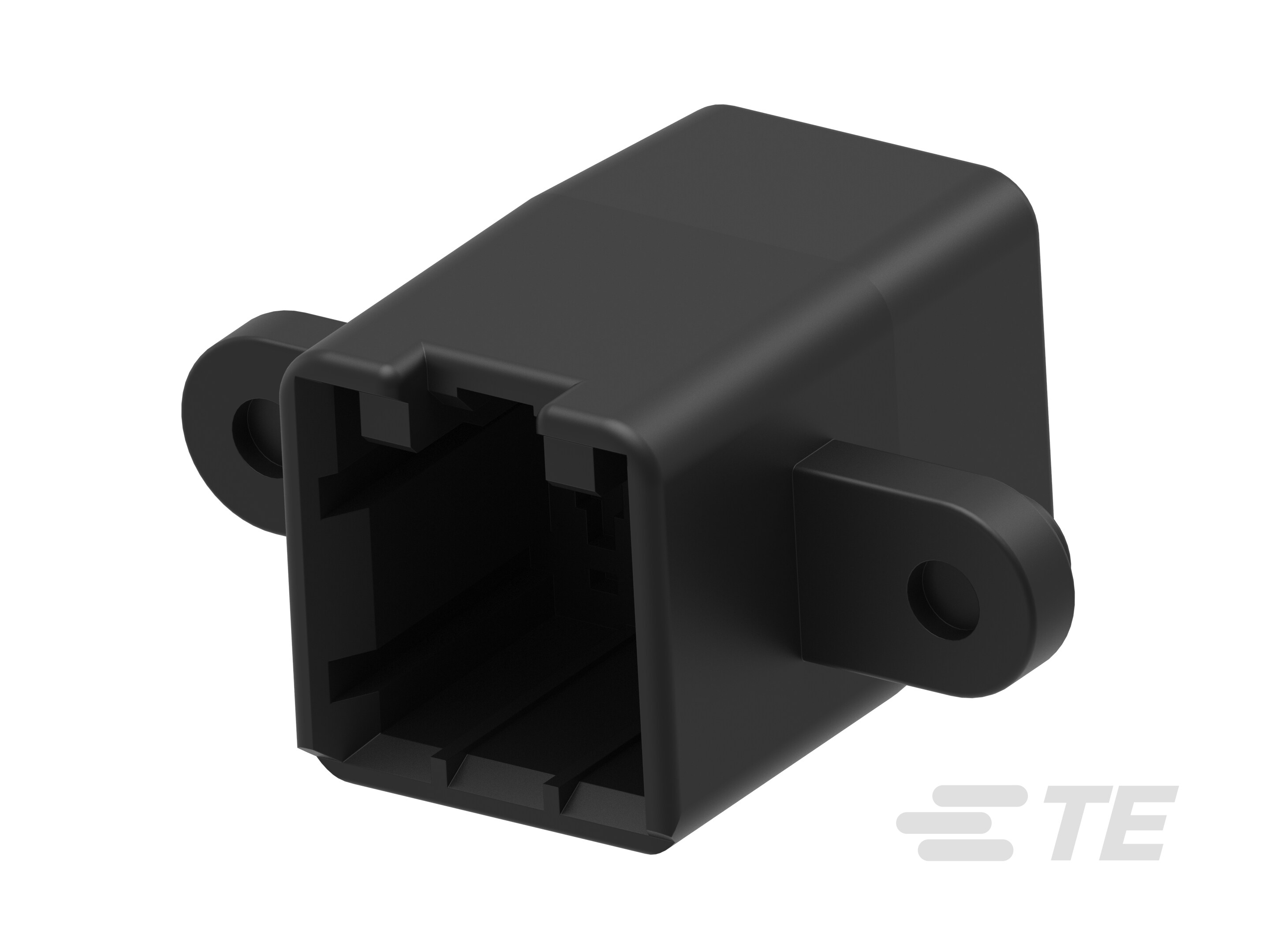

• Connector Shape : Rectangular

• Connector System : Wire-to-Wire

• Connector & Housing Type : Housing for Male Terminals

• Sealable : No

• Primary Locking Feature : Integrated in Housing

• Mixed & Hybrid Connector : No

• Number of Positions : 8

• Number of Rows : 2

• Operating Voltage (VDC): 12

• Nominal Voltage Architecture (V): 12

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Contact Type : Tab

• Contact Size : 1mm

• Mating Tab Width : 1 mm [ .039 in ]

• Mating Alignment : With

• Mating Alignment Type : Polarized

• Strain Relief : Without

• Connector Mounting Type : Panel Mount

• Terminal Position Assurance : No

• Housing Material : PBT

• Centerline (Pitch) : 2.5 mm [ .098 in ]

• Row-to-Row Spacing : 2.54 mm [ .1 in ]

• Product Length : 27 mm [ 1.063 in ]

• Product Width : 1 mm [ 1.496 in ]

• Connector Height : 18 mm [ .709 in ]

• Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105

• Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221

• Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

• Circuit Application : Signal

• UL Flammability Rating : UL 94HB

• Packaging Method : Bag & Box

• Packaging Quantity : 200
