170341-3

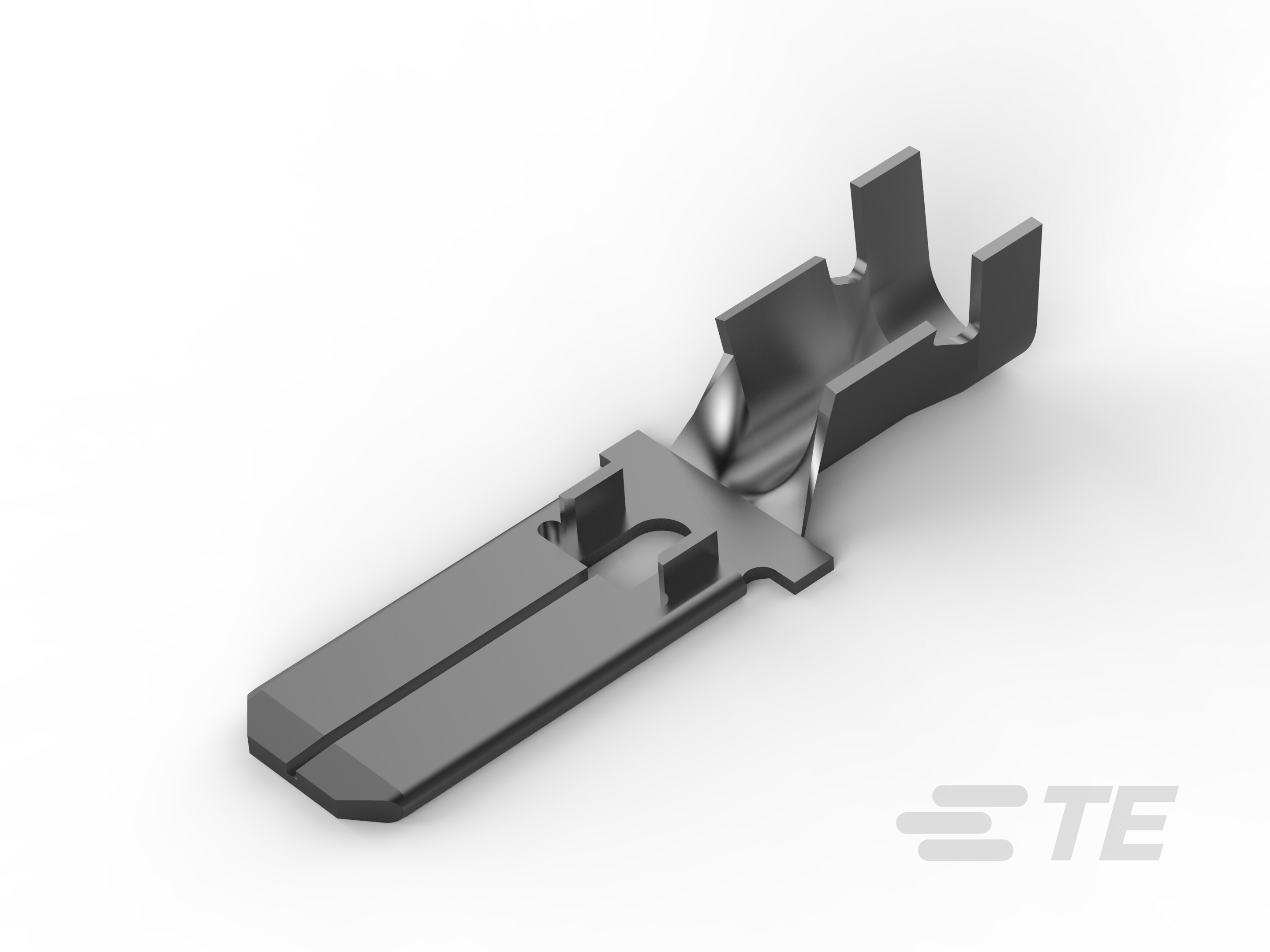

Quick Disconnect Tab, 14 – 12 AWG, 2.1 – 3.31 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Brass, Pre-Tin Plating, Strip/Reel, FASTIN-FASTON 250
170341-3
Quick Disconnect Tab, 14 – 12 AWG, 2.1 – 3.31 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Brass, Pre-Tin Plating, Strip/Reel, FASTIN-FASTON 250
-
- FASTIN-FASTON
- FASTIN-FASTON 250
- TE Internal #: 170341-3
- TE Internal Description: FF 250 TAB 14-12AWG PTBR WITHOUT LATCH
-
Quick Disconnect Terminal Type : Tab
-
Wire Size (AWG): 14 – 12
-
Wire Size (mm²): 2.1 – 3.31
-
Mating Tab Width : 6.35 mm [ .25 in ]
-
Mating Tab Thickness : .81 mm [ .032 in ]
Documents
Product Drawings
- 250 SERIES TAB WITHOUT LATCH ENG_CD_170341_C2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_170341-3_J.pdf 3D
- Customer View Model ENG_CVM_CVM_170341-3_J.2d_dxf.zip English
- ENG_CVM_CVM_170341-3_J.3d_igs.zip English
- ENG_CVM_CVM_170341-3_J.3d_stp.zip English
Product Specifications
- Application Specification JPN_SS_114-5052_G.tif Japanese
- JPN_SS_114-5052_G.pdf Japanese
- JPN_SS_114-5052-1_B1.pdf Japanese
- JPN_SS_114-5052-1_B1.tif Japanese
- Product Specification JPN_SS_108-5153_C.tif Japanese
- JPN_SS_108-5153_C.pdf Japanese
- JPN_SS_108-5169_C.pdf Japanese
- JPN_SS_108-5169_C.tif Japanese
- ENG_SS_108-5624_O1.pdf English
- S_108-5624_O1.tif English
- ENG_SS_108-5147_E1.pdf English
- Qualification Test Report JPN_SS_501-5015_O_501_5015_O_JP.pdf Japanese
- ENG_SS_501-5015_O.pdf English
- S_501-5015_O.tif English
- JPN_SS_501-5017_O_501_5017_O_JP.pdf Japanese
- ENG_SS_501-5017_O.pdf English
- S_501-5017_O.tif English
- ENG_SS_501-5050_O.pdf English
- S_501-5050_O.tif English
Instruction Sheets
- Customer Manual (non U.S.) JPN_SS_412-5111_O.pdf Japanese
- JPN_SS_412-5111_O.tif Japanese
