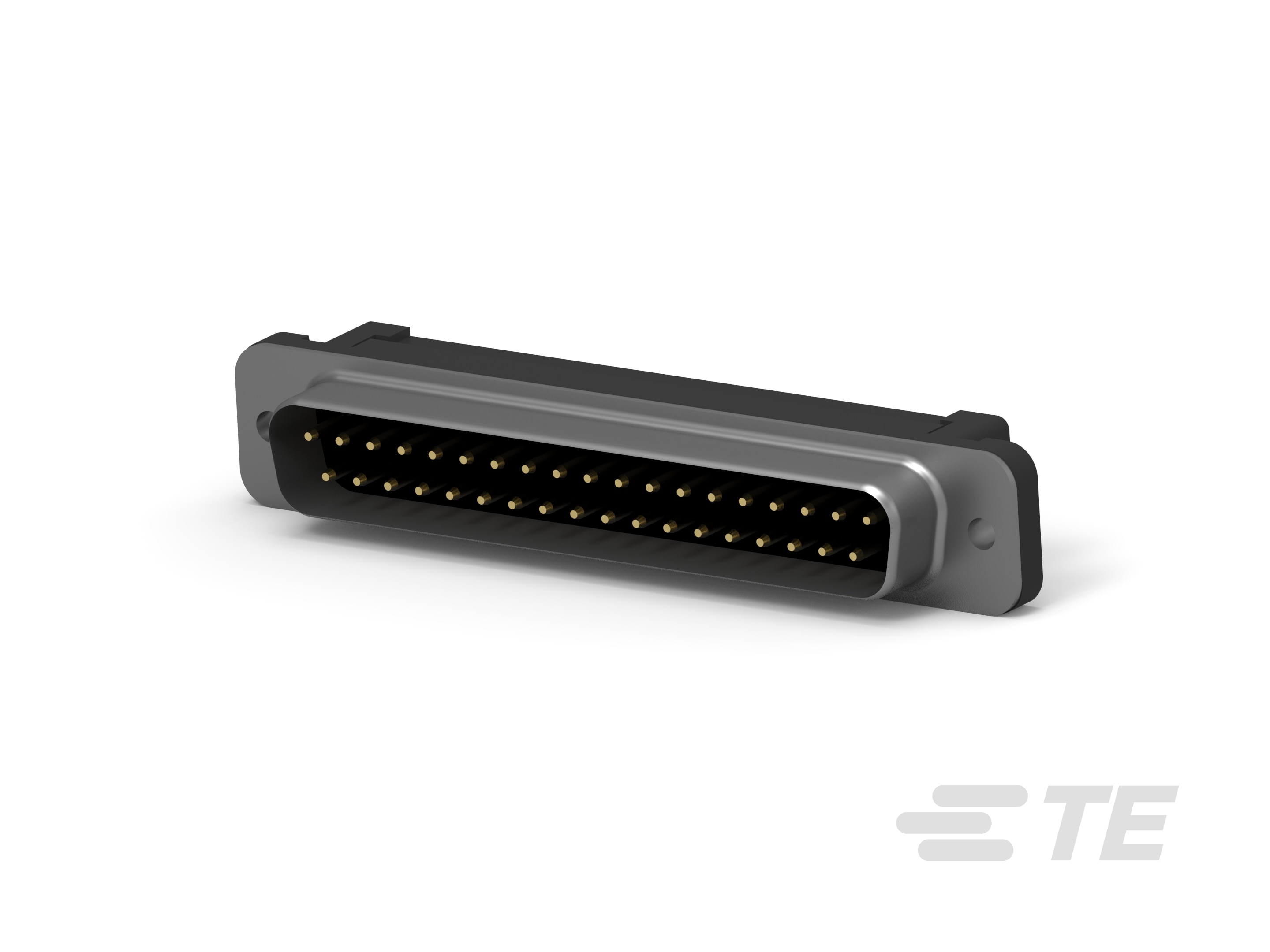

Name: 37 POS HDF PLUG, MS, LEAD FREE
Brand: AMPLIMITE
Price: 14.08 USD
Availability: InStock

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Shell Material Configuration : Front Metal Shell
Connector Product Type : Connector Assembly
Ground Feature Type : Grounding Indents
Connector & Housing Type : Plug
Connector System : Cable-to-Cable
Connector Shell Size : 4
Connector & Contact Terminates To : Wire & Cable

Configuration Features

Number of Rows : 2
Compatible With Wire & Cable Type : Ribbon Cable
Number of Positions : 37

Body Features

Connector Profile : Low
Primary Product Color : Black
Ribbon Cable Centerline Spacing : 1.27 mm [ .05 in ]
Mating Retention Feature Material : Steel
Cable Exit Angle : 90°
Shell Plating Material : Tin
Shell Plating Finish : Bright
Insert Material : Brass

Contact Features

Contact Mating Area Plating Material Thickness (µin): 30
Contact Type : Pin
Contact Base Material : Phosphor Bronze
Contact Mating Area Plating Material : Gold (Au)
Wire Contact Termination Area Plating Material : Tin
Contact Size : Size 20
Contact Underplating Material : Palladium Nickel
Contact Current Rating (Max) (A): 1.25
Contact Options : Installed

Termination Features

Termination Method to Wire & Cable : Insulation Displacement (IDC)

Mechanical Attachment

Mating Retention : With
Mating Retention Type : Threaded Insert, 4-40 UNC
Mating Retention Feature Plating Material : Zinc
Connector Mounting Type : Cable Mount (Free-Hanging)

Housing Features

Shell Material : Steel
Housing Material : Thermoplastic
Centerline (Pitch) : 2.77 mm [ .109 in ]

Dimensions

Wire Size (AWG): 28 – 26
Wire Size (mm²): .08 – .15
Solid Wire Size (mm²): .1 – .13
Solid Wire Size (AWG): 28 – 26
Accepts Cable Insulation Diameter Range : .81 – .97 mm [ .032 – .038 in ]

Usage Conditions

Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

Shielded : No
Circuit Application : Signal

Industry Standards

UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Method : Tube
Packaging Quantity : 40

1658608-1

37 Position D-Shaped Connector, Plug, Cable-to-Cable, Cable Mount (Free-Hanging), 4 Shell Size, 2.77 mm [.109 in] Centerline, AMPLIMITE HDF

1658608-1

37 Position D-Shaped Connector, Plug, Cable-to-Cable, Cable Mount (Free-Hanging), 4 Shell Size, 2.77 mm [.109 in] Centerline, AMPLIMITE HDF

Number of Positions : 37

Connector & Housing Type : Plug

Connector System : Cable-to-Cable

Connector Mounting Type : Cable Mount (Free-Hanging)

Connector Shell Size : 4
