163304-4

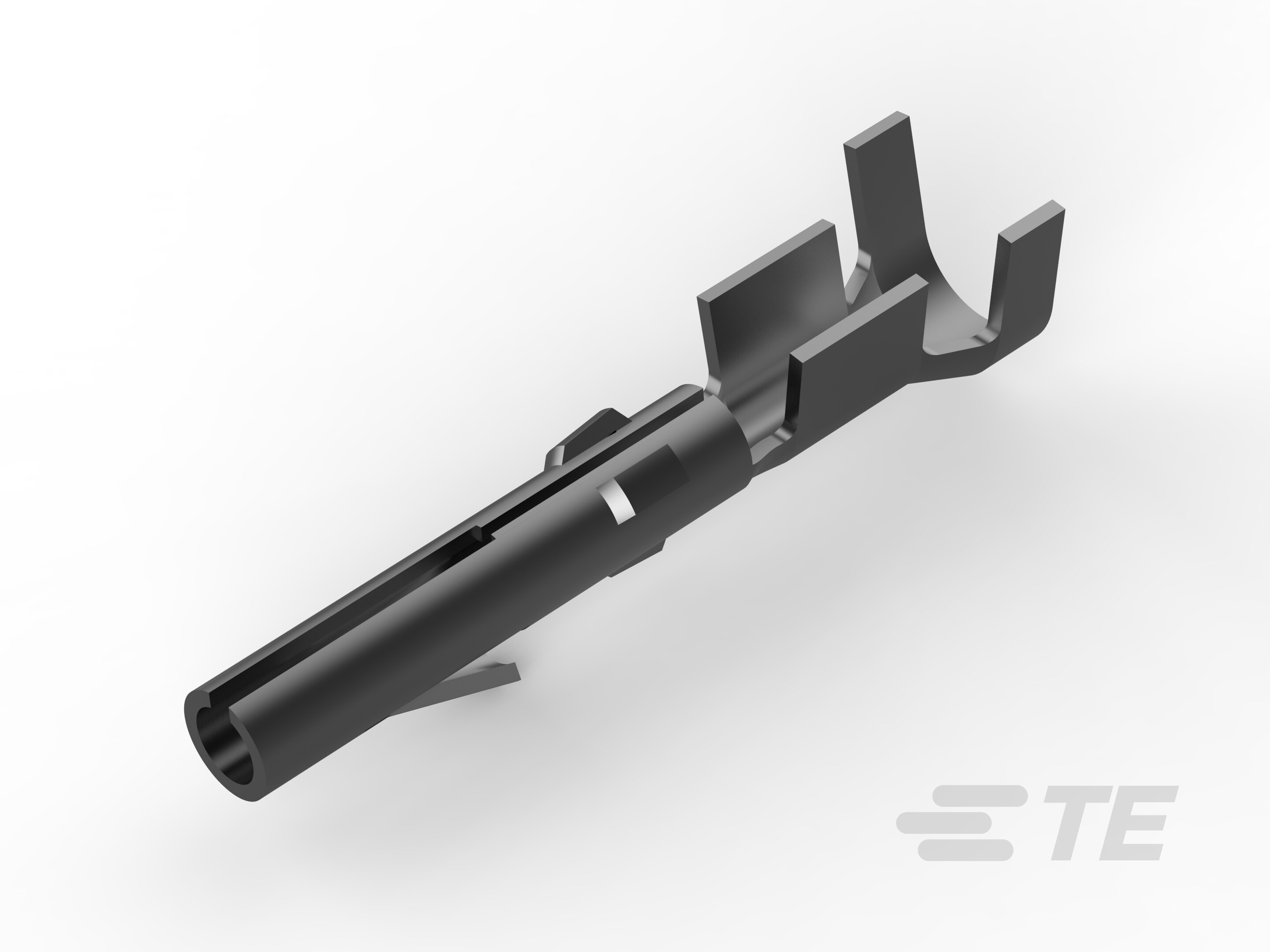

Socket Contact, Tin, Locking Lance Contact Retention, 20 – 17 AWG, .5 – 1 mm² Wire, Crimp, Phosphor Bronze, Power, Commercial MATE-N-LOK
163304-4
Socket Contact, Tin, Locking Lance Contact Retention, 20 – 17 AWG, .5 – 1 mm² Wire, Crimp, Phosphor Bronze, Power, Commercial MATE-N-LOK
-
- MATE-N-LOK
- Commercial MATE-N-LOK
- TE Internal #: 163304-4
- TE Internal Description: SOCKET MATEN-LOK
-
Contact Type : Socket
-
Contact Mating Area Plating Material : Tin
-
Wire Contact Termination Area Plating Material : Pre-Tin
-
Contact Retention Within Housing : With
-
Contact Retention Type Within Housing : Locking Lance
Documents
Product Drawings
- POCKET MATE-N-LOK ENG_CD_163304_D2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_163304-4_D.pdf English
- 3D_CVM_CVM_163304-4_J.pdf 3D
- Customer View Model ENG_CVM_CVM_163304-4_J.2d_dxf.zip English
- ENG_CVM_CVM_163304-4_J.3d_igs.zip English
- ENG_CVM_CVM_163304-4_J.3d_stp.zip English
- ENG_CVM_163304-4_D.3d_igs.zip English
- ENG_CVM_163304-4_D.3d_stp.zip English
- ENG_CVM_163304-4_D.2d_dxf.zip English
Product Specifications
- Application Specification ENG_SS_114-1012_H.pdf English
- Product Specification ENG_SS_108-1000_G.pdf English
