1612050-9

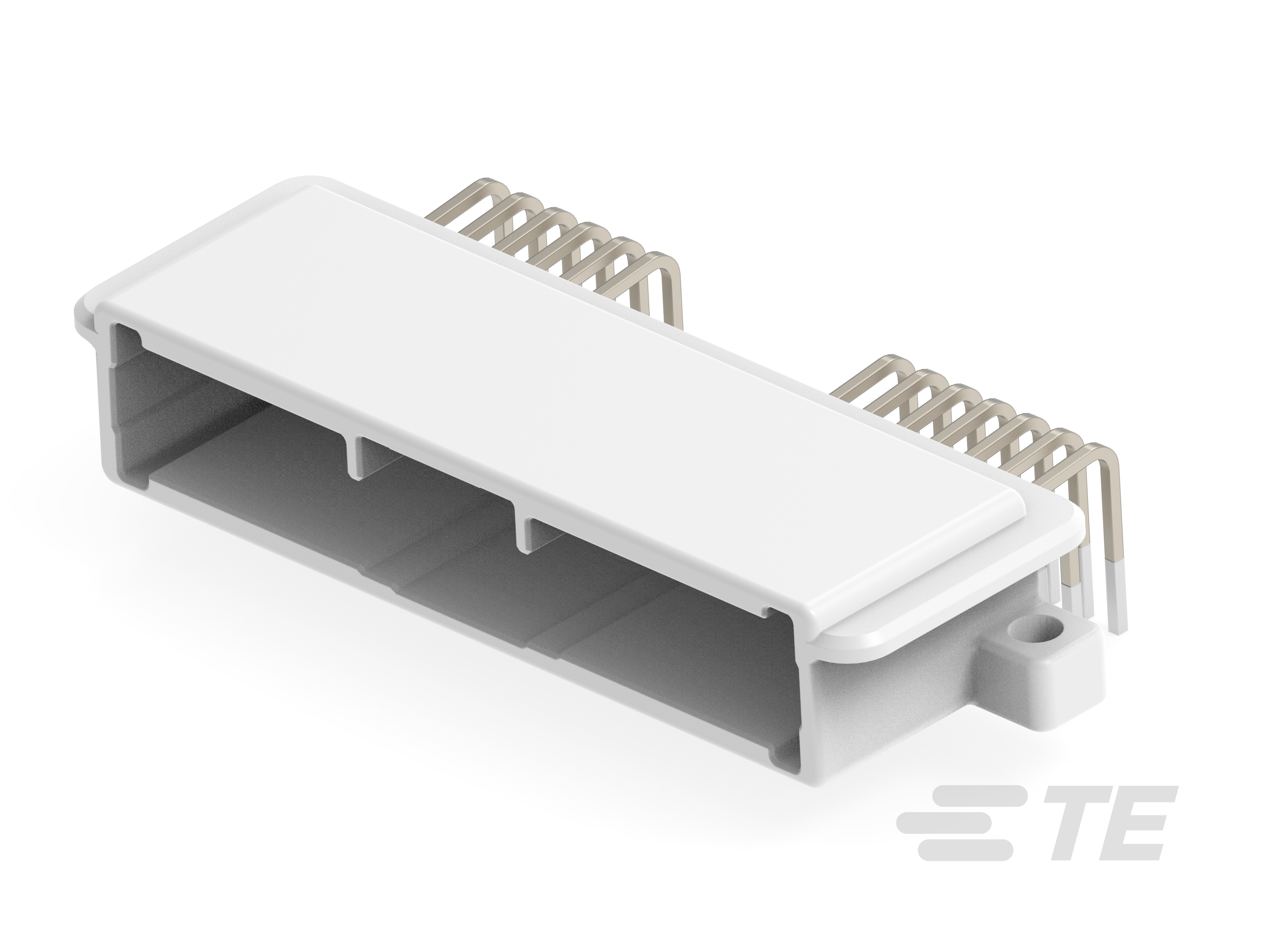

Horizontal, Wire-to-Board, 32 Position, 2 Rows, 2.2mm [.086in] Centerline, Gold (Au) / Tin (Sn), Printed Circuit Board, 0.64/025 Connector System
1612050-9
Horizontal, Wire-to-Board, 32 Position, 2 Rows, 2.2mm [.086in] Centerline, Gold (Au) / Tin (Sn), Printed Circuit Board, 0.64/025 Connector System
-
- AMP
- 0.64/025 Connector System
- TE Internal #: 1612050-9
- TE Internal Description: 025 LOW PROFILE 32POS CAP ASSY 6 Au
- All Signal Header (240)
-
PCB Mount Orientation : Horizontal
-
Termination Method to PCB : Through Hole - Solder
-
Sealable : No
-
Connector & Contact Terminates To : Printed Circuit Board
-
Circuit Application : Signal
Documents
Product Drawings
- 025 32POS LOW PROFILE CAP HOUSING ASSY ENG_CD_1612050_B2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1612050-9_K.pdf 3D
- Customer View Model ENG_CVM_CVM_1612050-9_K.2d_dxf.zip English
- ENG_CVM_CVM_1612050-9_K.3d_igs.zip English
- ENG_CVM_CVM_1612050-9_K.3d_stp.zip English
Product Specifications
- Qualification Test Report JPN_SS_501-5482_O.tif Japanese
- JPN_SS_501-5482_O.pdf Japanese
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_411-78045_A.pdf English
