Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

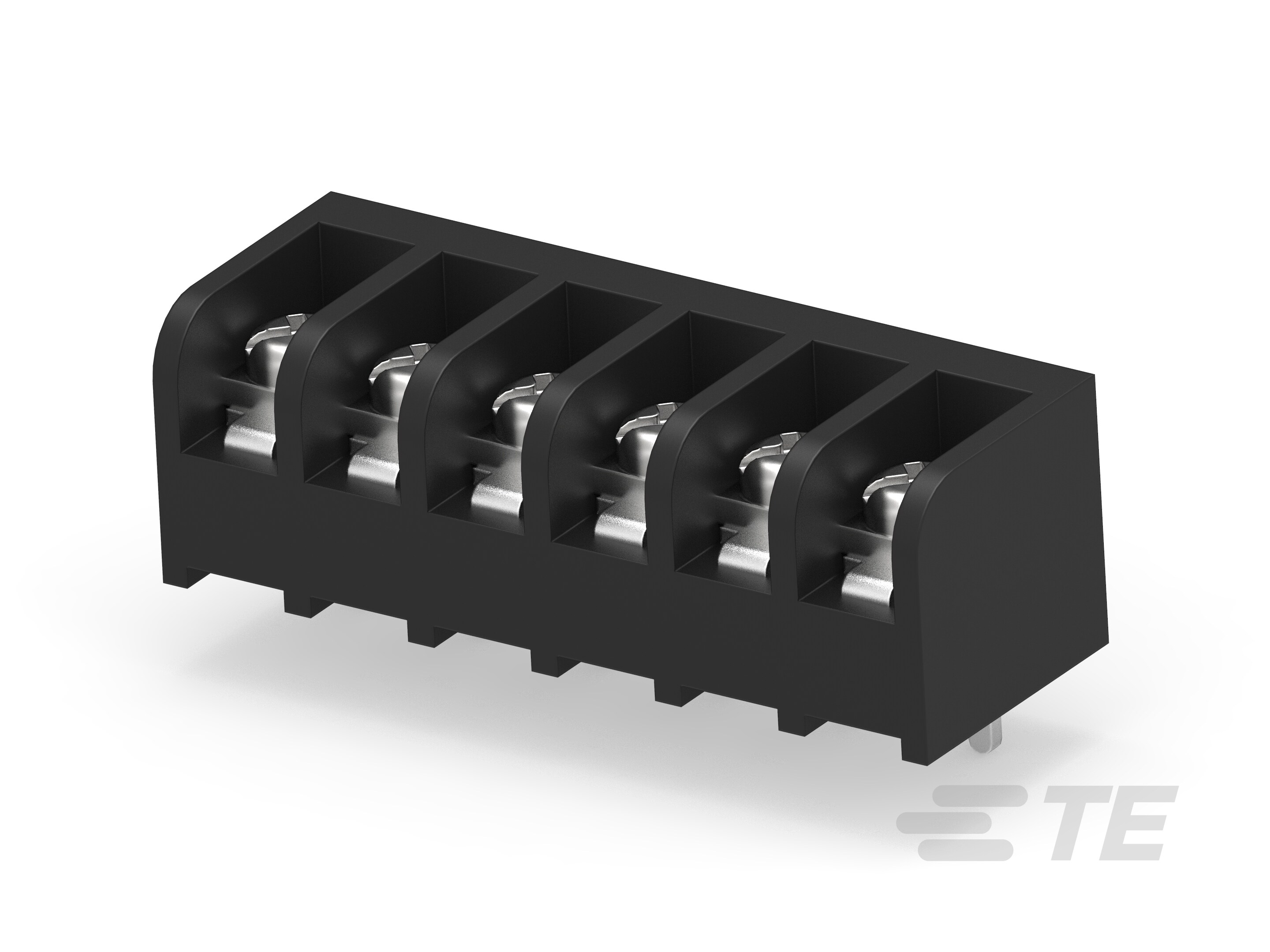

• Block Style : Flat Bottom with standoffs

• Connector System : Wire-to-Board

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Levels : 1

• Number of Positions : 6

• Number of Rows : 1

• Operating Voltage (V): 300

• Product Orientation : Vertical

• Primary Product Color : Black

• Barrier Strip Style : Tri-Barrier

• Mating Tab Width : 1.2 mm [ .047 in ]

• PCB Contact Termination Area Plating Material : Tin

• Mating Tab Thickness : .79 mm [ .031 in ]

• Contact Base Material : Copper Alloy

• Contact Current Rating (Max) (A): 10

• Bottom Termination Type : Printed Circuit Pin

• Screw Head Type : Wire Clamp Combo Head

• Thread Size : M3

• Screw Material : Steel

• Screw Plating Material : Zinc

• Mounting Options : None

• Top Termination Type : Wire Clamp Combo Head

• Connector Mounting Type : Board Mount

• Housing Material : Polyamide

• Centerline (Pitch) : 6.35 mm [ .25 in ]

• Product Length : 39.3 mm [ 1.55 in ]

• Wire Size (AWG): 30 – 16

• Wire Size (mm²): .05 – 1.4

• Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]

• Circuit Application : Power

• UL Flammability Rating : UL 94V-0
