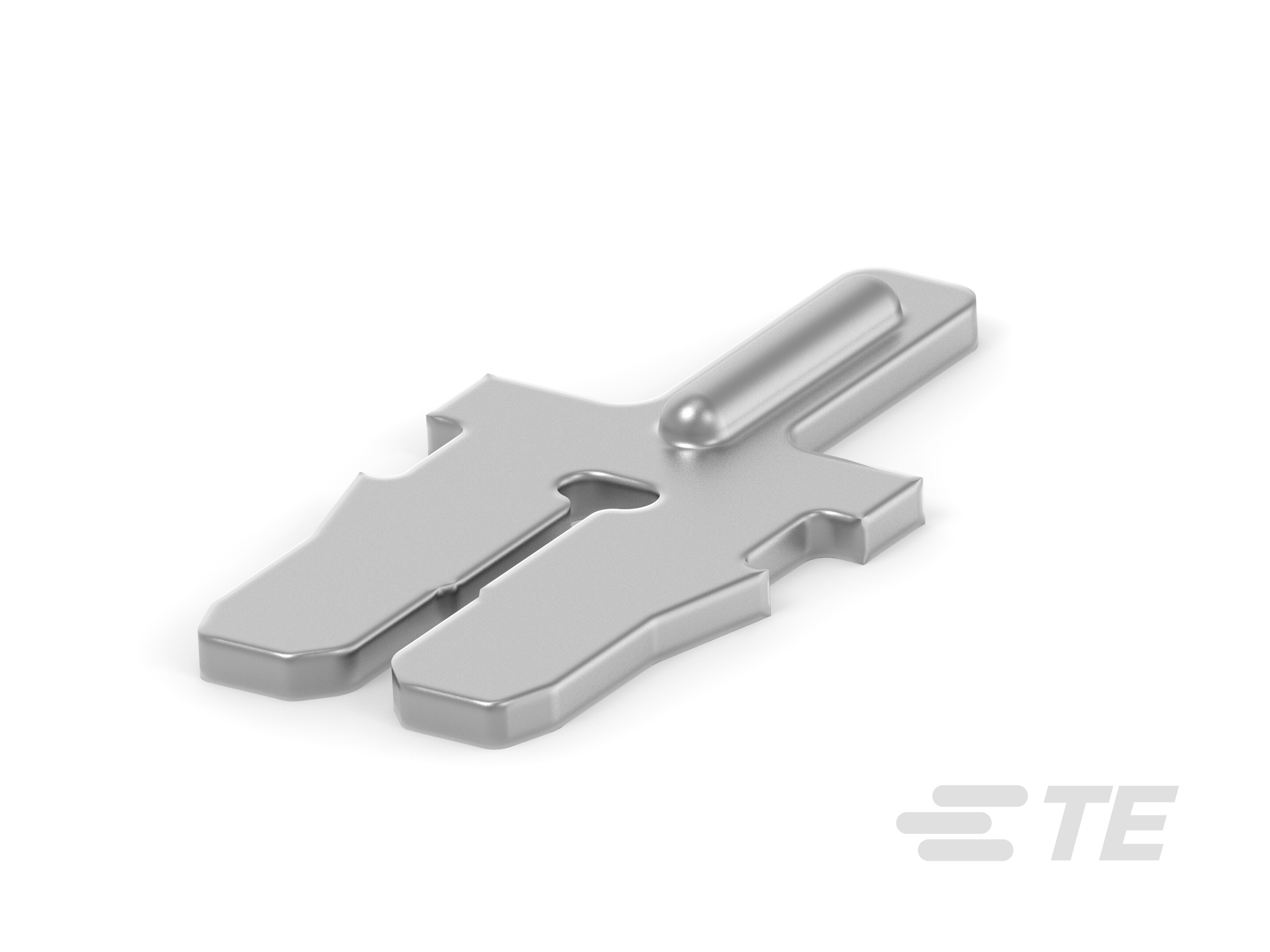

1534681-1
Solder Post, .27 – .34 mm Magnet Wire, 30 – 26 AWG Magnet Wire, Insulation Displacement (IDC), Tin Plating, MAG-MATE, Magnet Wire Terminals
1534681-1
Solder Post, .27 – .34 mm Magnet Wire, 30 – 26 AWG Magnet Wire, Insulation Displacement (IDC), Tin Plating, MAG-MATE, Magnet Wire Terminals
-
- MAG-MATE
- TE Internal #: 1534681-1
- TE Internal Description: MAG-MATE CONTACT.187 WITH SOLDER PIN
-
Magnet Wire Terminal Type : Solder Post
-
Compatible With Cavity Size : Size 1
-
Magnet Wire Size (mm): .27 – .34
-
Magnet Wire Size (AWG): 30 – 26
-
Termination Method to Wire & Cable : Insulation Displacement (IDC)
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1534681-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1534681-1_A.2d_dxf.zip English
- ENG_CVM_CVM_1534681-1_A.3d_igs.zip English
- ENG_CVM_CVM_1534681-1_A.3d_stp.zip English
Datasheets & Catalog Pages
- Magnet Wire Terminals & Splices ENG_DS_82221_MagnetWire_0616.pdf English
- CAVITY FOR MAG-MATE CONTACT WITH SOLDER PIN ENG_DS_411-18516_A2.pdf English
Product Specifications
- Application Specification ENG_SS_114-2140_C.pdf English
- Product Specification ENG_SS_108-2012_J4.pdf English
