152422-1

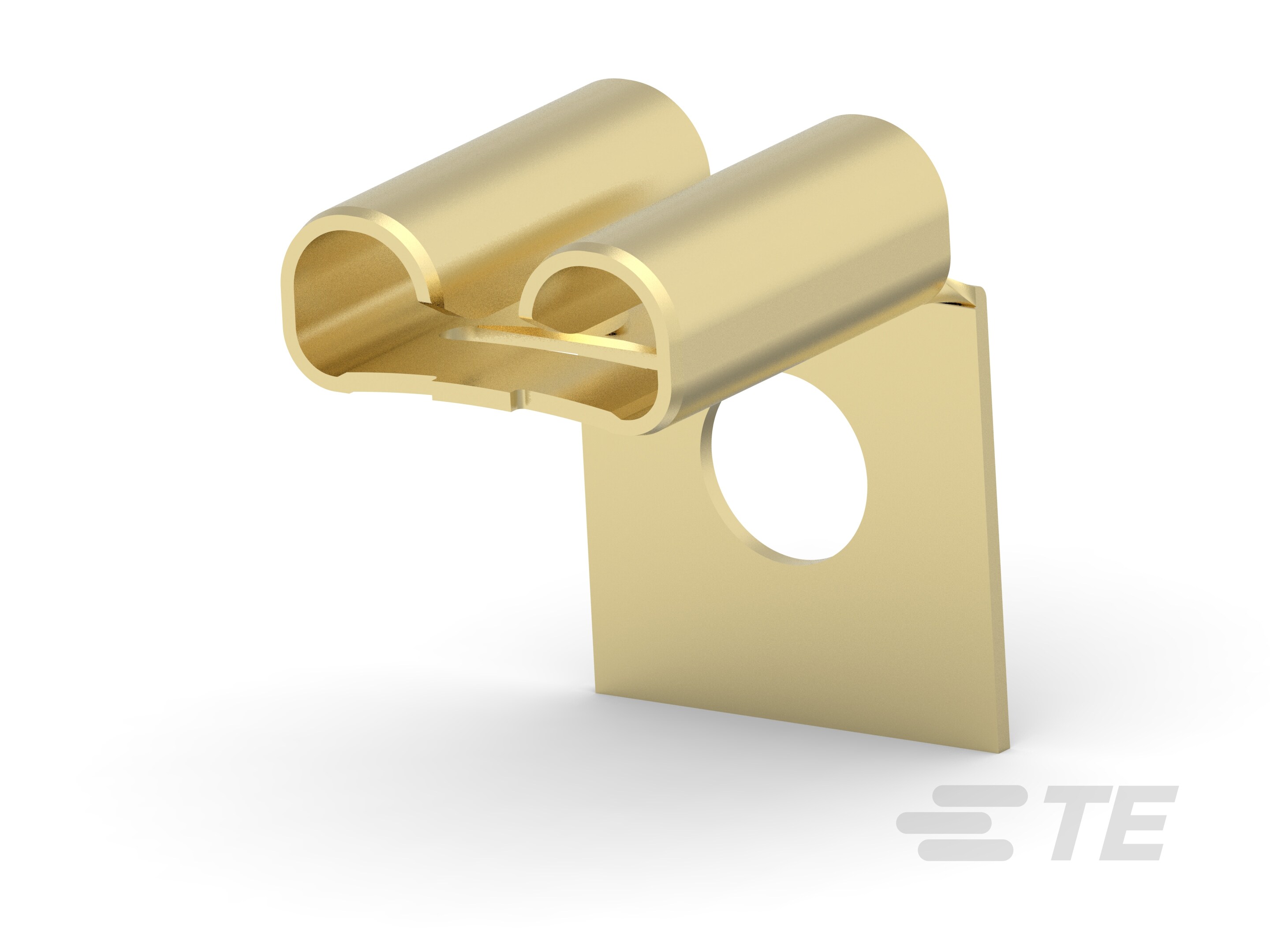

Receptacle, 3.18 mm [.125 in] PCB Hole, Through Hole - Screw, Unplated Plating, Box, Terminates To Printed Circuit Board, FASTON 250, PCB Terminals
152422-1
Receptacle, 3.18 mm [.125 in] PCB Hole, Through Hole - Screw, Unplated Plating, Box, Terminates To Printed Circuit Board, FASTON 250, PCB Terminals
-
- FASTON
- FASTON 250
- TE Internal #: 152422-1
- TE Internal Description: 250 FASTON,TAB,ADAPTER,BR
-
PCB Terminal Type : Receptacle
-
PCB Hole Diameter : 3.18 mm [ .125 in ]
-
Termination Method to PCB : Through Hole - Screw
-
Terminal Plating Material : Unplated
-
Contact Underplating Material : None
Documents
Product Drawings
- faston tab adaptor English
- faston tab adaptor ENG_CD_152422_D.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_152422-1_H.pdf 3D
- Customer View Model ENG_CVM_CVM_152422-1_H.2d_dxf.zip English
- ENG_CVM_CVM_152422-1_H.3d_igs.zip English
- ENG_CVM_CVM_152422-1_H.3d_stp.zip English
Datasheets & Catalog Pages
- FASTON Tabs ENG_CS_82004_FASTON_Tabs_0311.pdf English
