This product is not currently available. For more information, including distributor inventory, please contact us.

1416200-9

Active

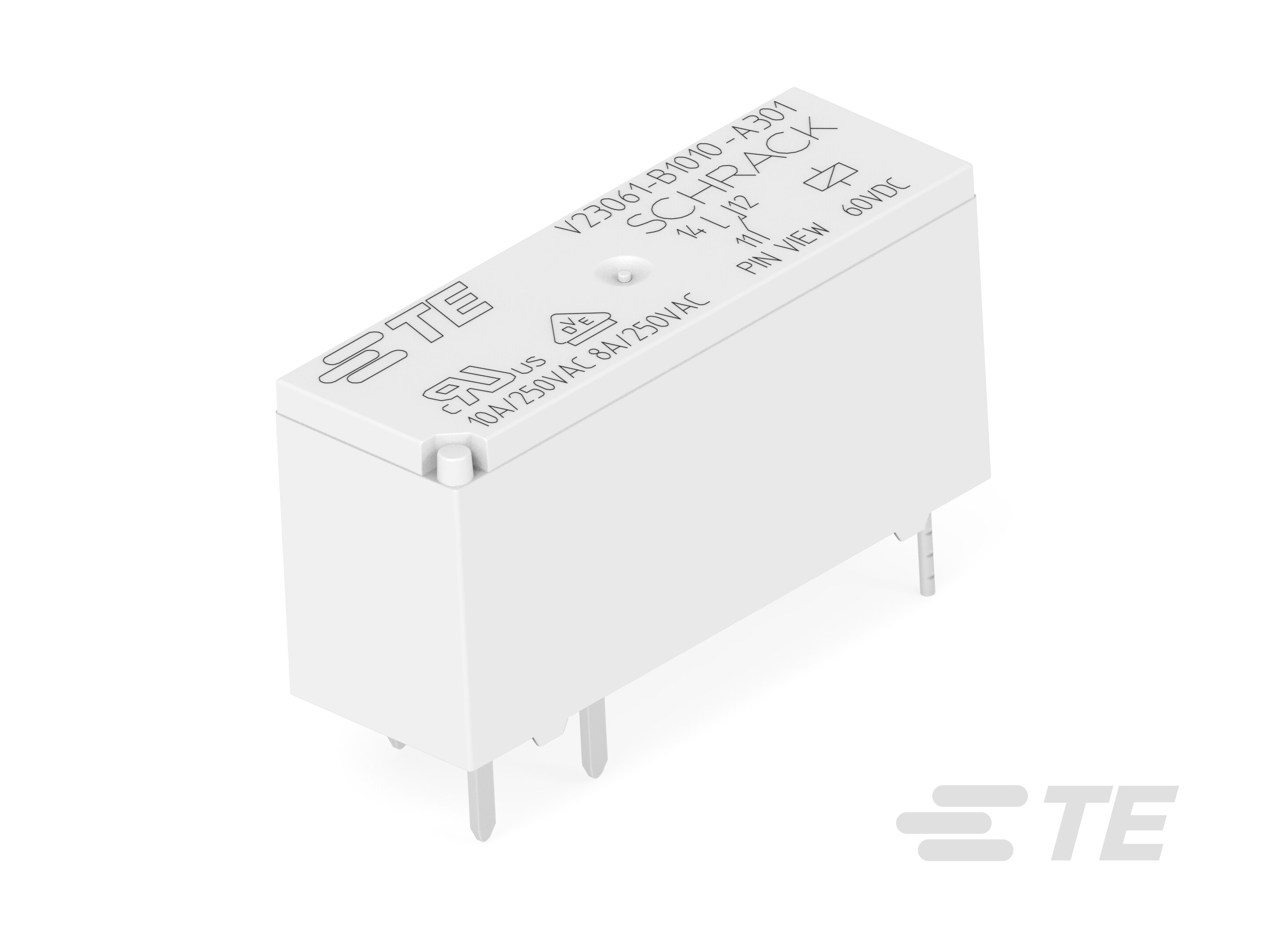

General Purpose Power Relay, DC, Monostable, 1 Form C SPDT-CO, 8 A Contact Rating, 60 VDC Coil Voltage, SCHRACK Low Power PCB Relays

1416200-9

Active

General Purpose Power Relay, DC, Monostable, 1 Form C SPDT-CO, 8 A Contact Rating, 60 VDC Coil Voltage, SCHRACK Low Power PCB Relays

- SCHRACK
- SCHRACK Low Power PCB Relays

TE Internal #: 1416200-9
TE Internal Description: V23061B1010A301
Alias #: V23061B1010A301

Relay & Contactor Type : General Purpose Power Relay
Current Type : DC
Coil Magnetic System : Monostable
Contact Arrangement : 1 Form C SPDT-CO
Contact Current Rating (A): 8

See All Features

More Less

Get Free Samples
Compatible Parts & Tooling

Documents

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_1416200-9_A.pdf 3D
Customer View Model ENG_CVM_CVM_1416200-9_A.2d_dxf.zip English
ENG_CVM_CVM_1416200-9_A.3d_igs.zip English
ENG_CVM_CVM_1416200-9_A.3d_stp.zip English

Datasheets & Catalog Pages

Miniature Power PCB Relay MSR ENG_DS_MSR_A1.pdf English

Product Specifications

Definitions General Purpose Relays ENG_SS_Definitions_Relays_2.pdf English

Agency Approvals

VDE Certificate ENG_AAD_VDE_CERT_40017849_C1_11.pdf English

UL ENG_AAD_UL_CERT_E214025_19901022_C1_8.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Relay & Contactor Type : General Purpose Power Relay

Configuration Features

Coil Special Features : UL Coil Insulation Class A
Contact Number of Poles : 1
Contact Arrangement : 1 Form C SPDT-CO

Electrical Characteristics

Coil Resistance (Ω): 15265
Contact Switching Load (Min) : 100mA @ 12V
Contact Switching Voltage (Max) (VAC): 400
Contact Limiting Breaking Current (A): 8
Contact Limiting Continuous Current (A): 8
Contact Limiting Making Current (A): 10
Contact Limiting Short-Time Current (A): 8
Contact Current Rating (A): 8
Coil Voltage Rating (VDC): 60
Contact Voltage Rating (VAC): 250
Coil Power Rating DC (W): .236
Insulation Initial Dielectric Between Contacts & Coil (Vrms): 4000

Body Features

Product Weight : 9.4 g [ .388 oz ]
Enclosure Type : Flux Resistant Automatic Solder Capable & Washable

Contact Features

Contact Material : AgSnO2

Termination Features

Main Termination & Connection Type : Solder Pins
Coil Termination & Connection Type : Solder Pins

Mechanical Attachment

Product Mount Type : Board Mount

Dimensions

Product Height : 15 mm [ .59 in ]
Product Length : 30 mm [ 1.18 in ]
Product Width : 10 mm [ .393 in ]
Insulation Creepage Between Contact & Coil : 8 mm [ .315 in ]

Usage Conditions

Environmental Category of Protection : RTIII
Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
Environmental Ambient Temperature (Max) : 85 °C [ 185 °F ]

Operation/Application

Solder Process : Wave Solder Capable
Current Type : DC
Coil Magnetic System : Monostable

Packaging Features

Packaging Method : Tube

Other

Environmental Ambient Temperature Class (°C): 70 – 85
Contact Current Class (A): 16
Coil Power Rating Class (W): .2 – .3
Length Class (Mechanical) (mm): 25 – 30
Width Class (Mechanical) (mm): 8 – 10
