This product is not currently available. For more information, including distributor inventory, please contact us.

1393219-8

Active

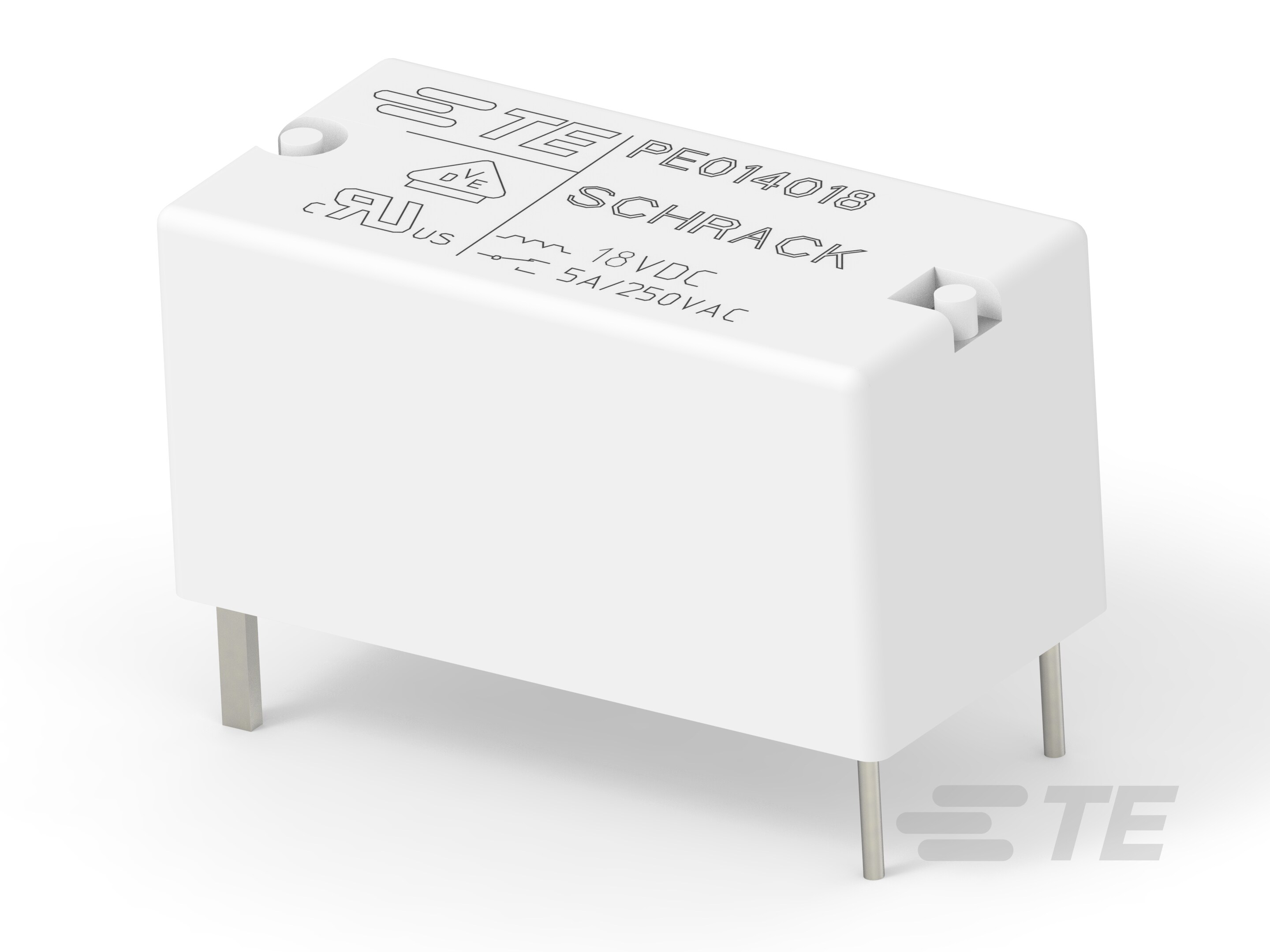

General Purpose Power Relay, DC, Monostable, 1 Form C SPDT-CO, 5 A Contact Rating, 18 VDC Coil Voltage, SCHRACK Miniature PCB Relay PE bistable

1393219-8

Active

General Purpose Power Relay, DC, Monostable, 1 Form C SPDT-CO, 5 A Contact Rating, 18 VDC Coil Voltage, SCHRACK Miniature PCB Relay PE bistable

- SCHRACK
- SCHRACK Miniature PCB Relay PE bistable

TE Internal #: 1393219-8
TE Internal Description: PE014018
Alias #: PE014018

Relay & Contactor Type : General Purpose Power Relay
Current Type : DC
Coil Magnetic System : Monostable
Contact Arrangement : 1 Form C SPDT-CO
Contact Current Rating (A): 5

See All Features

More Less

Compatible Parts & Tooling

Documents

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_1393219-8_C2.pdf 3D
Customer View Model ENG_CVM_CVM_1393219-8_C2.3d_igs.zip English
ENG_CVM_CVM_1393219-8_C2.3d_stp.zip English
ENG_CVM_CVM_1393219-8_C2.2d_dxf.zip English

Datasheets & Catalog Pages

Miniature PCB Relay PE ENG_DS_PE_A4.pdf English

Product Specifications

Definitions General Purpose Relays ENG_SS_Definitions_Relays_2.pdf English

Agency Approvals

VDE Certificate ENG_AAD_VDE_CERT_40011901_C1_7.pdf English

CQC_CERT_20002248690_C1 ENG_AAD_CQC_CERT_20002248690_C1_3.pdf English

UL ENG_AAD_UL_CERT_E214025_19980122_C1_5.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Relay & Contactor Type : General Purpose Power Relay

Configuration Features

Contact Number of Poles : 1
Contact Arrangement : 1 Form C SPDT-CO

Electrical Characteristics

Insulation Initial Resistance (MΩ): 10000000
Coil Resistance (Ω): 1545
Contact Switching Voltage (Max) (VAC): 400
Insulation Initial Dielectric Between Open Contacts (Vrms): 1000
Contact Limiting Breaking Current (A): 5
Contact Limiting Continuous Current (A): 5
Contact Limiting Making Current (A): 5
Contact Limiting Short-Time Current (A): 5
Contact Current Rating (A): 5
Coil Voltage Rating (VDC): 18
Contact Voltage Rating (VAC): 250
Coil Power Rating DC (W): .21
Insulation Initial Dielectric Between Contacts & Coil (Vrms): 4000

Body Features

Product Weight (oz): .1764
Enclosure Type : Flux Resistant Automatic Soldering

Contact Features

Contact Material : AgNi90/10

Termination Features

Main Termination & Connection Type : Solder Pins
Coil Termination & Connection Type : Solder Pins

Mechanical Attachment

Product Mount Type : Board Mount

Dimensions

Product Height : 10 mm [ .394 in ]
Product Length : 20 mm [ .787 in ]
Product Width : 10 mm [ .394 in ]
Insulation Creepage Between Contact & Coil : 4 mm [ .157 in ]
Insulation Clearance Between Contact & Coil : 3.2 mm [ .126 in ]

Usage Conditions

Environmental Category of Protection : RTII
Environmental Ambient Temperature (Max) : 85 °C [ 185 °F ]

Operation/Application

Current Type : DC
Coil Magnetic System : Monostable

Packaging Features

Packaging Method : Carton, Tube

Other

Environmental Ambient Temperature Class (°C): 70 – 85
Contact Current Class (A): 16
Coil Power Rating Class (W): .2 – .3
Height Class (Mechanical) (mm): 9 – 10
Length Class (Mechanical) (mm): 16 – 20
Width Class (Mechanical) (mm): 8 – 10
