1376688-1

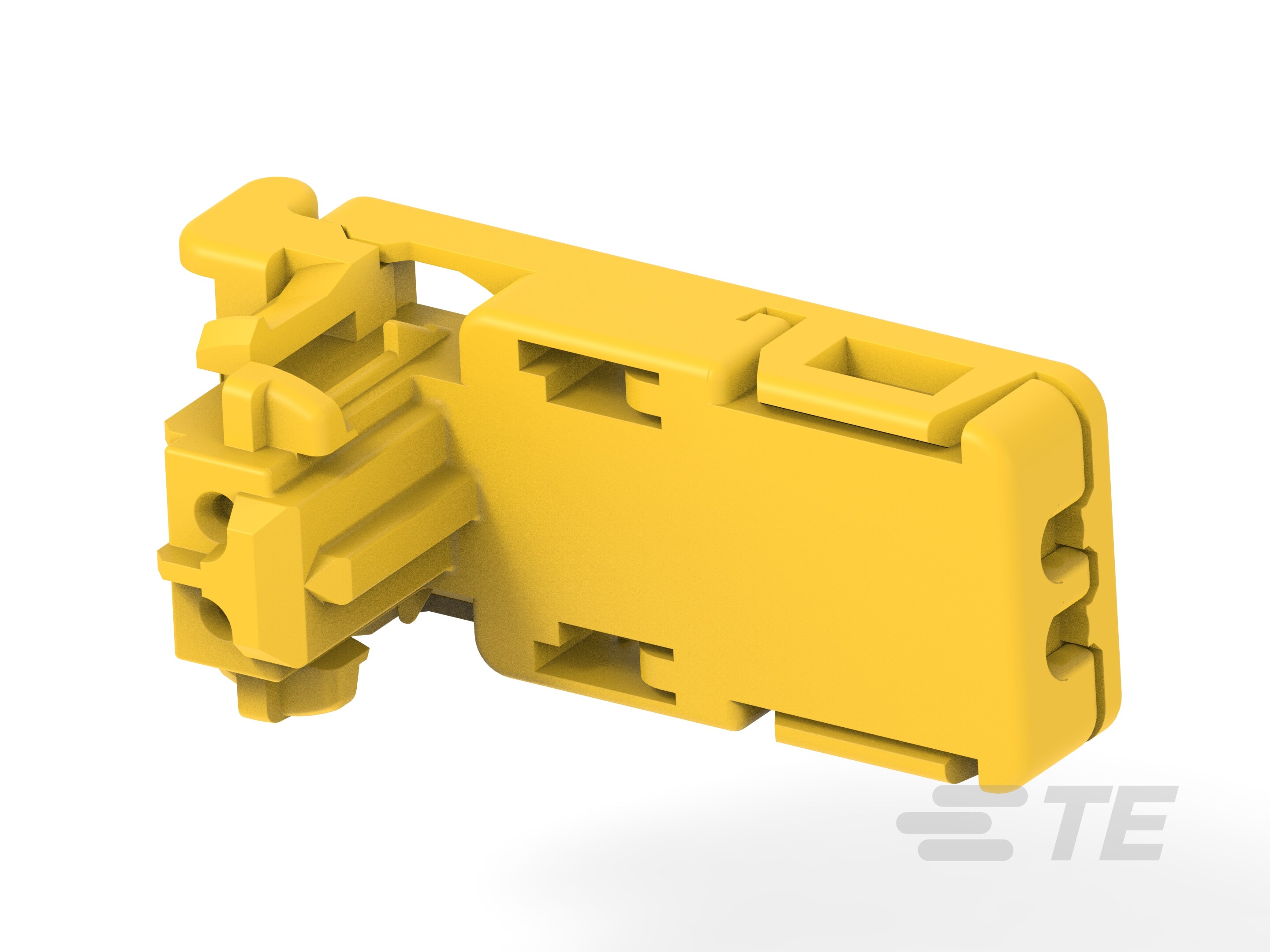

Housing for Female Terminals, Wire-to-Board / Wire-to-Device, 2 Position, 3.1 mm [.122 in] Centerline, Yellow, AMP Auto Squib Products
1376688-1
Housing for Female Terminals, Wire-to-Board / Wire-to-Device, 2 Position, 3.1 mm [.122 in] Centerline, Yellow, AMP Auto Squib Products
-
- AMP
- AMP Auto Squib Products
- TE Internal #: 1376688-1
- TE Internal Description: 11DIA SQUIB SLIM PLUG HSG YELL
-
Connector System : Wire-to-Board, Wire-to-Device
-
Number of Positions : 2
-
Connector & Housing Type : Housing for Female Terminals
-
Centerline (Pitch) : 3.1 mm [ .122 in ]
-
Sealable : No
Documents
Product Drawings
- 11DIA SQUIB CONNECTOR SLIM TYPE PLUG HOUSING Japanese
- 11DIA SQUIB CONNECTOR SLIM TYPE PLUG HOUSING JPN_CD_1376688_C.pdf Japanese
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1376688-1_E.pdf 3D
- Customer View Model ENG_CVM_CVM_1376688-1_E.2d_dxf.zip English
- ENG_CVM_CVM_1376688-1_E.3d_igs.zip English
- ENG_CVM_CVM_1376688-1_E.3d_stp.zip English
Product Specifications
- 11DIA SQUIB CONNECTOR CHECKER ENG_SS_411-78048_O.pdf English
- JPN_SS_411-78048_O.tif Japanese
- Product Specification JPN_SS_108-5679_B2.tif Japanese
- JPN_SS_108-5679_B2.pdf Japanese
- JPN_SS_108-5679-1_B2.tif Japanese
- JPN_SS_108-5679-1_B2.pdf Japanese
Instruction Sheets
- Instruction Sheet (non U.S.) ENG_SS_411-5973_O.pdf English
- ENG_SS_411-5973_O.tif English
