132072-2

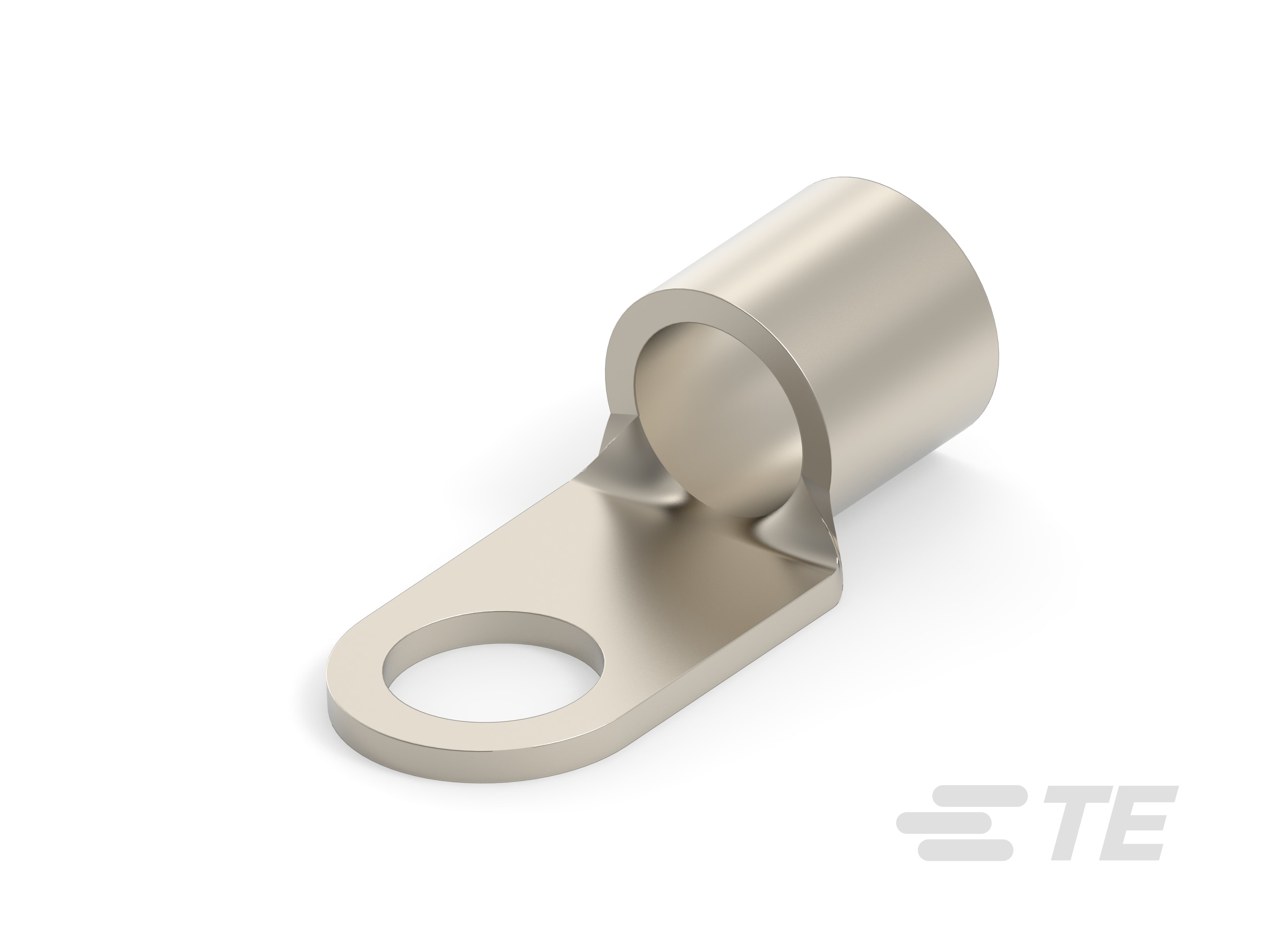

Closed Ring Tongue Terminal, 2 AWG, M10 Stud, 10 mm / 10.5 mm [.413 in] Stud Diameter, Closed Barrel, Straight, Nickel Plating, Uninsulated
132072-2
Closed Ring Tongue Terminal, 2 AWG, M10 Stud, 10 mm / 10.5 mm [.413 in] Stud Diameter, Closed Barrel, Straight, Nickel Plating, Uninsulated
-
- SOLISTRAND
- TE Internal #: 132072-2
- TE Internal Description: TERM, RING,STRAT, SOLIS, HR, 2, M10
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 2
-
Wire Size (mm²): 34 – 35
-
Wire Size (CMA): 52600 – 83700
-
Stud Size : M10
Documents
Product Drawings
- TERMINAL STRATO-THERM RING TONGUE ENG_CD_132072_B1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_132072-2_C.pdf 3D
- Customer View Model ENG_CVM_CVM_132072-2_C.2d_dxf.zip English
- ENG_CVM_CVM_132072-2_C.3d_igs.zip English
- ENG_CVM_CVM_132072-2_C.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-32046_A_108-32046.pdf English
