1241004-1

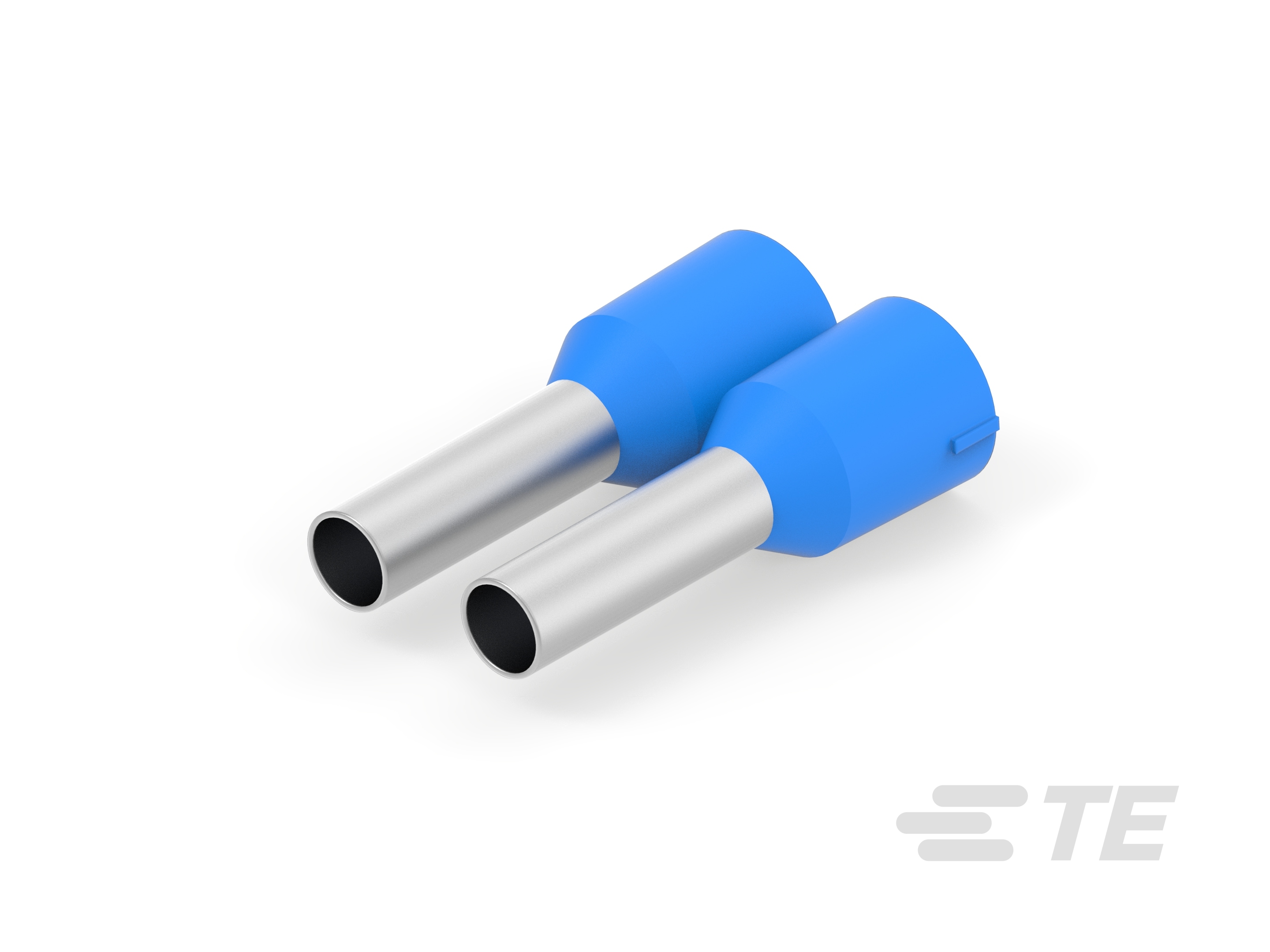

Ferrule, 13 AWG, 2.5 mm² Wire, 5178 CMA, Closed Barrel, Tin Plating, 14.5 mm [.571 in] Length, Box, Discrete Wire, Stranded Wire, Fully Insulated
1241004-1
Ferrule, 13 AWG, 2.5 mm² Wire, 5178 CMA, Closed Barrel, Tin Plating, 14.5 mm [.571 in] Length, Box, Discrete Wire, Stranded Wire, Fully Insulated
- TE Internal #: 1241004-1
- TE Internal Description: ADERENDH2,5M BLAU
- Alias #: E69764-000 AMPS-0-1241004-1
-
Crimp Wire Terminal Type : Ferrule
-
Compatible Insulation Diameter Range : 4 mm [ .16 in ]
-
Wire Size (AWG): 13
-
Wire Size (mm²): 2.5
-
Wire Size (CMA): 5178
Documents
Product Drawings
- TUBULAR END-SLEEVE WITH PLASTIC SLEEVE, STRIP FORM, 2.5 SQmm. English
- TUBULAR END-SLEEVE WITH PLASTIC SLEEVE, STRIP FORM, 2.5 SQmm. ENG_CD_1241004_B3.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_1241004-1_B1.pdf English
- 3D_CVM_CVM_1241004-1_B.pdf 3D
- Customer View Model ENG_CVM_CVM_1241004-1_B.2d_dxf.zip English
- ENG_CVM_CVM_1241004-1_B.3d_igs.zip English
- ENG_CVM_CVM_1241004-1_B.3d_stp.zip English
- ENG_CVM_1241004-1_B1.2d_dxf.zip English
- ENG_CVM_1241004-1_B1.3d_igs.zip English
- ENG_CVM_1241004-1_B1.3d_stp.zip English
Datasheets & Catalog Pages
- BUCHANAN TERMINAL BLOCKS CATALOG - EUROSTYLE TERMINAL BLOCKS ENG_CS_1308389_EUROSTYLE_TERMINAL_BLOCKS_0607.pdf English
- ENG_CS_1654379_Wire_Ferrules_0911.pdf English
- WIRE END FERRULES ENG_DS_6-1773984-8_2011.pdf English
