1217421-1

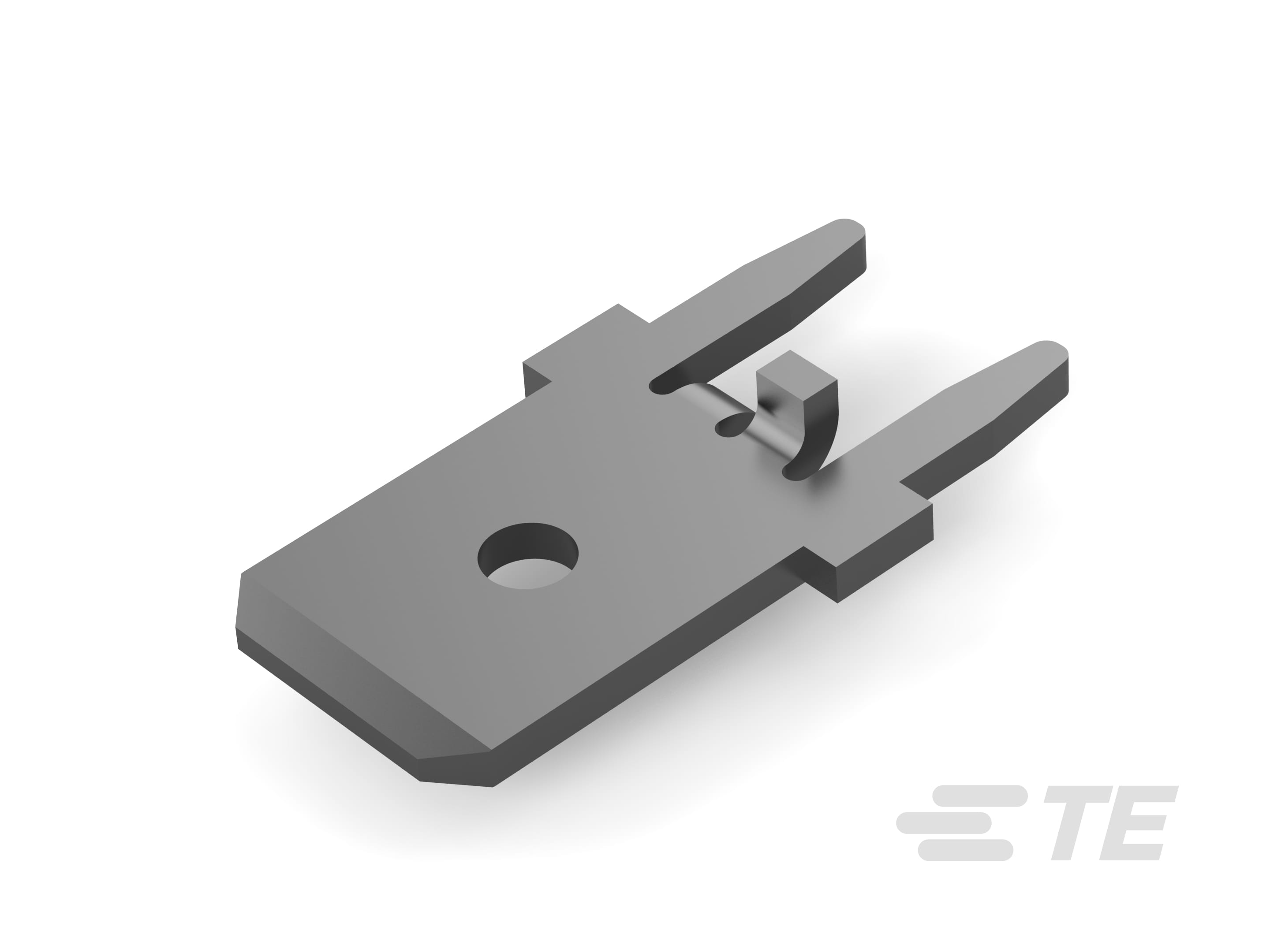

Tab, Mating Tab Width 6.35 mm [.25 in], PCB Hole Diameter 1.4 mm [.055 in], Through Hole - Solder, Tin Plating, Brass, Bag, FASTON 250, PCB Terminals
1217421-1
Tab, Mating Tab Width 6.35 mm [.25 in], PCB Hole Diameter 1.4 mm [.055 in], Through Hole - Solder, Tin Plating, Brass, Bag, FASTON 250, PCB Terminals
-
- FASTON
- FASTON 250
- TE Internal #: 1217421-1
- TE Internal Description: 250 FASTON,PCB TAB,TNBR
-
PCB Terminal Type : Tab
-
PCB Thickness (Recommended) : 1.57 mm [ .062 in ]
-
Mating Tab Width : 6.35 mm [ .25 in ]
-
Mating Tab Thickness : .81 mm [ .032 in ]
-
PCB Hole Diameter : 1.4 mm [ .055 in ]
