1217088-1

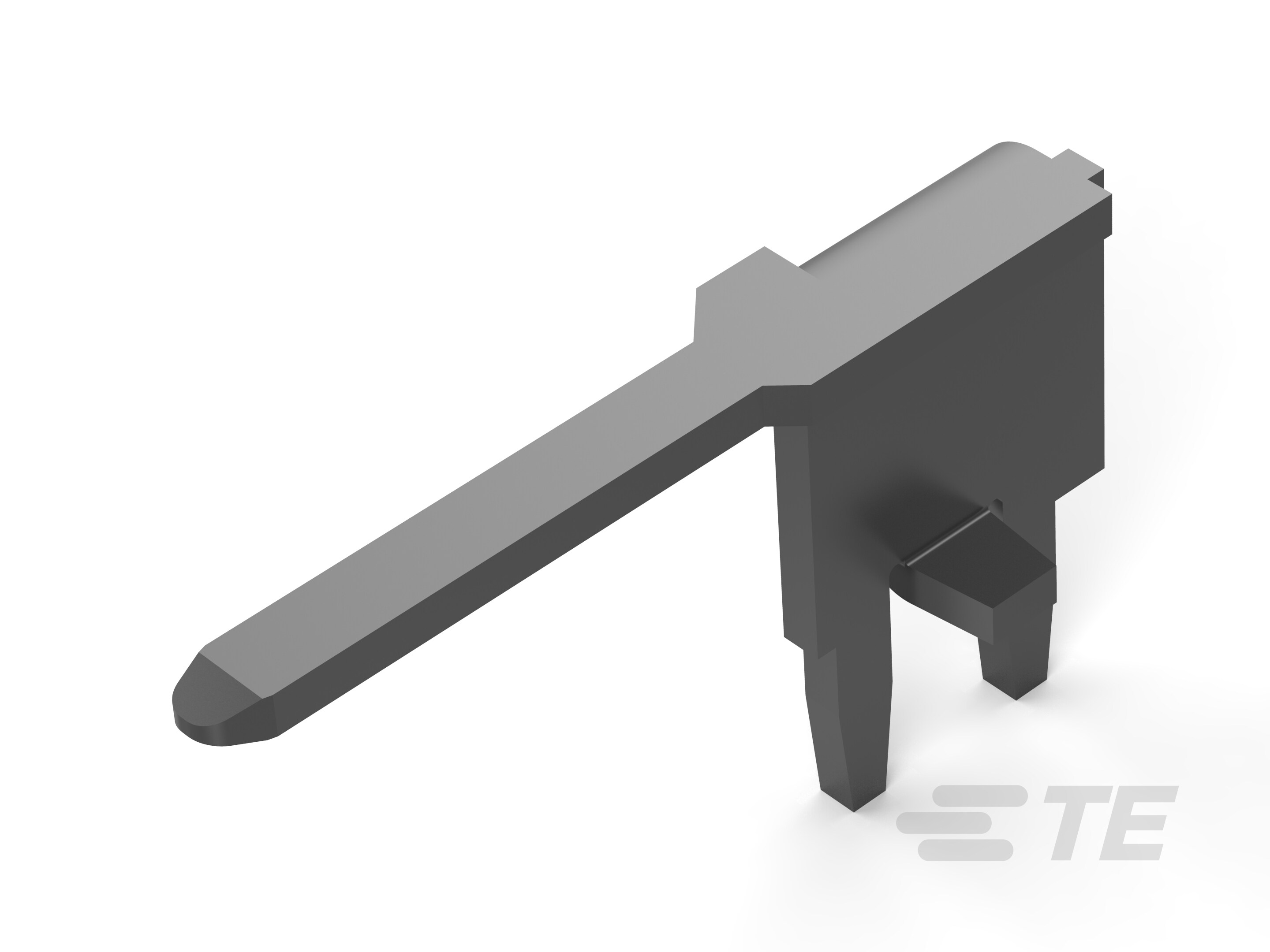

Tab, 1.52 mm [.06 in] Tab Width, 1.4 mm [.055 in] PCB Hole, Through Hole - Solder, Tin Plating, Reel, PCB Terminals
1217088-1
Tab, 1.52 mm [.06 in] Tab Width, 1.4 mm [.055 in] PCB Hole, Through Hole - Solder, Tin Plating, Reel, PCB Terminals
- TE Internal #: 1217088-1
- TE Internal Description: FASTON SPECIAL PCB TAB TPBR
-
PCB Terminal Type : Tab
-
PCB Thickness (Recommended) : 3.18 mm [ .125 in ]
-
Mating Tab Width : 1.52 mm [ .06 in ]
-
Mating Tab Thickness : .81 mm [ .032 in ]
-
PCB Hole Diameter : 1.4 mm [ .055 in ]
Documents
Product Drawings
- TAB, SPECIAL FOR P.C. BOARD ENG_CD_1217088_J_baseFilename.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1217088-1_K_c-1217088-1-k-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_1217088-1_K_c-1217088-1-k.2d_dxf.zip English
- ENG_CVM_CVM_1217088-1_K_c-1217088-1-k.3d_igs.zip English
- ENG_CVM_CVM_1217088-1_K_c-1217088-1-k.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-2115_F3.pdf English
