1-2336396-2

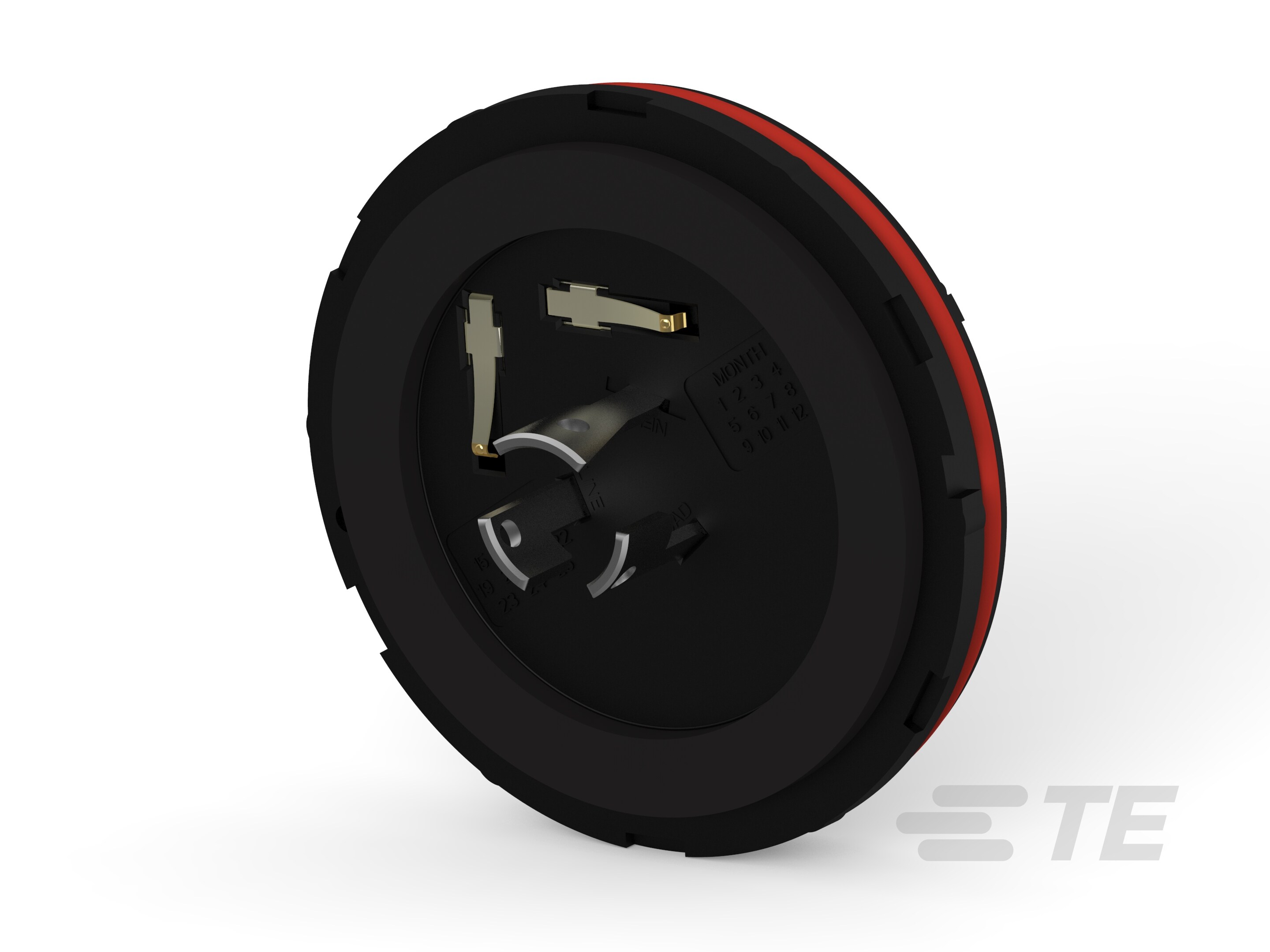

81 mm [3.19 in] Diameter, Sleeve Compatible / Vented, 5 Position, Sealable, Power & Signal, LUMAWISE Endurance N, Street Lighting Base Assemblies
1-2336396-2
81 mm [3.19 in] Diameter, Sleeve Compatible / Vented, 5 Position, Sealable, Power & Signal, LUMAWISE Endurance N, Street Lighting Base Assemblies
-
- LUMAWISE
- LUMAWISE Endurance N
- TE Internal #: 1-2336396-2
- TE Internal Description: ASSEMBLY, LIGHT CONTROLLER BASE, W/VENT
-
Product Diameter : 81 mm [ 3.19 in ]
-
Lighting Connector Features Included : Sleeve Compatible, Vented
-
Number of Positions : 5
-
Sealable : Yes
-
Circuit Application : Power & Signal
Documents
Product Drawings
- BASE ASSEMBLY, LIGHT CONTROLLER, SLEEVE COMPATIBLE ENG_CD_2336396_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-2336396-2_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1-2336396-2_A.2d_dxf.zip English
- ENG_CVM_CVM_1-2336396-2_A.3d_igs.zip English
- ENG_CVM_CVM_1-2336396-2_A.3d_stp.zip English
Datasheets & Catalog Pages
- LUMAWISE STREET LIGHT DIMMING AND CONTROL QUICK REFERENCE GUIDE ENG_DS_2-1773982-5_2009.pdf English
- LUMAWISE ENDURANCE N BASE WITH VENT CHI_DS_1-1773961-2_1018.pdf
- LUMAWISE ENDURANCE N BASE WITH VENT ENG_DS_1-1773961-2_1018.pdf English
Product Specifications
- Application Specification ENG_SS_114-32159_D.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERT_E66375_20160318_C1_5.pdf English
