Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

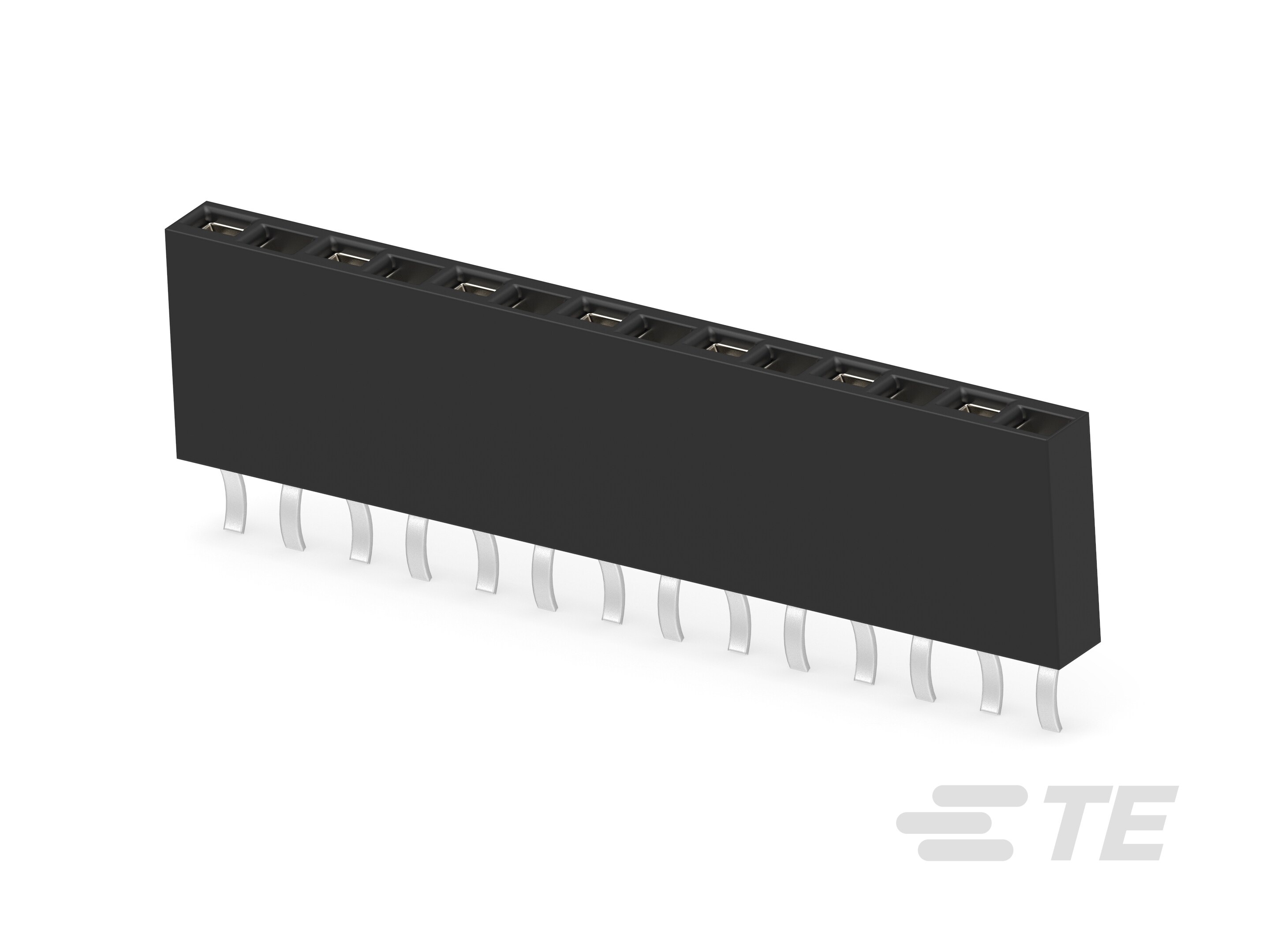

• PCB Connector Type : PCB Mount Receptacle

• Connector System : Board-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Stackable : Yes

• PCB Mount Orientation : Vertical

• Number of Positions : 14

• Number of Rows : 1

• Connector Profile : Standard

• Primary Product Color : Black

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Phosphor Bronze

• Contact Protection Type : Closed Entry Housing

• Contact Layout : Inline

• Contact Shape & Form : Square

• PCB Contact Termination Area Plating Material Thickness : 2.4 – 4 µm [ 94.488 – 157.48 µin ]

• Mating Square Post Dimension : .63 mm [ .024 in ]

• Mating Pin Diameter : .63 mm [ .024 in ]

• Contact Mating Area Plating Material : Gold (Au)

• Contact Type : Socket

• Contact Current Rating (Max) (A): 3

• Termination Post & Tail Length : 3.1 mm [ .122 in ]

• Rectangular Termination Post & Tail Thickness : .2 mm [ .008 in ]

• Rectangular Termination Post & Tail Width : .69 mm [ .027 in ]

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Retention Type : Retention Solder Tails

• PCB Mount Retention : With

• Connector Mounting Type : Board Mount

• Housing Material : Polyester - GF

• Mating Entry Location : Top

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Connector Height : 8.5 mm [ .335 in ]

• PCB Thickness (Recommended) : 1.6 mm [ .063 in ]

• Operating Temperature Range (°C): -65 – 125

• Operating Temperature Range (°F): -67 – 221, -85 – 257

• Solder Process Feature : Board Standoff

• UL Flammability Rating : UL 94V-0
