This product is not currently available. For more information, including distributor inventory, please contact us.

1-1744037-2

Active

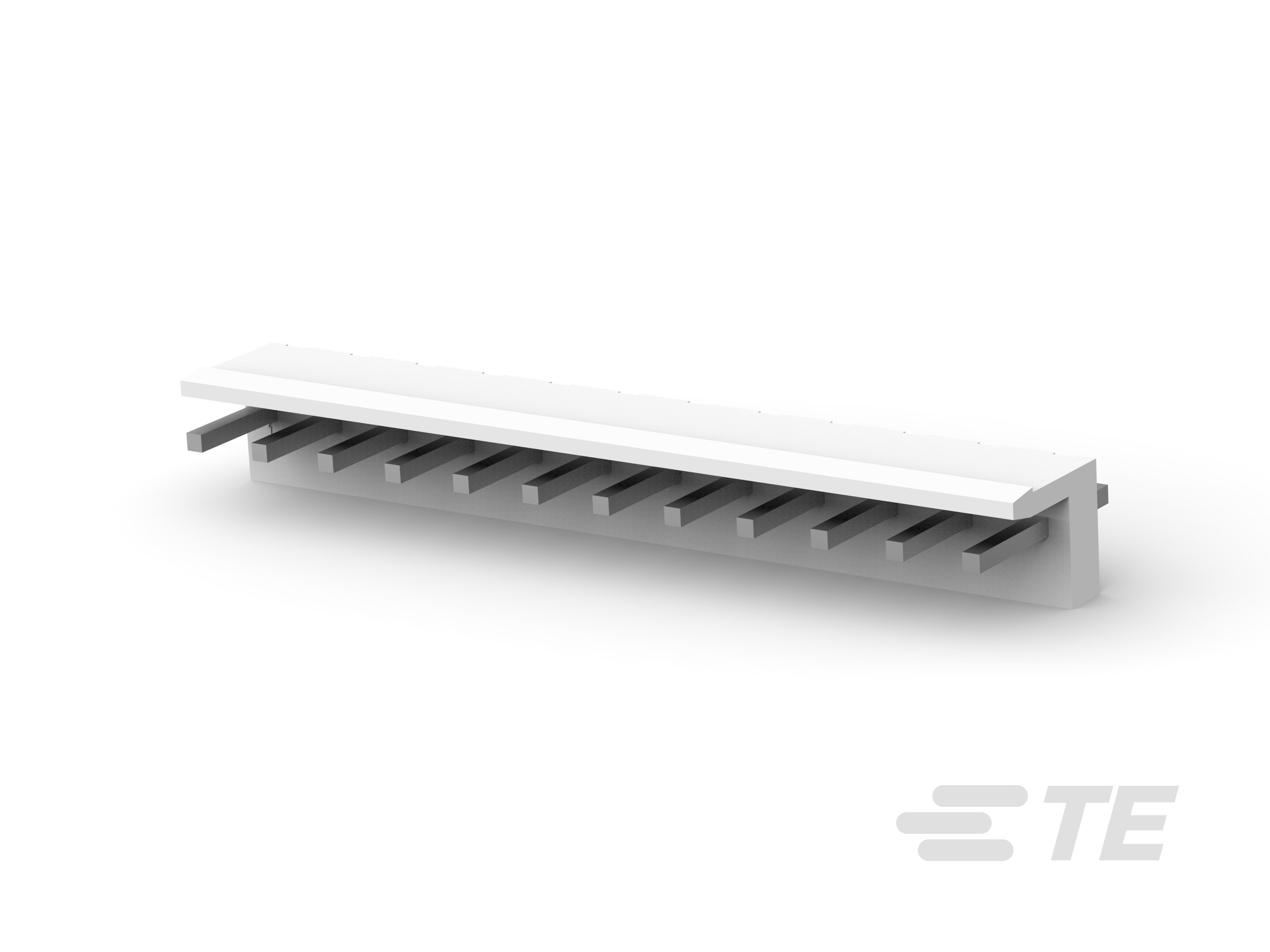

PCB Mount Header, Vertical, Wire-to-Board, 12 Position, 5.08 mm [.2 in] Centerline, Partially Shrouded, Tin (Sn), Through Hole - Solder, Economy Power

1-1744037-2

Active

PCB Mount Header, Vertical, Wire-to-Board, 12 Position, 5.08 mm [.2 in] Centerline, Partially Shrouded, Tin (Sn), Through Hole - Solder, Economy Power

- Economy Power

TE Internal #: 1-1744037-2
TE Internal Description: 12P EC PWR.200 CL HDR ASSY VRT

PCB Connector Type : PCB Mount Header
PCB Mount Orientation : Vertical
Connector System : Wire-to-Board
Number of Positions : 12
Number of Rows : 1

See All Features

More Less

Get Free Samples
Compatible Parts & Tooling

Documents

Product Drawings

HEADER ASSEMBLY-ECONOMY POWER VERTICAL, .200 CENTERLINE ENG_CD_1744037_B2.pdf English

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_1-1744037-2_O.pdf 3D
PCB Design Download symbol & footprint (SnapEDA)
Customer View Model ENG_CVM_CVM_1-1744037-2_O.2d_dxf.zip English
ENG_CVM_CVM_1-1744037-2_O.3d_igs.zip English
ENG_CVM_CVM_1-1744037-2_O.3d_stp.zip English

Datasheets & Catalog Pages

1-1773885-9 Economy Power Connectors ENG_DS_1-1773885-9_ECONOMY_POWER_CONNECTORS_1117.pdf English

Product Specifications

Application Specification JPN_SS_114-5253_G.pdf Japanese
ENG_SS_114-13265_E.pdf English
Product Specification ENG_SS_108-5609_M.pdf English

Agency Approvals

VDE Certificate ENG_AAD_VDE_CERT_40046032_C1_C.pdf English

UL Report ENG_AAD_UL_CERT_E28476_19990819_C1_10.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Connector Shape : Rectangular
PCB Connector Type : PCB Mount Header
Connector System : Wire-to-Board
Header Type : Partially Shrouded
Sealable : No
Connector & Contact Terminates To : Printed Circuit Board
Connector Product Type : Connector Assembly

Configuration Features

Number of Power Positions : 12
Number of Loaded Positions : 12
PCB Mount Orientation : Vertical
Number of Positions : 12
Number of Rows : 1

Electrical Characteristics

Operating Voltage (VDC): 250
Operating Voltage (VAC): 250

Body Features

Primary Product Color : Natural

Contact Features

PCB Contact Termination Area Plating Material : Tin
Contact Base Material : Copper Alloy
Contact Mating Area Length : 7.7 mm [ .303 in ]
Contact Layout : Inline
Contact Shape & Form : Square
PCB Contact Termination Area Plating Material Thickness : 3 µm [ 118.11 µin ]
Contact Mating Area Plating Material Thickness : 3 µm [ 118.11 µin ]
Contact Underplating Material Thickness : 1 µm [ 39.37 µin ]
Contact Underplating Material : Nickel
Contact Mating Area Plating Material : Tin (Sn)
Contact Type : Tab
Contact Current Rating (Max) (A): 8

Termination Features

Termination Post & Tail Length : 3.7 mm [ .146 in ]
Termination Method to PCB : Through Hole - Solder

Mechanical Attachment

Mating Retention : With
Mating Retention Type : Locking Tab
Panel Mount Feature : Without
PCB Mount Retention : Without
PCB Mount Alignment : Without
Connector Mounting Type : Board Mount
Mating Alignment : Without

Housing Features

Housing Material : Nylon 66
Centerline (Pitch) : 5.08 mm [ .2 in ]

Dimensions

Connector Length : 59.84 mm [ 2.35 in ]
Connector Height : 9.4 mm [ .37 in ]
PCB Thickness (Recommended) : 1.6 mm [ .063 in ]
Connector Width : 8.52 mm [ .335 in ]

Usage Conditions

Operating Temperature (Max) : 105 °C [ 221 °F ]
Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

Operation/Application

Circuit Application : Power

Industry Standards

Glow Wire Rating : Standard Part - Not Glow Wire
UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Quantity : 500
Packaging Method : Bag
