Application

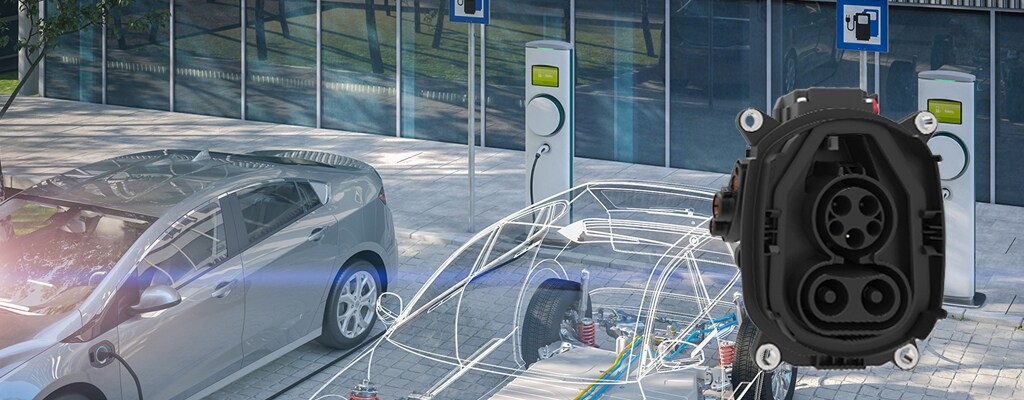

Charging Inlets
TE Connectivity next generation AMP+ charging inlets include AC, DC and CCS (Combined Charging System) inlets for the European, North American & Japanese as well as Chinese markets. AMP+ charging inlets enable smarter, faster and safe charging.
Charging inlets are needed that can handle 10-20 times the power of the current generation of electric cars. Trying to push up to 500 kilowatts of power through an inlet sized to handle 50 kilowatts is likened to a person drinking from a firehose.
AMP+ inlets are designed for these new demands and are scalable to fit all electrical/electronic architectures inside the vehicle, from discrete point-to-point operation, or via distributed intelligent control.
AMP+ Charging Inlet Type 2 (Europe)
Specifically designed for the European market TE Connectivity's type 2 charging inlets are available as AC and CCS (Combined Charging System) versions with multiple options.
AMP+ Charging Inlets, Type GB, AC & DC
Specifically designed for the Chinese market TE Connectivity's type GB charging inlets are available as AC and DC versions.
AMP+ HVA 630 HV Interconnection System
The touch-safe AMP+ HVA 630 high voltage connector system provides 2- and 5-position for high voltage onboard charging applications.
AMP+ HVP 800 HV Interconnection System
AMP+ HVP 800 high voltage connector system safely transports high currents and voltages through hybrid and electric vehicles.
Chassis Mount Resistors
A chassis mount resistor is designed to promote heat loss and cooling. This resistor is manufactured using wirewound resistor technology and features a ceramic core that is molded into an extruded aluminum chassis mount housing.
Through-Hole Resistors
A through-hole resistor is a fixed resistor that has long, pliable leads that can be stuck into a breadboard or hand- or wave-soldered into a printed circuit board. A through-hole resistor is used to reduce the flow of electrical current within a circuit. It’s commonly composed of carbon film, metal film, metal oxide film, thick film, or wirewound.
Snap Action Switches
A snap action switch is a mechanical switch that sends a rapid transfer of contacts from one position to another. Also known as micro switches, snap action switches can be momentary or maintained contact and come in subminiature, miniature, and standard styles.
Push Button (Anti Vandal)
Anti-vandal switches are used in applications found everywhere in the public realm, often away from supervision or surveillance.
From the charging point, to the battery, to the e-motor, TE Connectivity offers end-to-end high-voltage connectivity solutions for next generation, sustainable mobility.
