TAD1483A201-020

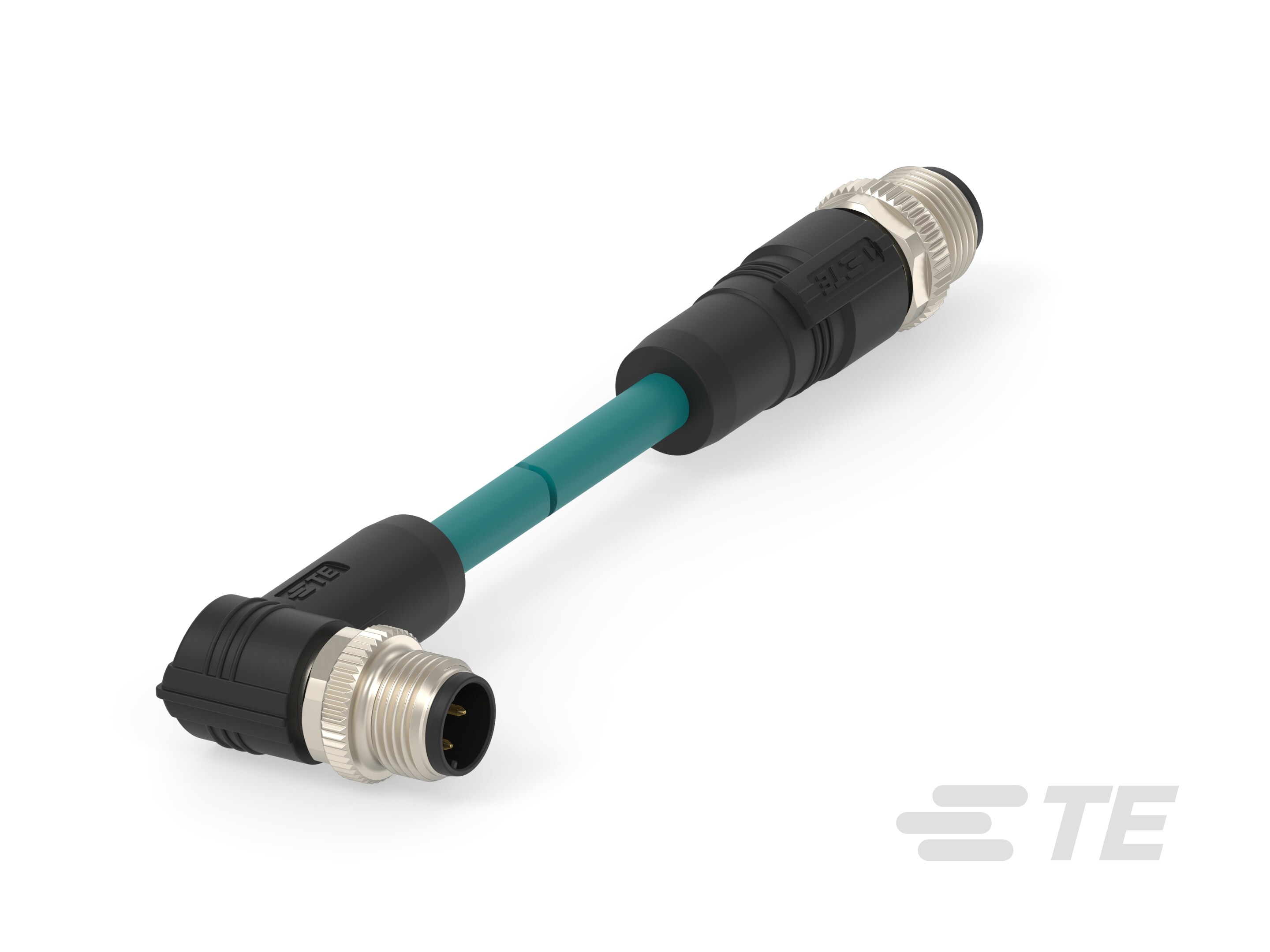

M12 Cable Assembly, 4 Position, 2 m, Industrial Ethernet, Ethernet/IP, D Code, M12 Plug End A, M12 Plug End B, Shielded, Double Ended, PA66+25GF
TAD1483A201-020
M12 Cable Assembly, 4 Position, 2 m, Industrial Ethernet, Ethernet/IP, D Code, M12 Plug End A, M12 Plug End B, Shielded, Double Ended, PA66+25GF
- TE Internal #: TAD1483A201-020
- TE Internal Description: M12D4-MS-MR-TPE SH-2.0M
-
Cable Assembly Type : M12
-
Number of Positions : 4
-
Cable Assembly Length (m): 2
-
M8/M12 Application Type : Industrial Ethernet
-
Industrial Protocols : Ethernet/IP
Documents
Product Drawings
- M12 D CODE CABLE ASSY,SHIELDED 4P,MS TO MR ENG_CD_TAD1483A201XXX_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_TAD1483A201-020_A.pdf 3D
- Customer View Model ENG_CVM_CVM_TAD1483A201-020_A.2d_dxf.zip English
- ENG_CVM_CVM_TAD1483A201-020_A.3d_igs.zip English
- ENG_CVM_CVM_TAD1483A201-020_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-137144_A11.pdf English
- Product Specification ENG_SS_108-106140_A8.pdf English
- Qualification Test Report ENG_SS_501-106140-11_A.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERT_E507163_20200512_C1_1.pdf English
