HDSCS MateNet Housings

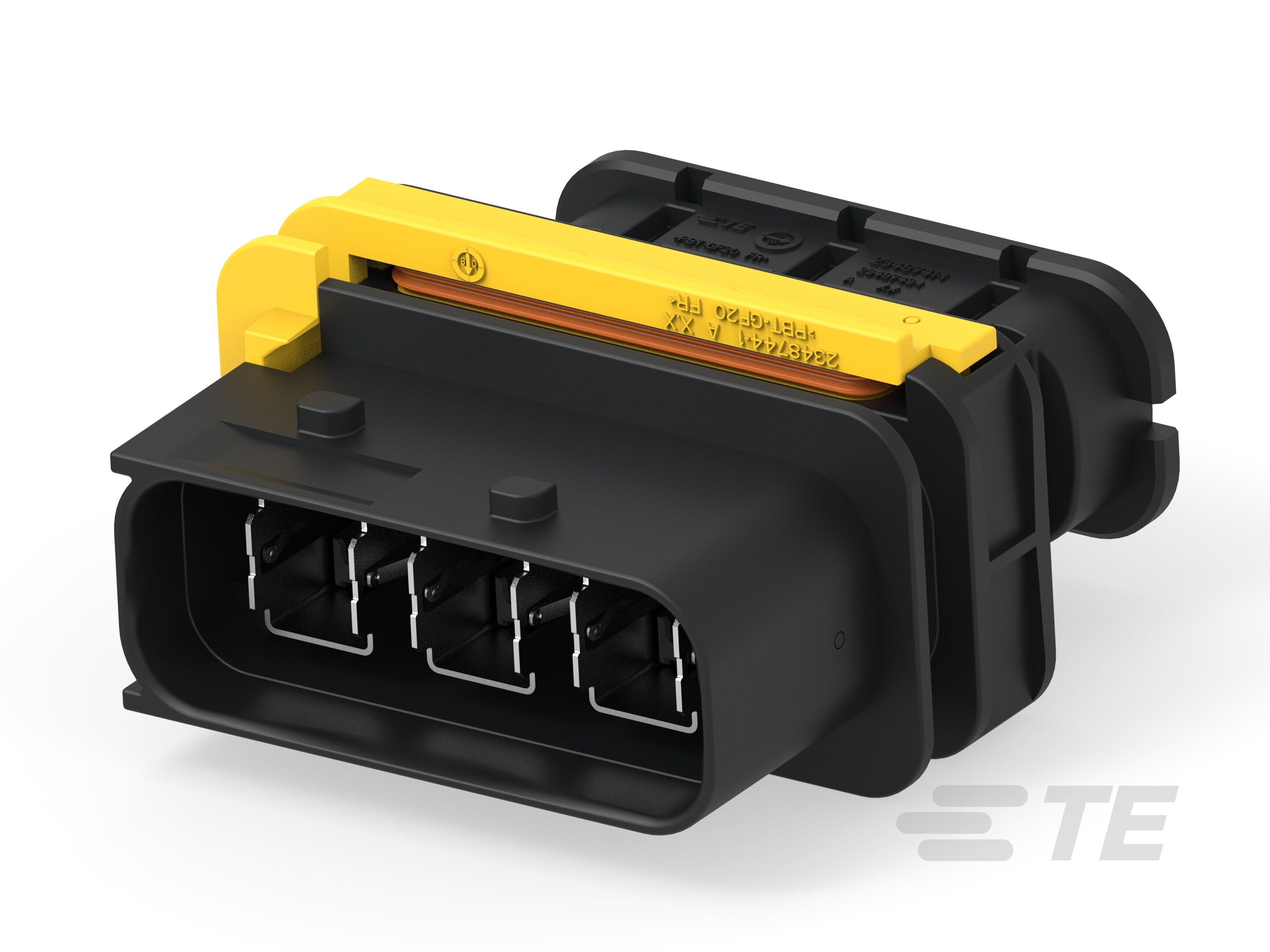

HDSCS MateNet Housings-CAT-AQ1-HMH

Image Gallery |

Connect with Us

Product Features

Connector System : Wire-to-Board | Wire-to-Wire
Sealable : Yes
Cable Exit Angle (°): 180
Number of Positions : 6 | 10 | 14
Connector & Keying Code : A | B

Available from

Product	TE Part #	Documents	Connector System	Number of Positions	Connector & Keying Code	Connector & Housing Type	Mating Tab Width	Mating Tab Thickness	Centerline (Pitch)	Cable Type	Contact Current Rating (Max)	Circuit Application	Connector Mounting Type
HD MATEnet 3+0 TAB HSG ASSY, GRP E	2348741-1	3D PDF	Wire-to-Wire	6	A	Housing for Male Terminals	.5 mm	.4 mm	12.3 mm	STP, UTP	3 A	Signal	Free-Hanging (In-Line)
HD MATEnet 3+0 TAB HSG ASSY, GRP E	2348741-2	3D PDF	Wire-to-Wire	6	B	Housing for Male Terminals	.5 mm	.4 mm	12.3 mm	STP, UTP	3 A	Signal	Free-Hanging (In-Line)
HD MATEnet 3+0 REC HSG ASSY, GRP E	2348746-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	6	A	Housing for Female Terminals	.5 mm	.4 mm	12.3 mm	STP, UTP	3 A	Signal	Free-Hanging (In-Line)
HD MATEnet 3+0 REC HSG ASSY, GRP E	2348746-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	6	B	Housing for Female Terminals	.5 mm	.4 mm	12.3 mm	STP, UTP	3 A	Signal	Free-Hanging (In-Line)
HD MATEnet 3+0 TAB ASSY, GRP E, FLANGED	2348749-1	Product Drawing 3D PDF	Wire-to-Wire	6	A	Housing for Male Terminals	.5 mm	.4 mm	12.3 mm	STP, UTP	3 A	Signal	Panel Mount
HD MATEnet 3+0 TAB ASSY, GRP E, FLANGED	2348749-2	Product Drawing 3D PDF	Wire-to-Wire	6	B	Housing for Male Terminals	.5 mm	.4 mm	12.3 mm	STP, UTP	3 A	Signal	Panel Mount
HD MATEnet 2+6 TAB HSG ASSY, GRP E	2348752-1	3D PDF	Wire-to-Wire	10	A	Housing for Male Terminals	.5 mm, 1.6 mm	.4 mm, .6 mm	4 mm, 12.3 mm	STP, UTP	3 A, 20 A	Power & Signal	Free-Hanging (In-Line)
HD MATEnet 2+6 TAB HSG ASSY, GRP E	2348752-2	3D PDF	Wire-to-Wire	10	B	Housing for Male Terminals	.5 mm, 1.6 mm	.4 mm, .6 mm	4 mm, 12.3 mm	UTP	3 A, 20 A	Power & Signal	Free-Hanging (In-Line)
HD MATEnet 2+6 REC HSG ASSY, GRP E	2348755-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	10	A	Housing for Female Terminals	.5 mm, 1.6 mm	.4 mm, .6 mm	4 mm, 12.3 mm	STP, UTP	3 A, 20 A	Power & Signal	Free-Hanging (In-Line)
HD MATEnet 2+6 REC HSG ASSY, GRP E	2348755-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	10	B	Housing for Female Terminals	.5 mm, 1.6 mm	.4 mm, .6 mm	4 mm, 12.3 mm	UTP	3 A, 20 A	Power & Signal	Free-Hanging (In-Line)
HD MATEnet 2+6 TAB ASSY, GRP E, FLANGED	2348758-1	Product Drawing 3D PDF	Wire-to-Wire	10	A	Housing for Male Terminals	.5 mm, 1.6 mm	.4 mm, .6 mm	4 mm, 12.3 mm	STP, UTP	3 A, 20 A	Power & Signal	Panel Mount
HD MATEnet 2+6 TAB ASSY, GRP E, FLANGED	2348758-2	Product Drawing 3D PDF	Wire-to-Wire	10	B	Housing for Male Terminals	.5 mm, 1.6 mm	.4 mm, .6 mm	4 mm, 12.3 mm	UTP	3 A, 20 A	Power & Signal	Panel Mount
HD MATEnet 1+12 TAB HSG ASSY, GRP E	2348761-1	3D PDF	Wire-to-Wire	14	A	Housing for Male Terminals	.5 mm, 1.6 mm	.4 mm, .6 mm	4 mm	STP, UTP	3 A, 20 A	Power & Signal	Free-Hanging (In-Line)
HD MATEnet 1+12 TAB HSG ASSY, GRP E	2348761-2	3D PDF	Wire-to-Wire	14	B	Housing for Male Terminals	.5 mm, 1.6 mm	.4 mm, .6 mm	4 mm	STP, UTP	3 A, 20 A	Power & Signal	Free-Hanging (In-Line)
HD MATEnet 1+12 REC HSG ASSY, GRP E	2348764-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	14	A	Housing for Female Terminals	.5 mm, 1.6 mm	.4 mm, .6 mm	4 mm	STP, UTP	3 A, 20 A	Power & Signal	Free-Hanging (In-Line)
HD MATEnet 1+12 REC HSG ASSY, GRP E	2348764-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	14	B	Housing for Female Terminals	.5 mm, 1.6 mm	.4 mm, .6 mm	4 mm	STP, UTP	3 A, 20 A	Power & Signal	Free-Hanging (In-Line)
HD MATEnet 1+12 TAB ASSY, GRP E, FLANGED	2348767-1	Product Drawing 3D PDF	Wire-to-Wire	14	A	Housing for Male Terminals	.05 mm, 1.6 mm	.4 mm, .6 mm	4 mm	UTP	3 A, 20 A	Power & Signal	Panel Mount
HD MATEnet 1+12 TAB ASSY, GRP E, FLANGED	2348767-2	Product Drawing 3D PDF	Wire-to-Wire	14	B	Housing for Male Terminals	.5 mm, 1.6 mm	.4 mm, .6 mm	4 mm	UTP	3 A, 20 A	Power & Signal	Panel Mount

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector & Contact Terminates To Wire & Cable
Mixed & Hybrid Connector No | Yes
Connector System Wire-to-Board | Wire-to-Wire
Sealable Yes
Connector & Housing Type Housing for Female Terminals | Housing for Male Terminals

Configuration Features

Number of Positions 6 | 10 | 14

Electrical Characteristics

Operating Voltage (VDC) 60

Body Features

Cable Exit Type Straight to Angled | Straight to Straight
Ferrule With
Body Material PBT GF
Cable Exit Angle (°) 180
Connector & Keying Code A | B

Contact Features

Contact Mating Area Plating Material Silver (Ag)
Contact Type Receptacle | Tab
Outer Contact Plating Material Tin (Sn)
Center Contact With
RF Connector Center Contact Plating Material Silver (Ag)
Mating Tab Width (mm) .05 | .5 | 1.6
Mating Tab Width (in) .019 | .062
Mating Tab Thickness (mm) .4 | .6
Mating Tab Thickness (in) .015 | .023
Contact Current Rating (Max) (A) 3 | 20

Termination Features

Termination Method to Wire & Cable Crimp

Mechanical Attachment

Mating Retention With
Panel Attachment Style Rear Mount
Connector Mounting Type Free-Hanging (In-Line) | Panel Mount

Housing Features

Housing Color Black | Gray
Centerline (Pitch) (mm) 4 | 12.3
Centerline (Pitch) (in) .157 | .484

Dimensions

Product Width (mm) 31.25 | 52.6 | 52.8
Product Width (in) 1.23 | 2.07
Connector Height (mm) 25.7 | 27 | 29.2 | 39.8
Connector Height (in) 1.01 | 1.06 | 1.14 | 1.56
Product Length (mm) 52.8 | 62.5 | 67.2
Product Length (in) 2.07 | 2.46 | 2.64

Usage Conditions

Operating Temperature (Max) 125 °C [ 257 °F ]
Cable Type STP | UTP
Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

Operating Frequency Range (GHz) 0 – 1 | 0 – .1
Shielded Yes
Circuit Application Power & Signal | Signal

Industry Standards

IP Rating IP66 | IP67 | IP6K9K
Compatible With Agency/Standards Products ISO 8092

Packaging Features

Packaging Method Box

Other

Dielectric Material PA | PA GF
