BSTA078NN00480235000

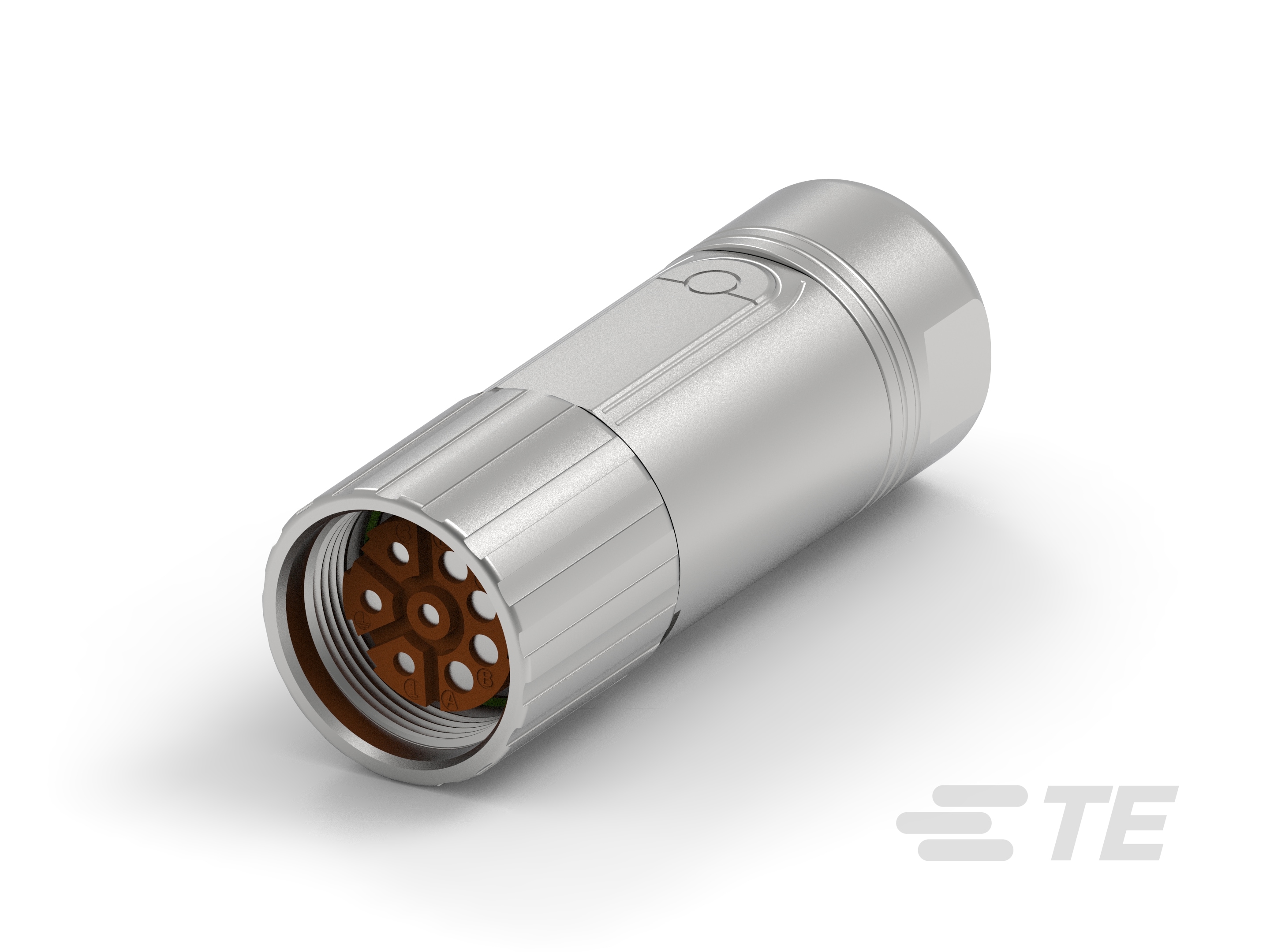

8 Position Circular Connector, Cable-to-Cable, Power & Signal, Cable Mount (Free-Hanging), Electrodeposited Nickel, Zinc Alloy, PBT GF
BSTA078NN00480235000
8 Position Circular Connector, Cable-to-Cable, Power & Signal, Cable Mount (Free-Hanging), Electrodeposited Nickel, Zinc Alloy, PBT GF
- TE Internal #: BSA078N00480235000
- TE Internal Description: 923 PLUG
-
Number of Positions : 8
-
Connector System : Cable-to-Cable
-
Sealable : No
-
Circuit Application : Power & Signal
-
Connector Mounting Type : Cable Mount (Free-Hanging)
