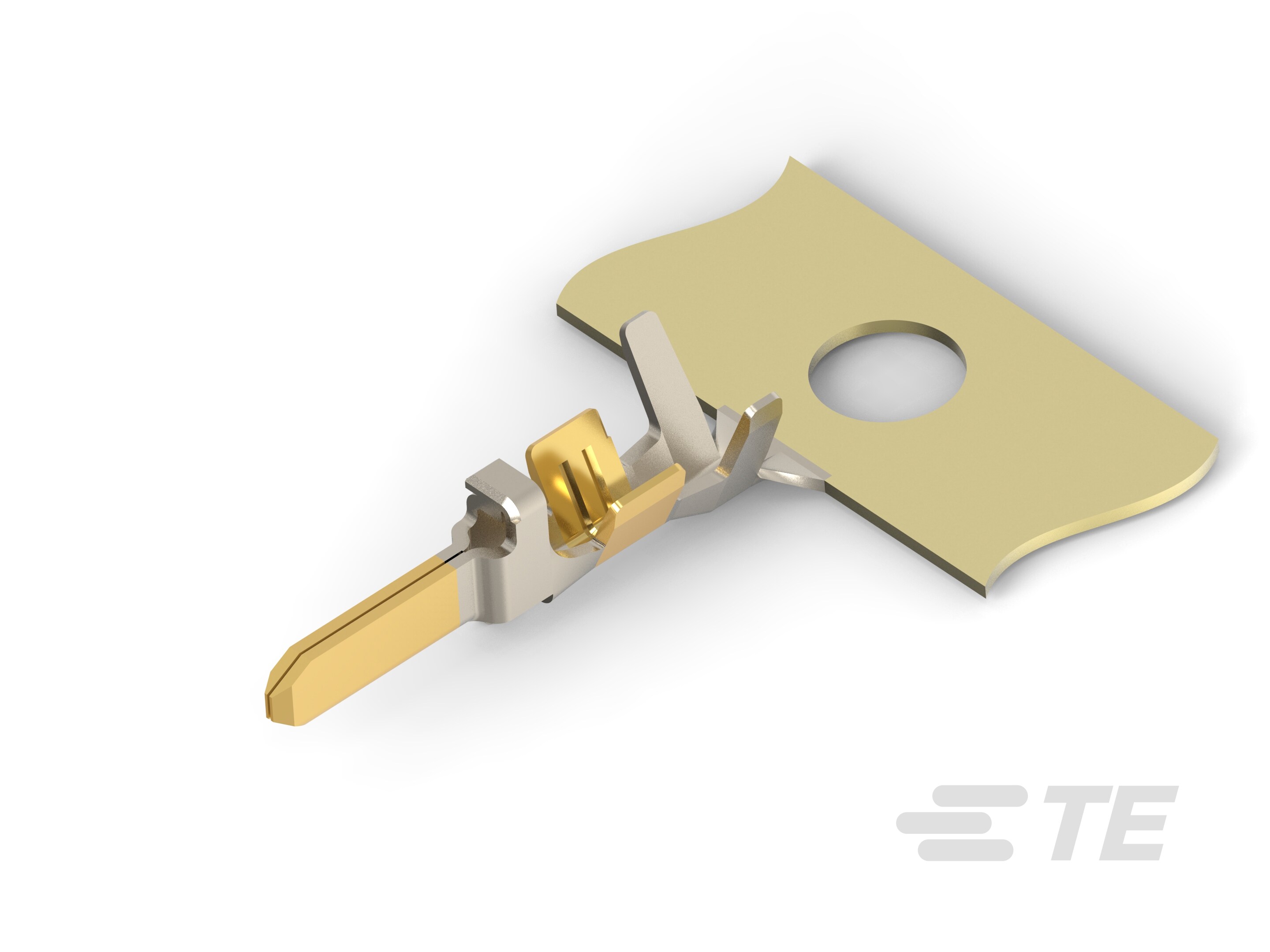

2040973-2
Pin Contact, Gold (Au), 10 VAC, Discrete Wire, 28 – 26 AWG, .08 – .15 mm² Wire, Crimp, Brass, Power & Signal, -40 – 105 °C [-40 – 221 °F]
2040973-2
Pin Contact, Gold (Au), 10 VAC, Discrete Wire, 28 – 26 AWG, .08 – .15 mm² Wire, Crimp, Brass, Power & Signal, -40 – 105 °C [-40 – 221 °F]
-
- AMPMODU
- TE Internal #: 2040973-2
- TE Internal Description: 1.0VP REMODEL POST CONTACT
-
Contact Type : Pin
-
Contact Mating Area Plating Material : Gold (Au)
-
Wire Contact Termination Area Plating Material : Gold
-
Operating Voltage (VAC): 10
-
Compatible With Wire & Cable Type : Discrete Wire
Documents
Product Drawings
- POST CONTACT 1.0VP REMODEL Japanese
- POST CONTACT 1.0VP REMODEL JPN_CD_2040973_C.pdf Japanese
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2040973-2_B.pdf 3D
- Customer View Model ENG_CVM_CVM_2040973-2_B.2d_dxf.zip English
- ENG_CVM_CVM_2040973-2_B.3d_igs.zip English
- ENG_CVM_CVM_2040973-2_B.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-5441_C.pdf English
- Product Specification ENG_SS_108-78573_H.pdf English
- Qualification Test Report ENG_SS_501-78194_C.pdf English
