1SNL325060R0000

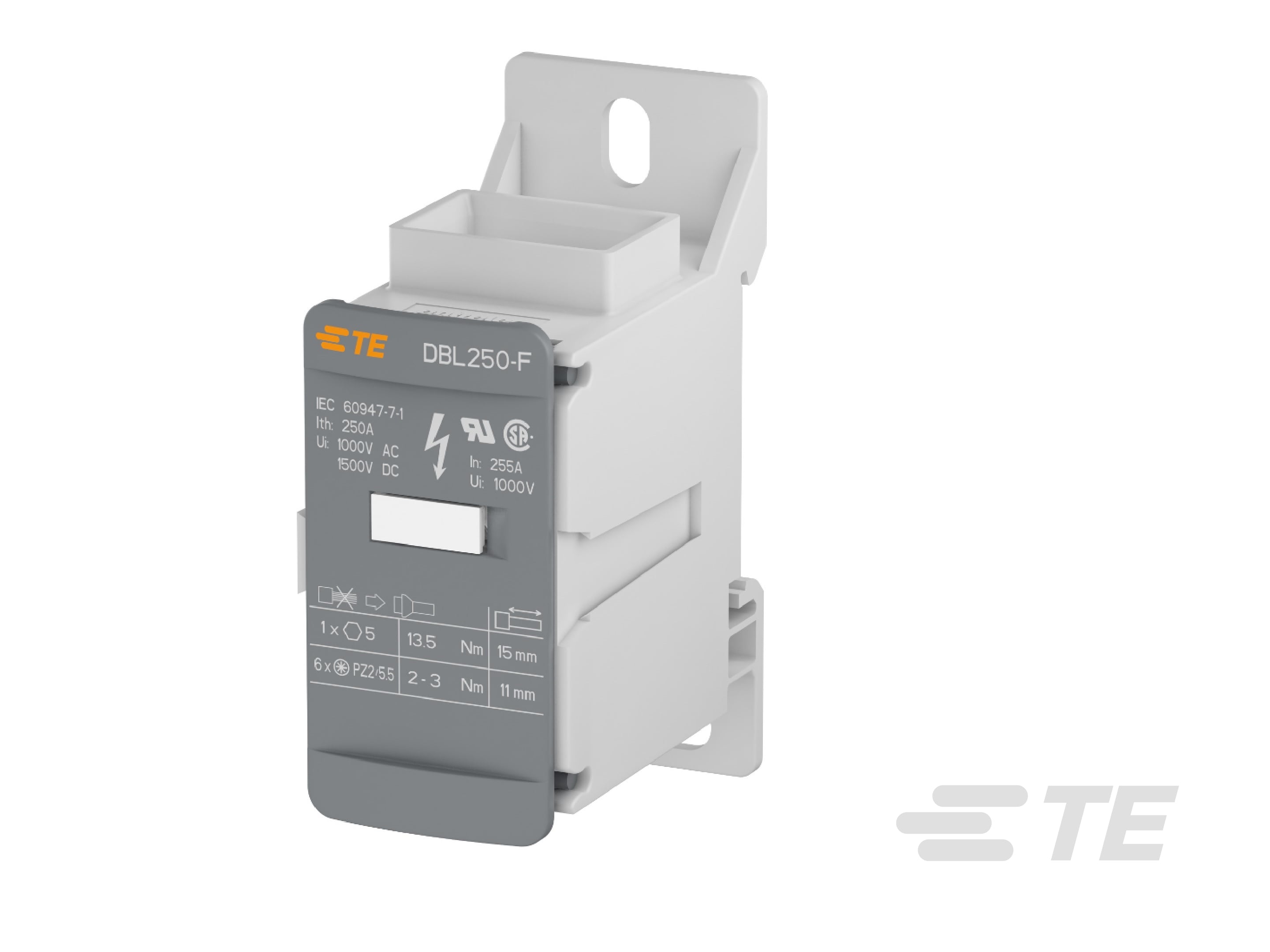

1 Pole, 250 A Current Rating (UL), 7 Position, DIN Rail / Panel Mount, -55 – 110 °C [-67 – 230 °F], Power Distribution Blocks

1SNL325060R0000

1 Pole, 250 A Current Rating (UL), 7 Position, DIN Rail / Panel Mount, -55 – 110 °C [-67 – 230 °F], Power Distribution Blocks

Number of Poles : 1

Current Rating (IEC) (A): 250

Current Rating (UL) (A): 250

Number of Positions : 7

Contact Current Rating (Max) (A): 250

Documents

CAD Files

Datasheets & Catalog Pages

Agency Approvals

Product Change Notification

Features

Configuration Features

Number of Poles - Main Circuit : 1

Number of Poles - Output 1 : 6

Block Function : Feed-Through

Number of Circuits : 1

Number of Levels : 1

Number of Poles : 1

Number of Positions : 7

Electrical Characteristics

Short-Time Withstanding Current Rating @ 1s (A): 11400

Voltage Rating (IEC) (VAC): 1000

Voltage Rating (IEC) (VDC): 1500

Voltage Rating (CSA) (V): 1000

Dielectric Withstanding Voltage (Max) (V): 2200

Power Loss (W): 8

Input Current (Max) (A): 250

Impulse Withstanding Voltage Rating (IEC) (V): 8000

Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V): 1000

Peak Withstanding Current Rating (kA): 23

Current Rating (IEC) (A): 250

Current Rating (UL) (A): 250

Body Features

Primary Product Color : Gray

Product Weight (g): 224

Contact Features

Contact Current Rating (Max) (A): 250

Termination Features

Termination Method to Wire & Cable : Screw

Mechanical Attachment

Tightening Torque - Output 1 (in-lbs): 18 – 26.5

Tightening Torque - Output 1 (Nm): 2 – 3

Tightening Torque - Main Circuit (in-lbs): 120

Tightening Torque - Main Circuit (Nm): 13.5

Connector Mounting Type : DIN Rail | Panel Mount

Housing Features

Housing Material : Polyamide

Dimensions

Wire Size (mm²): 6

Tool Size - Main Circuit : 5 mm [ .2 in ]

Main Circuit Capacity - Flexible Bar (mm): 3 x 9 x 0.8 | 6 x 15.5 x 0.8

Product Height : 75 mm [ 2.95 in ]

Product Width : 29 mm [ 1.14 in ]

Hole Diameter - Output 1 : 6.7 mm [ .26 in ]

Tool Size - Output 1 : 5.5 mm [ .22 in ]

Input Dimensions - Main Circuit : 15.5 x 7.2 mm [ 0.59 x 0.28 in ]

Wire Stripping Length - Output 1 : 11 mm [ .43 in ]

Main Circuit Capacity - Solid Bar (mm): 12 x 4

Product Spacing : 29 mm [ 1.14 in ]

Product Depth : 50.7 mm [ 2 in ]

Output 1 Capacity - 1 Insulated Ferrule (AWG): 14 – 6

Output 1 Capacity - 1 Insulated Ferrule (mm²): 2.5 – 16

Wire Stripping Length - Main Circuit : 15 mm [ .59 in ]

Output 1 Capacity - 1 Rigid Stranded Conductor (AWG): 14 – 6

Output 1 Capacity - 1 Rigid Stranded Conductor (mm²): 2.5 – 16

Usage Conditions

Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]

Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]

Industry Standards

Tool - Output 1 : Flat Screwdriver

Tool - Main Circuit : Allen Key

UL Flammability Rating : UL 94V-0

IP Rating : IP20
