Secure RAST 5 Receptacle Housings

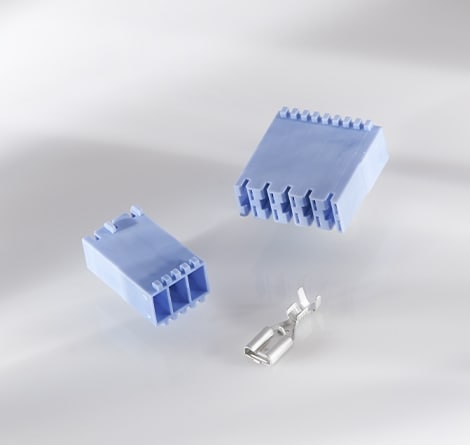

The RAST 5 standard defines a connector with 5mm pitch and standard keying, polarization, and locking features. The Positive Lock RAST 5 connector system features receptacle housings meeting the RAST 5 standard and accepting the popular Positive Lock Mark III receptacles. These receptacles offer ergonomic assembly and secure connections due to a positive locking feature that allows for both low insertion force (LIF) and high retention force. The system mates with 6.35 x 0.81 mm tabs containing detent holes that engage the positive locking mechanism. The housings have built in keying and polarization features that are compatible with many components built on the RAST 5 standard, including TE's RAST 5 printed circuit board (PCB) tab headers.

Product Features

Centerline (mm) 5 Operating Temperature (°C) -40 to +105
Maximum Current Rating (A) 16 Wire Size (AWG) 22-14
Voltage Rating (V) 500 Positions Available 2-11
IEC 60335-1 Glow-Wire Available No Sealed Version Available No
UL94 Rating Available V-0 Color/Keying Available Yes
Agency Approvals UL, CSA Available Configurations Wire-to-Board, Wire-to-Wire
