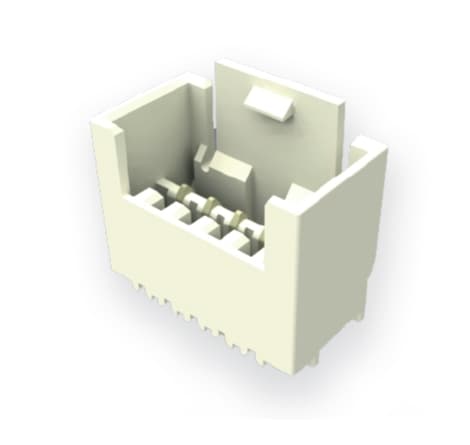

Versatile 2.5mm PCB Connectors for Wire-to-Board Applications
TE Connectivity's PCB connectors, designed to meet the RAST 2.5 standard, feature vertical through-hole technology and offer versatile solutions for wire-to-board connections. Available with options for tin or silver plating, these connectors support both external and internal locking mechanisms, providing flexibility for a variety of applications. Ideal for industrial and appliance use, they ensure compliance with safety standards and are well-suited for control units and other devices. With a 2.5 mm pitch and a range of 3 to 15 positions, these connectors can be customized with different plating, colors, and keying designs to optimize performance and reduce costs.
Product Features
| Centerline (mm) | 2.5 | Positions | 3-17 |
| Current Rating (A) | 2A/6A | Operating Temperature (°C) | -40 to +120 |
| Voltage Rating (VAC) | 50, 250 | Contact | Copper Alloy, Tin or Silver plating over Nickel |
| IEC 60335-1 Glow-Wire | Yes | Sealed Version | No |
| UL94 Rating | V-0 | Color/ Keying Option | Yes |
| Agency Approvals | UL, VDE | Configurations | Wire-To-Board |
