PCB Connectors for Advanced In-Line Mating

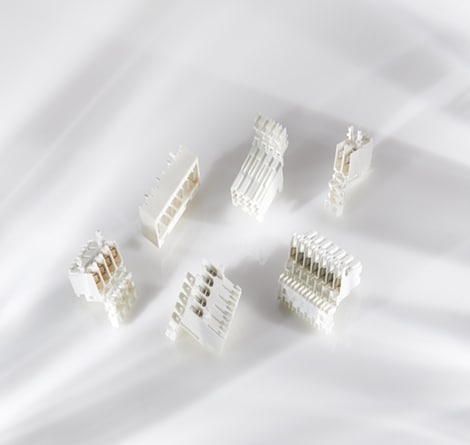

The AMP Multifitting Mark II wire-to-board connector system from TE Connectivity is designed in accordance with the latest RAST 5 standards, offering reliable solutions for advanced in-line mating and PCB applications. Available in both direct (2–8 positions, up to 6A) and indirect (1–9 positions, up to 10–16A) configurations, these connectors support a wide wire size range and feature a standard exterior locking mechanism, with optional interior locking for added security. Supplied in chain and equipped with RAST keying and polarization ribs, they are optimized for automated tooling and cost-effective, high-efficiency production.
Product Features
| Centerline (mm) | 5 | Operating Temperature ( °C) | -40 to +130 |
| Maximum Current Rating (A) | 16 | Wire Size (AWG) | 22-17 |
| Voltage Rating (V) | 250 | Positions Available | 1-9 |
| IEC 60695-2-11 Glow-Wire Available | Yes | Sealed Version Available | No |
| UL94 Rating Available | V-2 | Color/Keying Available | Yes |
| Agency Approvals | UL, VDE | Available Configurations | Wire-to-Board |
