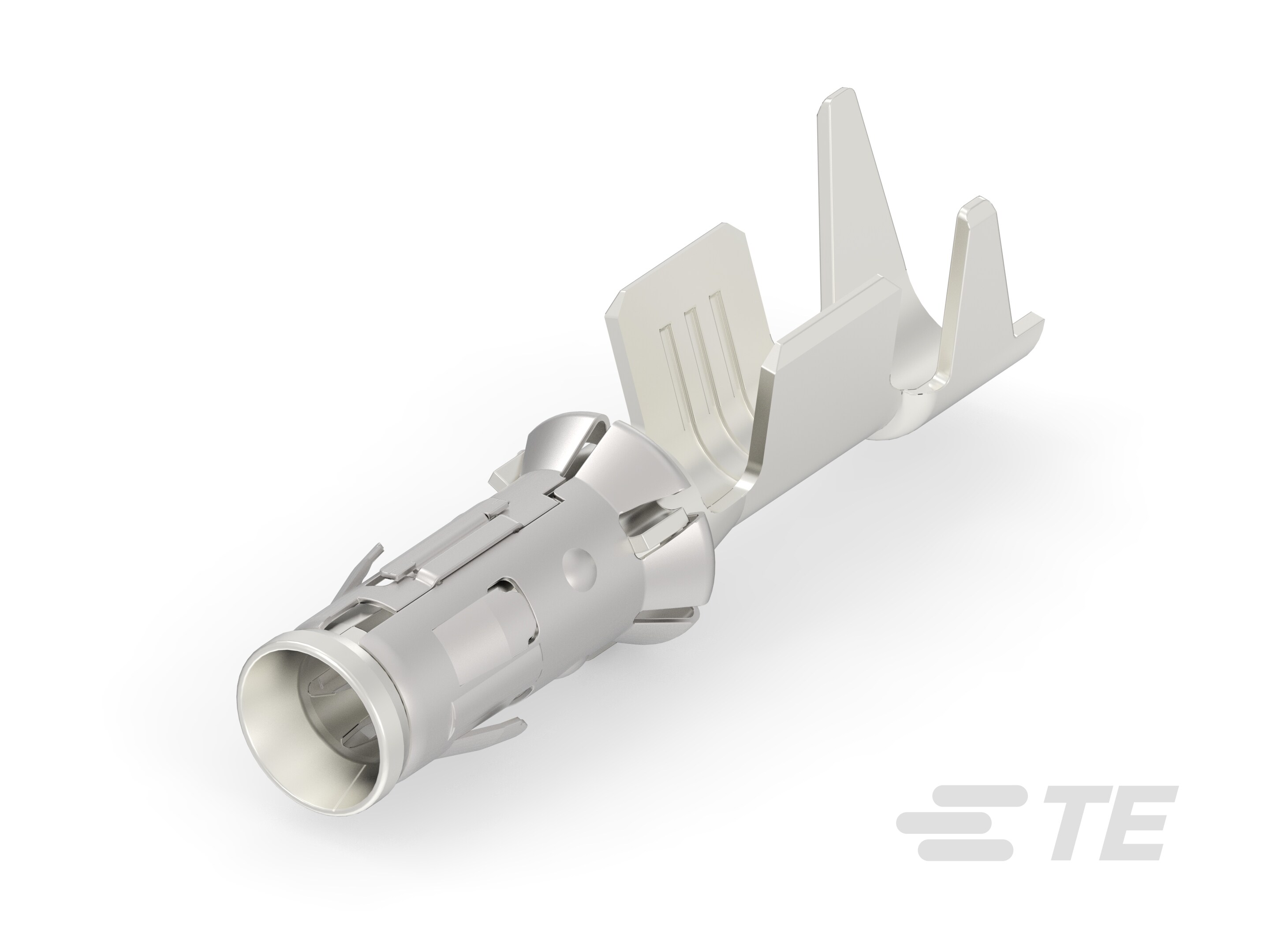

Socket Contact, Silver (Ag), Locking Spring Contact Retention, Crimp, Copper Alloy, Power & Signal, -40 – 125 °C [-40 – 257 °F]
T2220002040-001
Socket Contact, Silver (Ag), Locking Spring Contact Retention, Crimp, Copper Alloy, Power & Signal, -40 – 125 °C [-40 – 257 °F]
- TE Internal #: T2220002040-001
- TE Internal Description: SCEF2.5-4.0
- All BPSC Stacked Hybrid Connector: Male Female Contact, 7-12 AWG (6)
-
Contact Type : Socket
-
Contact Mating Area Plating Material : Silver (Ag)
-
Wire Contact Termination Area Plating Material : Tin over Nickel
-
Contact Retention Within Housing : With
-
Contact Retention Type Within Housing : Locking Spring
Documents
Product Drawings
- DIA 2.5MM FEMALE STAMPING CONTACT ENG_CD_T2220002040000_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_T2220002040-001_A.pdf 3D
- Customer View Model ENG_CVM_CVM_T2220002040-001_A.3d_igs.zip English
- ENG_CVM_CVM_T2220002040-001_A.3d_stp.zip English
- ENG_CVM_CVM_T2220002040-001_A.2d_dxf.zip English
Datasheets & Catalog Pages
- Bess Stacked Hybrid Connector CHI_DS_bess-stacked-hybrid-connector_2402.pdf
- Bess Stacked Hybrid Connector ENG_DS_bess-stacked-hybrid-connector_2402.pdf English
Product Specifications
- Application Specification ENG_SS_114-137664_A1.pdf English
- Product Specification ENG_SS_108-137664_A.pdf English
