Overview
Works Seamlessly with Kries Voltage and Partial Discharge Detection System

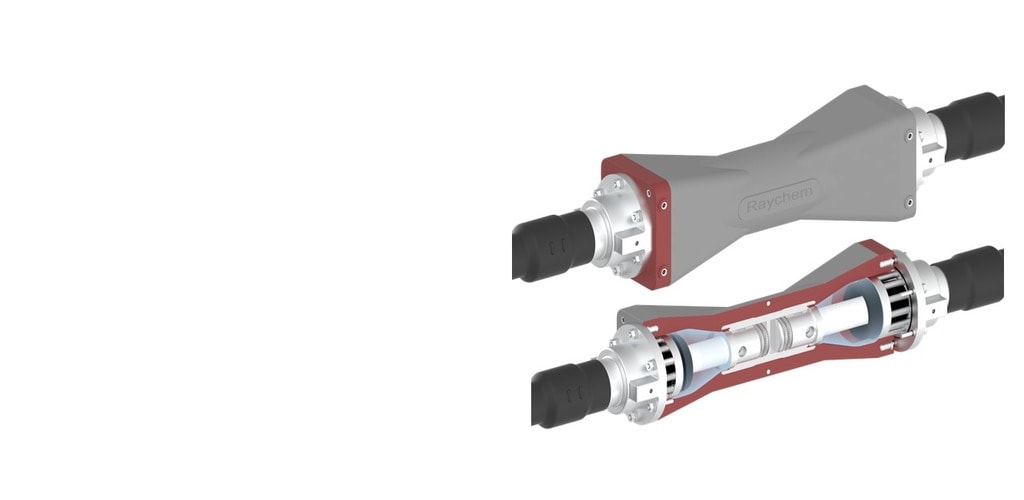

Our Raychem PHVJ joints are compatible with EPR and XLPE cables, independent of the manufacturer, and can be adapted to the grounding required for various cable constructions. The complete system consists of the epoxy insulator part and the plug-in parts.



Our Raychem PHVJ joints can be installed horizontally or vertically and are equipped with fixation points to mount on a rack or wall. The back-to-back design allows different types of cables to connect in a transition joint and can be assembled and disassembled quickly for testing purposes.



The plug-in parts consist of a pre-molded silicone body for stress control and a mechanical cable lug for fast and reliable installation. For testing and maintenance, accessories and add-on kits can be provided. Standard or integrated voltage tap versions are available.




Key Features

  • Corrosion and touch-proof
  • Engineered for 145 kV wind farms
  • Torque-controlled, multi-contact conductor bolt
  • Sectionalization possible
  • Easy installation with no special tools required
  1. TE Raychem PHVJ Installation Video (English)

Our Raychem dry high voltage plug-in inner cone joints PHVJ are designed for up to 145 kV for offshore and onshore applications. These joints can be installed horizontally or vertically. They are equipped with fixation points to mount on a rack or wall. They are easy to install with standard tools. Watch our video to see how to install our Raychem PHVJ Joints up to 145 kV.

FAQ

Frequently Asked Questions

Question: Where can TE Raychem dry high-voltage plug-in joints, PHVJ, be used?​
Answer: Our TE Raychem PHVJ joints are suitable for both offshore and onshore applications.​​



Question: Can TE Raychem PHVJ inner cone joints be used with Kries smart monitoring devices?​
Answer: Yes, they can be directly connected, enabling a reliable, dry connection that integrates a cable monitoring system.​​



Question: What tools are required to install TE Raychem PHVJ joints?​
Answer: Installation can be done without special tools, including the mechanical connector, ideal for wind turbine applications.​​



Question: Is there a size limitation for larger cross-sections?​
Answer: No, the system supports cables up to 2000 mm² (for 72 kV systems) and 1200 mm² (for 145 kV systems).​​



Question: Are TE Raychem PHVJ joints available with a voltage tap?​
Answer: Yes, PHVJ joints are available with or without a voltage tap, allowing for partial discharge monitoring if needed.​​​

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Shelf Life  Unlimited

  • Joints & Splices Connector Type  Mechanical

  • Installation Technology  Resin

  • Joints & Splice Product Type  Plug-in Inner Cone Joint

Electrical Characteristics

  • Voltage Class (kV) ≤ 72 | ≤ 145

Dimensions

  • Cable Connection Type  Mechanical Connector

  • Compatible Conductor Cross-Section Range (mm²) 95 – 2000

Reference Number

  • TE Internal Number CAT-PHVJ
