61499-1

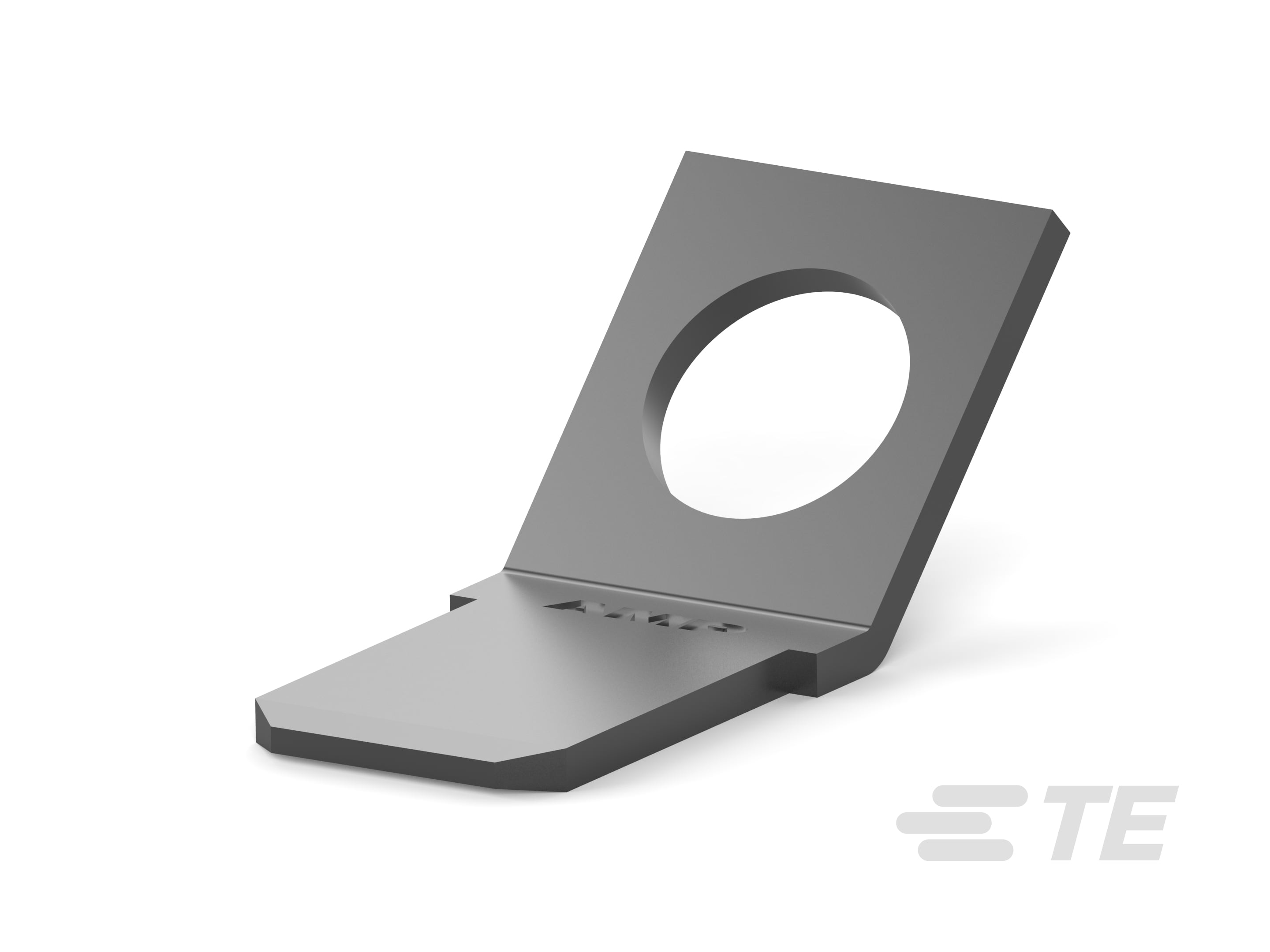

Tab, 6.35 mm [.25 in] Tab Width, 5 mm [.197 in] PCB Hole, Through Hole - Screw, Tin Plating, Bag, FASTON 250, PCB Terminals
61499-1
Tab, 6.35 mm [.25 in] Tab Width, 5 mm [.197 in] PCB Hole, Through Hole - Screw, Tin Plating, Bag, FASTON 250, PCB Terminals
-
- FASTON
- FASTON 250
- TE Internal #: 61499-1
- TE Internal Description: 250 FASTON TAB TPBR
-
PCB Terminal Type : Tab
-
Mating Tab Width : 6.35 mm [ .25 in ]
-
Mating Tab Thickness : .81 mm [ .032 in ]
-
PCB Hole Diameter : 5 mm [ .197 in ]
-
Profile Height from PCB : 7.48 mm [ .295 in ]
