Modular-Hybrid Data Connectors - NET-AX+
TE´s NET-AX+ connector system supports coaxial and differential data connectivity for multigigabit Ethernet, SerDes and other application protocols and can integrate signal and power connections.
40%
Up to 40% PCB space reduction
≤ 56
Up to 56 Gbps speed
80%
Up to 80% fewer mating assemblies

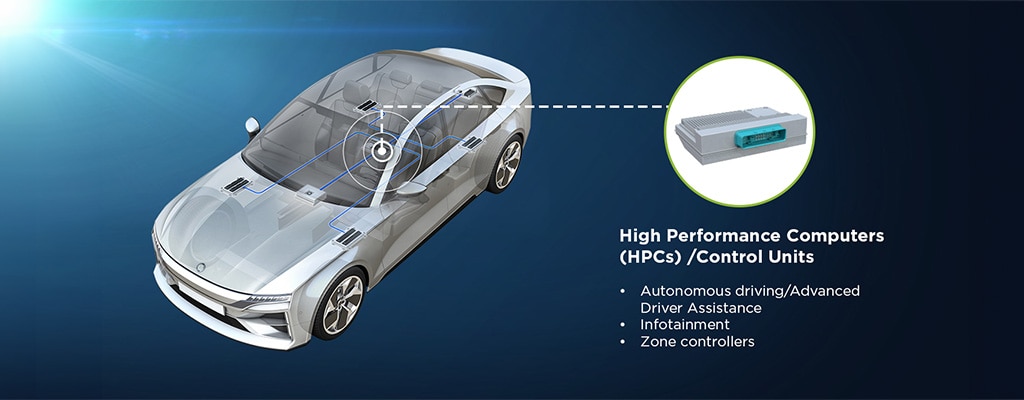

The next generation of automotive zonal and infotainment architectures require an increasing number of high-speed data connections in increasingly smaller PCBs. To meet this challenge, TE`s new NET-AX+ modular hybrid connector system supports high-speed differential and coaxial data transmission as well as signal and power connections within a single connector assembly. Featuring a customizable and modular header design, it offers up to 40% reduced PCB footprint and 80% fewer mating assemblies.
Benefits
- Compact modular design enables up to 40% of PCB space reduction
- Possibility of integrating coaxial and differential data, power and signal contacts in a single connector assembly.
- Customizable and modular header enables up to 80% fewer connector mating assemblies.
- Supports up to 56 Gbps
Applications
- Automotive Ethernet: 100BASE-T1,1000BASE-T1, 2.5/5/10GBASE-T1
- SerDes: GMSL3, APIX3, GVIF3, FPD-Link IV, ASA Motion Link, MiPi A-PHY, HDBase-T
- Others: USB, PCIe (multi-lane)
