Reliability for EV Charging Infrastructure

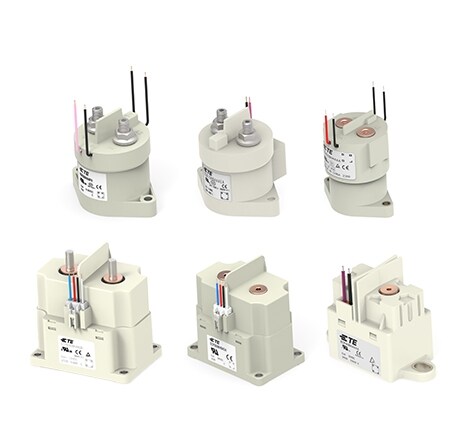

TE’s Industrial DC Contactors are reliable solutions that can be used for carrying high currents over a wide voltage range and can break effectively during an emergency. Consisting of 1000V (ECK Series), 1500V DC (ECP Series) and ECPN/S ranges, these can be used in Electric Vehicle Charging Infrastructure (EVI), Battery Energy Storage Systems (BESS) and e-forklifts.
Product Features
| Product Line | ECK Series | ECP Series | ECPN ECPS Series |
| Voltage Range |
Up to 1000 VDC |
Up to 1500 VDC |
Upto 1500 VDC |
| Carry Current Range |
50 A to 500 A |
40 A to 800 A |
350 A to 800A |
| Mounting |
Chassis / Panel Mounting |
Chassis / Panel Mounting |
Chassis/ Panel mounting |
| Coil Voltage |
12, 24, and 48 VDCOr PWM 9~36VDC |
12 V and 24 VDC |
12 V and 24 VDC |
| Approvals |
UL, CE, and TUV |
UL, CE, and TUV |
UL, TUV, CE, CCC |
| Series |
ECK50B, ECK100B, ECK150B, ECK200B, ECK250B, ECK150, ECK200, and ECK250 |
ECP40B, ECP150B, ECP250BECP350B, and ECP600B |
ECPS350B, ECPN350B, ECPS500B, ECPN500B, ECPS800B, ECPN800B, ECPN650B, ECPS650B |
| Application | Electric Forklifts EV charging DC converter Battery Test Equipment Power Distribution Unit |
Battery energy storage system (BESS) Photovoltaic inverters Super EV charger Magawatt charger |
Battery energy storage system (BESS) Electric Vehicle Super Charger Photovoltaic Inverters Data Center Power Supply |
1000 VDC
1500 VDC
Ceramic Sealing
Long Life
Aux Contact
Inbuilt PWM
ECPN ECPS Series
The ECPN/S series is specifically designed for BESS, high-power vehicle charging,
electric marine vessels, and data centers.
Product Benefits
- High reliability and robust for enhanced safety
- Excellent electrical endurance for long service life and performance
- Ensure safe operation during charging and discharging cycles
- Smart monitoring of the main contact status for improved control and safety
- Global solution adaptable for diverse customer projects
Product Features
- Strong short circuit current endurance up to 20KA
- Hermetically sealed with ceramic technology
- Enhanced breaking capacity up to 1500 VDC at 2000 A
- High carry current, support 350 A, 500 A and 800 A respectively with different series
- Dual coil design with 5W of holding power
- Allows bi-directional load
- Equipped with an auxiliary contact
- Compatibility with DC-1 utilization category in IEC60947-4-1
ECK Series
Product

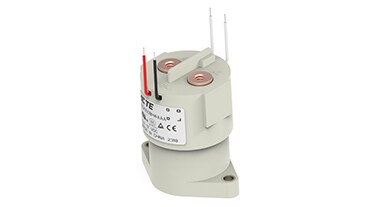

ECK 100B Series
Non-Polarity
Contact Current: 150 A
Switching Voltage (Max): 1000 VDC
Coil Voltage Rating: 12, 24, 48 VDC
Contact Arrangement: 1 Form X SPST-NO-DM
Product

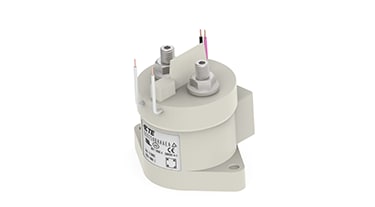

ECK 250B Series
Non-Polarity
Contact Current: 500 A
Switching Voltage (Max): 1000 VDC
Coil Voltage Rating: 9~36 VDC
Contact Arrangement: 1 Form X SPST-NO-DM
Product

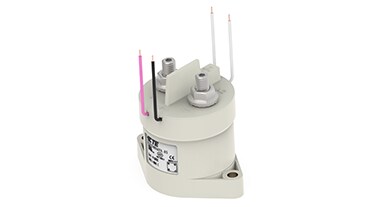

ECK 250 Series
Polarity
Contact Current: 500 A
Switching Voltage (Max): 1000 VDC
Coil Voltage Rating: 9~36 VDC
Contact Arrangement: 1 Form X SPST-NO-DM
ECP Series

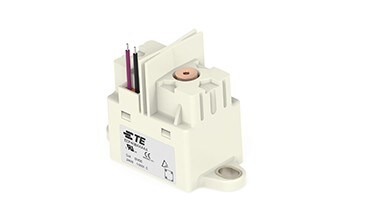

Product
ECP 40B Series
Non-Polarity
Contact Current:40 A
Switching Voltage (Max):1500 VDC
Coil Voltage Rating: 12, 24 VDC
Contact Arrangement: 1 Form X SPST-NO-DM

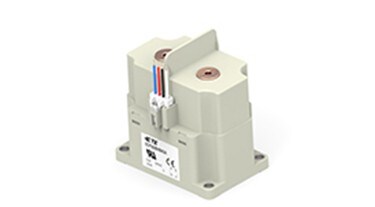

Product
ECP 350B Series
Non-Polarity
Contact Current:500 A
Switching Voltage (Max):1500 VDC
Coil Voltage Rating: 12, 24 VDC
Contact Arrangement: 1 Form X SPST-NO-DM

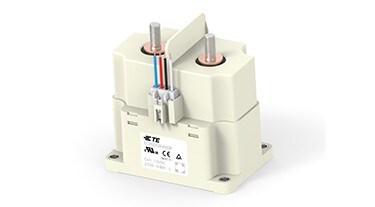

Product
ECP 600B Series
Non-Polarity
Contact Current:800 A
Switching Voltage (Max):1500 VDC
Coil Voltage Rating: 12, 24 VDC
Contact Arrangement: 1 Form X SPST-NO-DM
