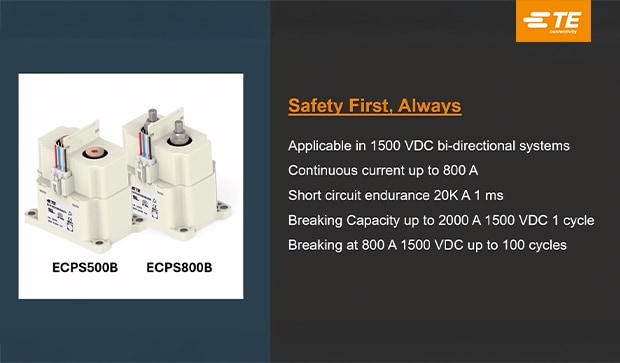

High Voltage Contactors, hermetically sealed, ceramic technology
TE Connectivity’s ECPN, ECPS and ECP series are specifically designed for battery energy storage systems, electric vehicle chargers, electric marine vessels, and data centers, suitable for 1500VDC voltage systems. These products utilize gas filling and ceramic sealing technology for excellent arc extinguishing performance. ECPN and ECPS are the latest series, incorporating TE proprietary patented technologies, delivering exceptionally high system safety and reliability.
Product Features
-
Relay & Contactor Type : General Purpose Contactor | High Voltage Contactor
-
Contact Current Rating (A): 40 | 350 | 500 | 800
-
Coil Magnetic System : Polarized, Monostable
-
Contact Arrangement : 1 Form X (DM) | 1 Form X SPST-NO-DM
-
Current Type : DC
Overview
The ECP N/S series is specifically designed for BESS, high-power vehicle charging, electric marine vessels, and data centers. Built on ceramic-sealed, hydrogen-filled technology, it incorporates three TE patents to deliver ultimate safety during emergency breaking and a long electrical life. The ECPS series offers a compact size while maintaining the same performance standards. The ECPN platform can also be flexibly extended to support 2000V and 2500V applications.
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Relay & Contactor Type General Purpose Contactor | High Voltage Contactor
Configuration Features
-
Relay Options Energy Saving Intelligence Feature
-
Auxiliary Switch Contact Arrangement 1 Form A, SPST-NO | Without
-
Phase Single
-
Contact Special Features Bridging Contacts
-
Coil Special Features Internal Coil Switch
-
Contact Arrangement 1 Form X (DM) | 1 Form X SPST-NO-DM
-
Contact Number of Poles 1
Electrical Characteristics
-
Contact Limiting Breaking Current (A) 2000
-
Contact Limiting Continuous Current (A) 350 | 500 | 800
-
Insulation Initial Resistance (MΩ) 1000
-
Coil Current (A) .208 | .416
-
Coil Power Rating Economized (Min) (mW) 5000
-
Contact Switching Load (Min) 100mA @ 12V
-
Insulation Initial Dielectric Between Open Contacts (Vrms) 5400
-
Contact Switching Voltage (Max) (VDC) 1500
-
Contact Current Rating (A) 40 | 350 | 500 | 800
-
Coil Voltage Rating (VDC) 12 | 24
-
Coil Power Rating DC (W) 3 | 5
-
Insulation Initial Dielectric Between Contacts & Coil (Vrms) 5400
Body Features
-
Primary Product Color Gray
-
Product Weight (g) 1093.67 | 1097.76 | 1112.89 | 1116.98
-
Enclosure Type Hermetically Sealed
Contact Features
-
Contact Material Copper
Termination Features
-
Auxiliary Termination & Connection Type Flying Lead
-
Main Termination & Connection Type M3 Female | M6 Female | M8 Male | Screw Terminals
-
Coil Termination & Connection Type Flying Leads
Mechanical Attachment
-
Torque (Main) (in-lbs) 7 – 88.5
-
Product Mounting Feature Type Flange with Mounting Holes | Mounting Hole | Mounting Plate | Screw
-
Product Mount Type Panel Mount
Dimensions
-
Product Height (mm) 107.9
-
Coil Wire Length (mm) 390
-
Product Height (mm) 107.9
-
Product Length (mm) 72 | 104
-
Product Length (in) 2.834 | 4.094
-
Product Width (mm) 32.6 | 70 | 75.5
-
Product Width (in) 1.283 | 2.972
-
Insulation Clearance Between Contact & Coil (mm) 8
-
Wire Size (AWG) 20
Usage Conditions
-
Operating Temperature Range -40 – 85 °C [ -40 – 185 °F ]
-
Environmental Ambient Temperature (Max) 85 °C [ 185 °F ]
Operation/Application
-
Repeatability (Max) ±15%
-
Timing Range (Off-Time) (seconds) 1 – 30
-
Coil Magnetic System Polarized, Monostable
-
Current Type DC
Industry Standards
-
IP Rating IP00
Packaging Features
-
Packaging Method Box & Carton
Other
-
Coil Power Rating Class (W) >1.5 – ≤3 | >3 – ≤10
-
Contact Current Class (A) >500 | >200 – ≤500 | >32 – ≤50
-
Height Class (Mechanical) (mm) >45 – ≤70 | >70
-
Height Class (Mechanical) (in) >1.772 – ≤2.756 | >2.756
-
Length Class (Mechanical) >70 mm [ >2.756 in ]
-
Width Class (Mechanical) (mm) >22 – ≤33 | >33
-
Width Class (Mechanical) (in) >.866 – ≤1.299 | >1.299
