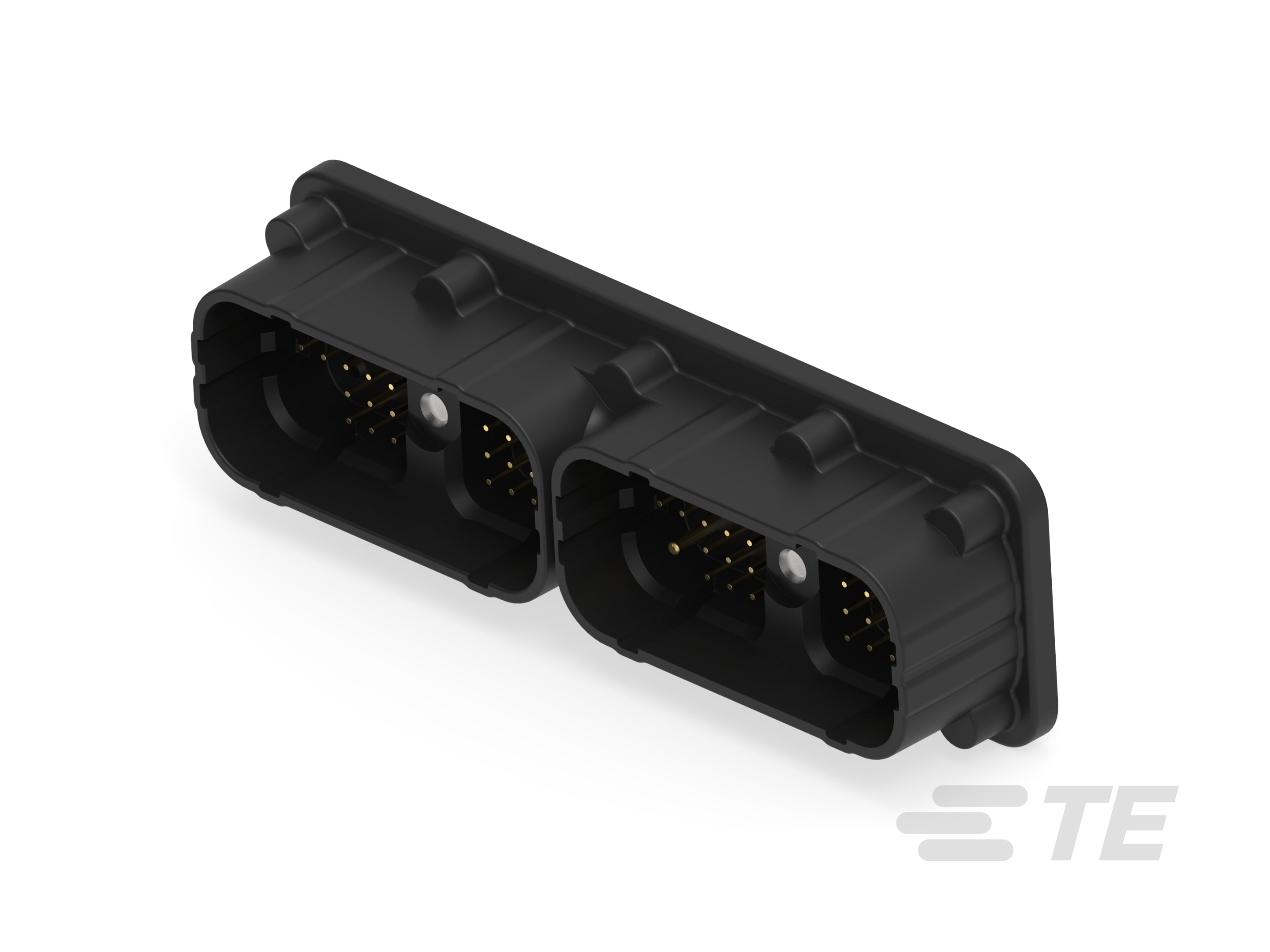

Name: HDR, 75P, BLK, ST, AU/NI/CU, 12/20 ,0102
Brand: DEUTSCH

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Header Type : Fully Shrouded
Mixed & Hybrid Header : No
Connector Product Type : Connector Assembly
Sealable : Yes
Connector System : Wire-to-Board
Connector & Contact Terminates To : Wire & Cable

Configuration Features

Number of Sections : 4
Number of Signal Positions : 68
PCB Mount Orientation : Vertical
Number of Positions : 75
Number of Rows : 5

Electrical Characteristics

Nominal Voltage Architecture (V): 12 | 24
Voltage Rating (Max) (VDC): 250
Voltage Rating (Max) (VAC): 250
Operating Voltage (VDC): 250
Operating Voltage (VAC): 250

Body Features

Connector & Keying Code : 0102
Primary Product Color : Black

Contact Features

Contact Type : Pin
Mating Pin Diameter (mm): 1.02 | 2.39
Mating Pin Diameter (in): .04 | .094
Contact Current Rating (Max) (A): 7.5 | 25
Contact Mating Area Plating Material : Gold (Au)

Termination Features

Termination Method to PCB : Through Hole - Solder

Mechanical Attachment

PCB Mount Alignment : With
Mating Alignment : Without
PCB Mount Retention Type : Mounting Screw
Mounting Holes : With
PCB Mount Retention : With
Mating Retention Type : Locking Interface
Panel Mount Feature : With
Connector Mounting Type : Board Mount

Housing Features

Centerline (Pitch) : 4.42 mm [ .174 in ]

Dimensions

Connector Length : 46.41 mm [ 1.827 in ]
Profile Height from PCB : 28.32 mm [ 1.115 in ]
PCB Thickness (Recommended) : .78 – 2.36 mm [ .031 – .093 in ]
Connector Width : 144.42 mm [ 5.686 in ]

Usage Conditions

Operating Temperature (Max) : 125 °C [ 257 °F ]
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

Shielded : No
Circuit Application : Power & Signal

Industry Standards

UL Flammability Rating : UL 94V-0
IP Rating : Not Tested

Packaging Features

Packaging Method : Box
Packaging Quantity : 60

DRC20-75P0102

Vertical, Wire-to-Board, 75 Position, 5 Rows, 4.42mm [.174in] Centerline, Gold (Au), Sealable, Wire & Cable, DEUTSCH DRC

DRC20-75P0102

Vertical, Wire-to-Board, 75 Position, 5 Rows, 4.42mm [.174in] Centerline, Gold (Au), Sealable, Wire & Cable, DEUTSCH DRC

PCB Mount Orientation : Vertical

Contact Current Rating (Max) (A): 7.5 | 25

Termination Method to PCB : Through Hole - Solder

Sealable : Yes

Centerline (Pitch) : 4.42 mm [ .174 in ]
