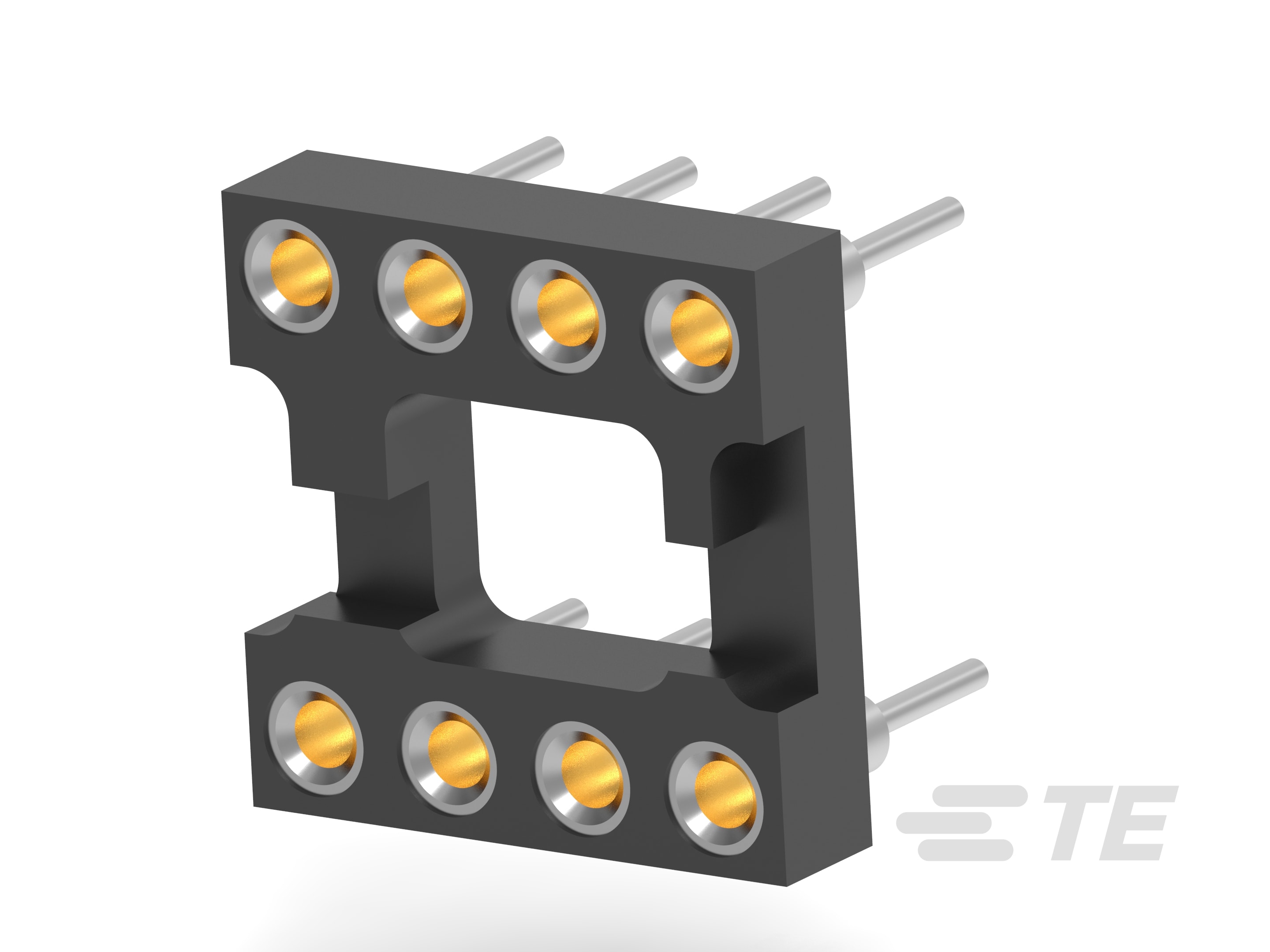

DIP Socket: Standard, Stamped & Formed, Open, Tin

DIP Socket: Standard, Stamped & Formed, Open, Tin-CAT-D625-800072
DIP Socket standard profile connector having an open frame stamped & formed type fabrication with vertical PCB mount orientation and has a centerline pitch of 2.54 mm. Contact mating area plated with tin.
More Less

Product Features

  • Contact Fabrication: Stamped & Formed

  • Connector Profile: Standard

  • Row-to-Row Spacing(mm): 15.24

  • Leg Style: Through Hole

  • Contact Mating Area Plating Material: Tin

Available from

LADD Inc

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector System  Board-to-Component

  • Leg Style  Through Hole

Configuration Features

  • PCB Mount Orientation  Vertical

  • Number of Rows  2

  • Number of Positions  8, 14, 16, 18, 20, 24, 28, 32, 40

Electrical Characteristics

Body Features

  • Connector Profile  Standard

  • Frame Style  Ladder, Open

  • Sleeve Plating Material  Tin, Tin/Lead

  • Sleeve Material  Brass, Brass/Copper, Copper

Contact Features

  • Contact Base Material  Beryllium Copper, Phosphor Bronze

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Type  Pin

  • IC Socket Type  DIP

  • Contact Fabrication  Stamped & Formed

  • Contact Mating Area Plating Material  Tin

  • Contact Mating Area Plating Material Thickness (µin) 25, 60, 80 – 200

  • Contact Current Rating (Max) (A) 1, 3

  • Mating Contact Type  Dual Leaf, Four-Fingered

Termination Features

  • Termination Method to Printed Circuit Board  Through Hole - Solder

  • Termination Post & Tail Length (mm) 3, 3.18

  • Termination Post & Tail Length (in) .118, .125

Mechanical Attachment

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

  • Mating Alignment Type  Polarization

Housing Features

  • Centerline (Pitch)  2.54 mm [ .1 in ]

  • Housing Color  Black

  • Housing Material  PBT GF30, Polyester, Thermoplastic, Thermoplastic Polyester

Dimensions

  • Product Length (mm) 10.16, 20.32, 25.4, 30.48, 35.56

  • Product Length (in) .4, .8, 1, 1.2, 1.4

  • Profile Height from PCB (mm) 2.67, 5.1

  • Profile Height from PCB (in) .105, .2

  • Row-to-Row Spacing (mm) 15.24, 7.62

  • Row-to-Row Spacing (in) .3, .6

Usage Conditions

  • Operating Temperature Range (°C) -55 – 105, -40 – 105

  • Operating Temperature Range (°F) -67 – 221, -40 – 221

Operation/Application

  • Circuit Application  Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Method  Box & Tube, Tube

  • Packaging Quantity  17, 20, 24, 30, 60

  • Tubes per Box  100, 160

Other

  • Quantity per Tube  17, 24, 30, 60

Reference Number

  • TE Internal Number CAT-D625-800072
